Home /Products/Video Digital Optical Converter/8ch Port 1080p AHD CVI TVI Fiber Optical HD Video Converter with 20km Transmission BNC Extender

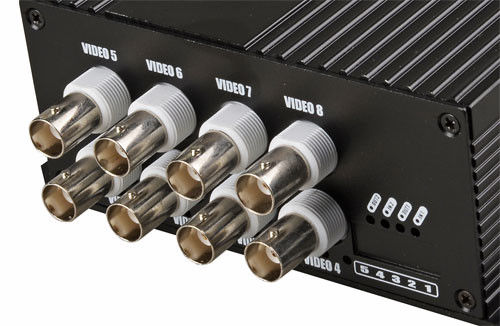

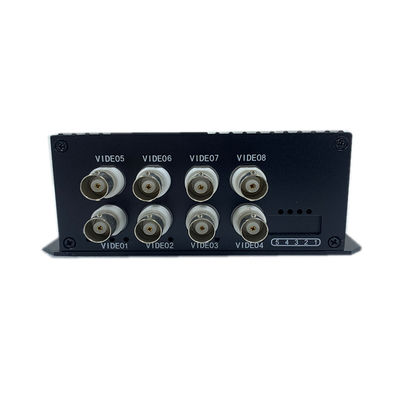

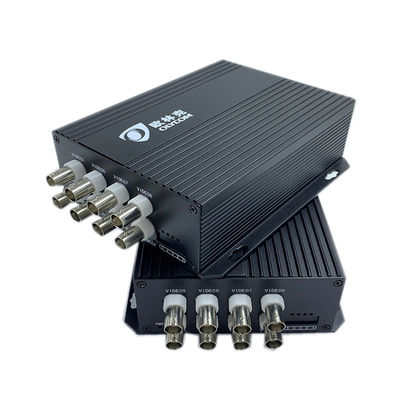

8ch Port 1080p AHD CVI TVI Fiber Optical HD Video Converter with 20km Transmission BNC Extender

1 pc
MOQ
Negotiable
Price
8ch Port 1080p AHD CVI TVI Fiber Optical HD Video Converter with 20km Transmission BNC Extender
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Wavelength: 1310nm/1550nm
Video Interface: BNC
Operating Voltage: DC 5V1A
Dimension-standalone: 179mm ×130.5mm ×50mm
Certificaiton: CE FCC ROHS Compliance
Brand: Olycom/customized/no Brand
Optical Interface: FC Standard, ST/SC Optional
Highlight:

Fiber Optical Hd Video Converter

,

1080p Fiber Optical Hd Video Converter
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM610-8V↑WT/R
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description
Fiber Optical HD Video Converter - 8CH Port 1080p AHD CVI TVI 20km BNC Extender
The OM610-8V↑WT/R optical video transmitter and receiver system transmits 8 channels of video signals over optical fiber, supporting distances up to 20km on single-mode fiber and 1km on multimode fiber.
Product Overview
This advanced fiber optical HD video converter enables high-quality 1080p video transmission for AHD, CVI, and TVI surveillance systems. The 8-channel BNC extender provides reliable long-distance video transport with exceptional signal integrity.
Technical Specifications
Optical Specifications
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic Fiber Single mode (9/125um) 20Km, multimode (50/125um) 1Km, (62.5/125um) 500m
Receiving Sensitivity -30dBm
Interface FC standard, ST/SC optional
Video Specifications
Channel Quantity 8ch, from camera to control center
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain < ±1%
Differential Phase < ±1
S/N Ratio >60dB(weighting)(8 bit)
Interface BNC
Electrical, Environmental & Mechanical
Operating Voltage DC 5V1A
Operating Temperature -20℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 0~95% non-condensing
Dimension - Standalone 179mm × 130.5mm × 50mm
Weight 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight)
Application Scenarios
  • Expressway security protection and toll station systems
  • City traffic monitoring systems
  • Building and campus monitoring systems
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasium (live video and audio transmission)
8ch Port 1080p AHD CVI TVI Fiber Optical HD Video Converter with 20km Transmission BNC Extender 0
Packaging Information
Products are securely packaged in ESD bags with PE foam protection and outer carton packaging. Standard packing includes the main device, warranty card, and user manual.
  • Packing box dimension for 1pc: 30.6*20.2*8cm
  • 16pcs in a packing box of 67*33*47cm dimension
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the production lead time?
3-5 days for sample preparation, 8-10 working days for mass production.
Is there a minimum order quantity?
Low MOQ available - 1pc for sample checking is acceptable.
How are goods shipped and delivered?
Shipment via DHL, UPS, FedEx or TNT takes 3-5 days. Airline and sea shipping also available.
What is your quality assurance policy?
Our products undergo strict quality control with a defective rate of less than 0.2%.
Core Value & Technical Advantages
  • Enables long-distance attenuation-free transmission of analog video signals (20-80km single-mode, 500m-2km multi-mode)
  • Provides complete EMI/RFI immunity with industrial-grade lightning/surge/ESD protection
  • Features uncompressed point-to-point transmission with ultra-low latency (<1ms)
  • Maintains seamless compatibility with legacy analog devices via BNC interface
  • Supports multi-service integrated transmission over single fiber infrastructure
