Name: Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FP288GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 8 Port Gigabit Manageable PoE Switch

Fiber: 2*100M/1G/2.5G

Ethernet: 8*10/100/1000Mbps

PoE Distance: 100-meter

Chip: Vitesse

Input Power: 48-52VDC

Customization: Support

Application: CCTV Security, Telecom

Highlight:

Managed Industrial POE Fiber Switch

1000Mbps POE Fiber Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, ROHS, FCC

Model Number: IM-FP288GW

Document: Managed Switch User Manual.pdf

Payment & Shipping Terms

Packaging Details: 1pc in box, 0.9Kg gross weight

Delivery Time: 3-5 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs per month

Gallery

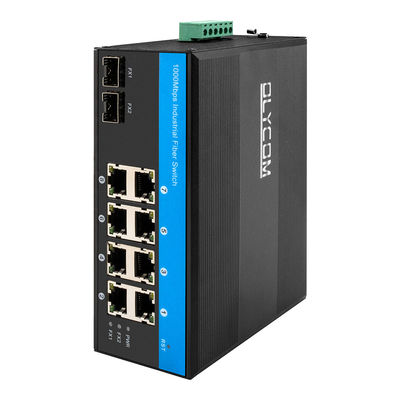

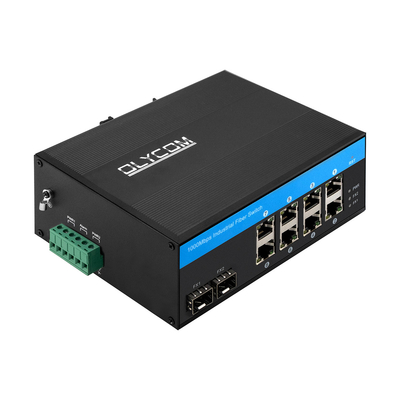

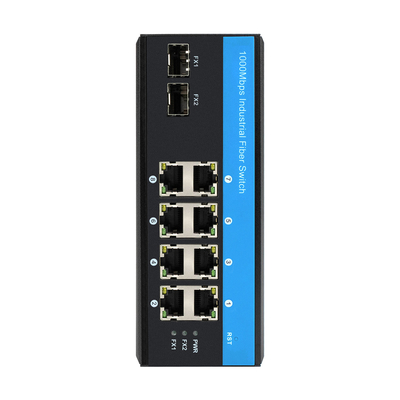

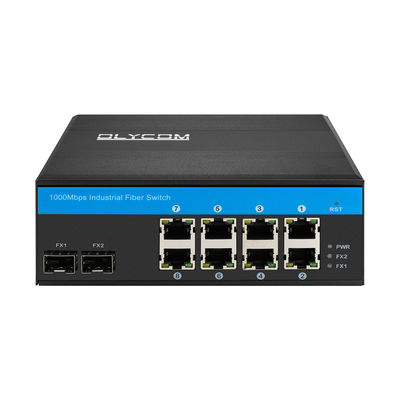

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed

Product Description

8-Port Layer 2 Manageable 2.5G PoE Switch

Technical Data of 2.5G Fiber Switch

Product Name	10/100/1000Mbps Managed Industrial PoE Fiber Switch(2F+8TP)
Model No.	IM-FP288GW
Port	2100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 810/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol	IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at
Switching Features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 26Gbps(non-traffic jam) Forwarding rate: 19.344Mpps DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network, fiber PWR: Power Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s) Fiber: FX1/FX2
Power Supply	Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~8) Max budget: 240W Reverse connection: support
PoE Wiring	PoE af/at: 1/2(V+), 3/6(V-)

Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 15811560mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty	3 years, lifetime technical support

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed 0

Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 100/1000/2500Mbps SFP fiber port
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Meet IP40 protection degree and EMC industrial grade requirements
DIN rail or Wall installations
Power range up to 100 meters
Comply with FCC and CE standards
Operating environment temperature: -40°C～75°C

Web GUI Features

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed 1

Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL

Application

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed 2

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed 3

Accessory

Industrial Optical Module
OSPL1E06D-85	100BASE-FX(850nm)
OSPL1E06D	100BASE-FX
OSPL1E20D	100BASE-LX
OSPL1E40D	100BASE-EX
OSBL1E20D-35	100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53	100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D	1000BASE-SX
OSPL1G06D	1000BASE-SX(1310nm)
OSPL1G20D	1000BASE-LX
OSPL1G40D	1000BASE-EX
OSBL1G20D-35	1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53	1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, -40～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, -40～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, -40～70℃

FAQ

1, What chip is it based?

Olycom: Vitesse

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes

For LAN ports, they are 10/100/1000M auto-sensing

For Fiber ports, please configure 100Mbps speed via Web GUI or CLI

4, Can I shut down PoE function for some ports when necessary?

A: Yes

All the PoE managed switches in this series support PoE management

Please just set PoE status via Web GUI or CLI

5, Do you do SKD/CKD?

A: Yes

As a factory, we have dealt with this many times.

Industrial Managed PoE Switch 8 Port 2.5G Fiber 15.4W/30W PSE 240W Budget L2 Managed 4
