D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection

1pc
MOQ
negotiable
Price
D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Optical Bypass Switch
Connector: SC
Weight: 350g
Mounting Type: Din Rail, Wall Or Desktop
Power Input: DC9V~DC52V
Switching Time: ≤10 Ms
Products Status: Stock
Operating Voltage: 3.3V-5V
Highlight:

Industrial Fiber Bypass Switch

,

DC24v Fiber Bypass Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM-FBS-22-SC
Payment & Shipping Terms
Packaging Details: 1 piece in a carton, 0.5kg
Delivery Time: 4~8 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection


Key Features of Fiber bypass switch



  • The Fiber Bypass has the characteristics of low loss, high stability and high reliability.
  • For different optical path needs, optical switch modules can be customized to meet the optical path needs of complex test systems and improve product test efficiency.
  • It is an indispensable core product for the monitoring and protection of optical communication system, which can be connected to high-density optical communication systems.


Specification of Optical Bypass Switch


Product Name

D2*2B Bypass Switch

Power Interface Standard industrial terminal block.
Polarity Protection Support
Optical Fiber Interface SC
Wavelength Range 850±40/1300±40nm; 1260~1650nm
Test Wavelength 850/1300nm; 1310/1550nm
Insert Loss Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB
Return Loss MM≥30 dB SM≥50 dB
Channel Crosstalk MM≥35 dB SM≥55 dB
Polarization Loss ≤0.05 dB
Wavelength Loss ≤0.05 dB
Temperature Loss ≤0.05 dB
Repeatability ≤0.05 dB
Service life ≥100000000 times
Switching time ≤10 ms
Transmission optical power ≤500 mw
Environment

Working temperature:-20°~ 70°C
Storage temperature:-40°~ 85°C


Connection diagram of Optical Fiber Bypass



D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection 0


Applicaiion


D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection 1

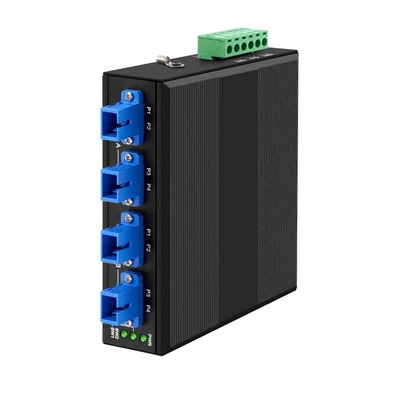

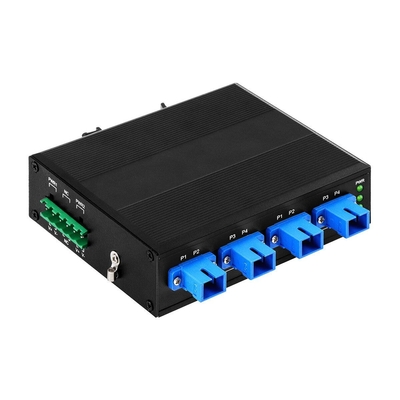

Actual Photos of Bypass fiber switch

D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection 2
D2*2B SM MM Industrial Fiber Bypass Switch SC Connector DC24v For Protection 3

Packing List:


· 1pc optical fiber bypass switch
· 1pc user manual
· 1pc warranty card


 FAQ:



1 Q: What is your lead time?

A:It usually takes 3~5 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
