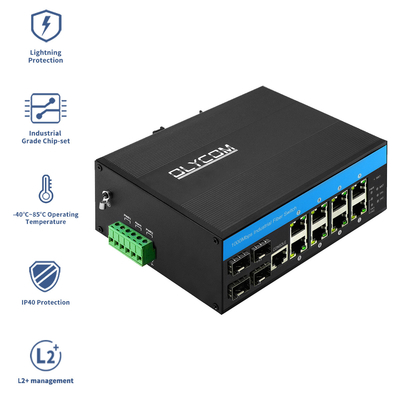

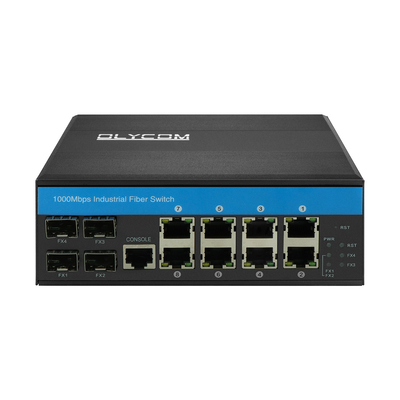

12 Port Managed DC48v Industrial Poe Switch Din Rail Gigabit Ethernet Fiber Switch

1 pc
12 Port Managed DC48v Industrial Poe Switch Din Rail Gigabit Ethernet Fiber Switch
Features Gallery Product Description Request A Quote
Power Input: DC 48-52V Redundant Power
Fiber Port Type: MM,up To 2km; SM, Up To 120km
Product Name: Managed Industrial POE Fiber Switch

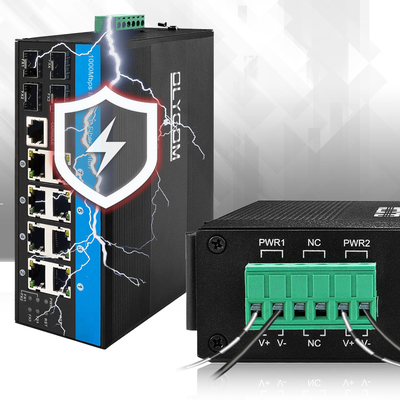

Surge Protection: ±4KV
Applciation: Traffic Control And Transportation
Data Rate: 1000M
Housing: IP40 Protection Grade, DIN Rail Type
High Light:

Managed Industrial Poe Switch


DC48v Industrial Poe Switch


Din Rail Gigabit Ethernet Fiber Switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP488GW
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

12 port managed Dc48v Industrial Poe Switch Gigabit Ethernet Fiber switch Din Rail


IM-FP488GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Specification of Industrial Full Gigabit Switch


Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (4F+8TP)
Model No. IM-FP488GW

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

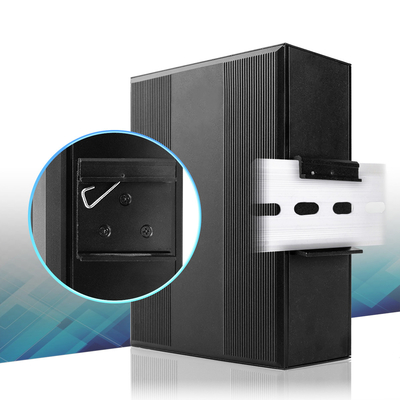

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 3 years repairing



12 Port Managed DC48v Industrial Poe Switch Din Rail Gigabit Ethernet Fiber Switch 0

Packing box of Din rail managed switch


12 Port Managed DC48v Industrial Poe Switch Din Rail Gigabit Ethernet Fiber Switch 1

  1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

  2. The standard packing usually contains a main device, a warranty card and a user manual.
  3. Packing box dimension for 1pc: 158*115*60mm
  4. 20pcs in a packing box of 55.5*40*41cm dimension.



Q1: Can i get a lower price? Any discount?
A1: Yes, we can offer discount for large quantity.
Q2: Can i get a free sample?
A2: Sorry, our sample is not for free.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ?
A4: MOQ is 1PC
Q5: Warranty and after-sales issues.
A5: All our goods are 3 years warranty and our engineer will be online for any after-sales questions.
