Name: 4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FP244FE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Industrial PoE Switch 4 Port

Fiber: 2*100M SFP Slots

Copper: 4*10/100M RJ45/PoE

PoE Protocol: Auto-sensing 15.4W/30W

PoE Distance: 100-meter

Customization: Support

Highlight:

Two SFP Din Mount Poe Switch

1000 Mbps Din Mount Poe Switch

CCTV System IP Camera Poe Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, FCC, RoHS

Model Number: IM-FP244FE

Document: IM-WP054BGE.pdf

Payment & Shipping Terms

Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.

Delivery Time: 3-5 days

Payment Terms: T/T, Paypal

Supply Ability: 1000 units per month

Gallery

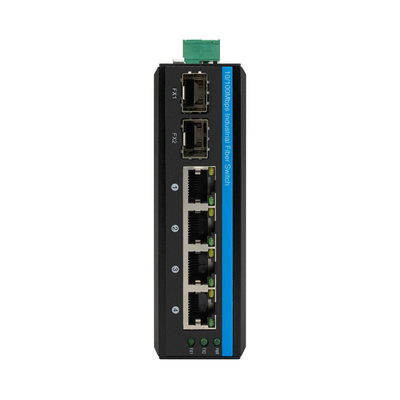

4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC

Product Description

10/100Mbps Industrial CCTV PoE Switch 4 Port

Introduction to Fast Ethernet Switch

We are pleased to offer the IM-FP244FE, a highly capable industrial PoE fiber switch that boasts reliable and efficient performance for your automation system.
Compliant with IEEE802.3af/at
Easily power PoE IP cameras via the Ethernet cable
Made for seamless and straightforward construction
With a power range of up to 100 meters, the IM-FP244FE can operate in extreme temperatures ranging from -40 ℃ to +75 ℃, meeting the IP40 protection degree and EMC industrial grade requirements.
Furthermore, with DIN rail installation and certification for dangerous environmental conditions, our industrial grade design ensures a continuous and stable operation.
To top it off, the IM-FP244FE also complies with FCC and CE standards, giving you peace of mind in its quality and safety.

Specification of 4 Port Network Switch

Product Name	10/100Mbps Industrial PoE Fiber Switch(2F+4TP)
Model No.	IM-FP244FE
Port	2x100M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+)
Switching Features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 1.2Gbps (non-traffic jam) Forwarding rate: 1.7856Mmps MAC: 4K Packet buffer size: 1.75Mb
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, Fiber, Network, PoE PWR: Power Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected) Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps
Power Supply	PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~4) Total budget: 120W PoE output voltage: 48V Reverse connection: support
PoE Wiring	1/2 (V+), 3/6 (V-)
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 1149335mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty	3 years, lifetime technical support

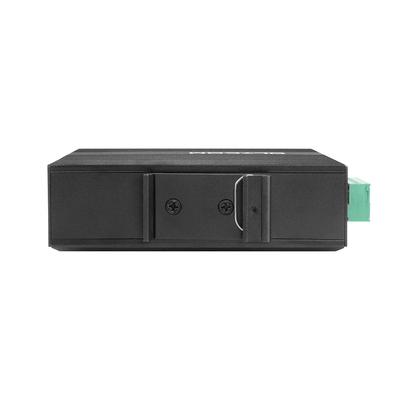

4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC 0

FAQ of Hardened PoE Switch

Q: Is this the standard PoE?

A: Yes, we support IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

Q: What is the warranty time?

A: One year for HD video optical converter, normal switch, fiber media converter, network booster. Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.

Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.

Application of CCTV PoE Switch

4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC 1

Photos

4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC 2

4 Port PoE Switch Industrial Fast Ethernet Unmanaged SFP Fiber 120W Budget CE FCC 3
