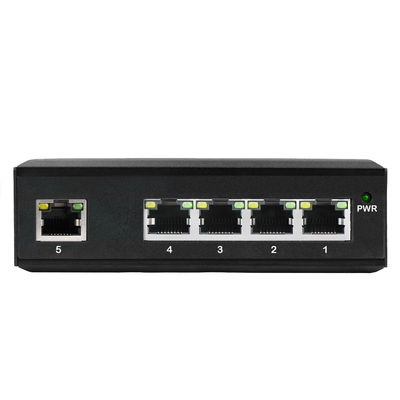

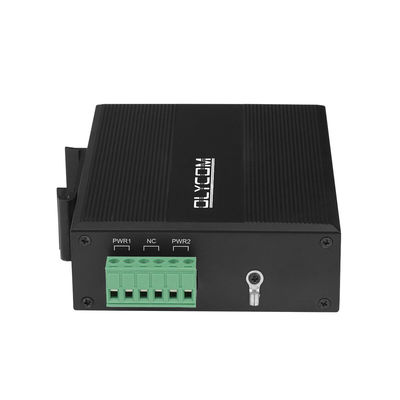

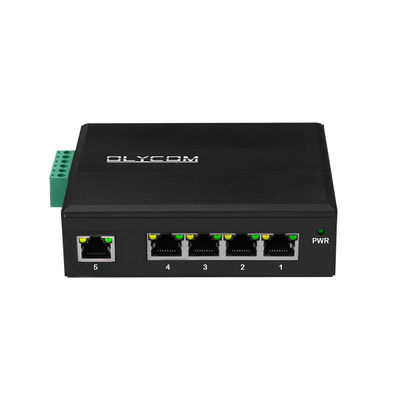

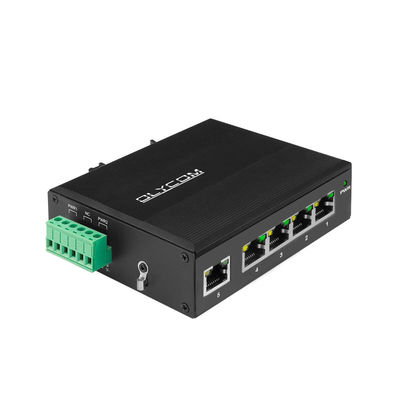

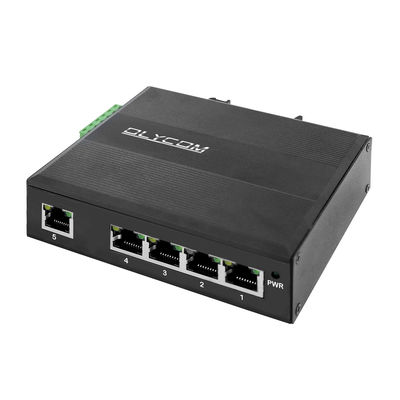

5 Port RJ45 Gigabit Unmanaged Industrial Ethernet Switch with IP40 E-Mark and Din-Rail Mounting

1 pc
MOQ
Negotiable
Price
5 Port RJ45 Gigabit Unmanaged Industrial Ethernet Switch with IP40 E-Mark and Din-Rail Mounting
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power Supply: DC 12-52V
Working Temperature: -45~75℃
Product Name: 5 Port Industrial Ethernet Swtich
Dimension: 113.8 X 93 X 34.9mm
Applciation: Traffic Control And Transportation
Highlight:

5 port unmanaged gigabit ethernet switch

,

rj45 unmanaged gigabit ethernet switch

,

ip40 5 port gigabit switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE E-mark
Model Number: IM-FS050GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
5 Port RJ45 Unmanaged Gigabit Ethernet Switch
IP40 E-Mark DIN-Rail Industrial Ethernet Switch with robust performance for harsh environments
Key Features
  • 5 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 6 KV Ethernet surge protection for harsh outdoor environments
  • Auto MDI/MDIX support
  • Flow control: full duplex with IEEE 802.3x, half-duplex with Back pressure
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • Store-and-forward switching mechanism
  • Operating temperature: -40°C to 75°C
Technical Specifications
Product Name10/100/1000Mbps Industrial Ethernet Switch (5TP)
Model No.IM-FS050GE
Ports1 x 10/100/1000Mbps uplink network port, 4 x 10/100/1000M UTP RJ45 (MDI/MDIX auto-sensing)
Switching FeaturesTransmission mode: store and forward, System bandwidth: 10Gbps (non-blocking)
Network Media10BASE-T: CAT3, CAT4, CAT5 UTP (≤100m), 100/1000BASE-TX: CAT5 or above STP (≤100m)
LEDsPower, Network
Power SupplyInput voltage: DC 12-52V, No-load power: 5W, Reverse connection protection
EnvironmentWorking temperature: -40°C to 75°C, Storage temperature: -40°C to 85°C, Humidity: 10%-90% non-condensing
Industry StandardsEMI: FCC Part 15 Class A, EN 55022 Class A; EMS: EN 61000-4-2/3/4/5/6/8; Vibration: IEC 60068-2-6; Rail Traffic: EN 50121-4
SafetyCE Mark, Commercial, E-mark CE/LVD EN60950
Mechanical InformationShell: Corrugated metal, Safety class: IP40, Dimensions: 114 x 93 x 35mm, Mounting: DIN-rail
Warranty3 years
Application of E-Mark Certified Ethernet Switch
5 Port RJ45 Gigabit Unmanaged Industrial Ethernet Switch with IP40 E-Mark and Din-Rail Mounting 0
Dimension of 5-Port Gigabit Switch
5 Port RJ45 Gigabit Unmanaged Industrial Ethernet Switch with IP40 E-Mark and Din-Rail Mounting 1
Packaging Information
5 Port RJ45 Gigabit Unmanaged Industrial Ethernet Switch with IP40 E-Mark and Din-Rail Mounting 2
  • Product packaged in ESD bag with PE foam and outer carton
  • Standard packing includes main device, warranty card, and user manual
  • Single unit box dimensions: 23*16.5*5.8cm
  • Bulk packaging: 40 units per box (67*33*47cm)
Frequently Asked Questions
What is your lead time?
Production typically takes 2-4 working days before shipment.
How will you send my goods?
We ship via DHL, TNT, UPS or FedEx with tracking numbers provided.
What is your minimum order quantity?
MOQ is 1 piece based on USD or EUR terms.
What about pricing?
We use quality components and offer competitive pricing for large and repeat orders.
What is the warranty period?
1 year for commercial products and 3 years for industrial products with free technical support.
