IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input

1pc
MOQ
Negotiable
Price
IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 8 Port E-Mark GbE Switch
Speed: 10/100/1000Mbps Auto-sensing
Application: Vehicle Network
Dimension: 158*115*60mm
Weight: 0.75kg Net Weight
Voltage: 12V, 24V
Highlight:

8 Port Unmanaged Ethernet Switch

,

Din Mount Unmanaged Ethernet Switch

,

Auto Sensing Industrial Network Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE ISO9001 RoHS FCC
Model Number: IM-WS080GE V2
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a box, 0.9kg gross weight
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

8 port Industrial E-mark approved Ethernet switch



Basic Information of E-Mark GbE Switch



  • Port: 8 UTP, without optical input
  • Speed: 8 x 10/100/1000Mbps auto-sensing RJ45 ports, support Auto MDI/MDIX
  • Certification: comply with FCC and CE standards, E-mark(E13) approved
  • Mounting method: din rail, wall or desktop use
  • Voltage input: DC12V~DC52V, 12V/24V are most commonly used
  • 6KV Ethernet surge protection
  • meet IP40 protection degree, metal housing
  • OEM: support, please let me know if you have any customized requirements



IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input 0



Technical Specification of E-Mark Industrial Switch



Product Name 10/100/1000Mbps Industrial Ethernet Switch ( 8TP)
Model No. IM-WS080GE
Port 8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth:16Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

Input voltage: DC12-52V

No-load power:5W

Reverse connection: support
Environment

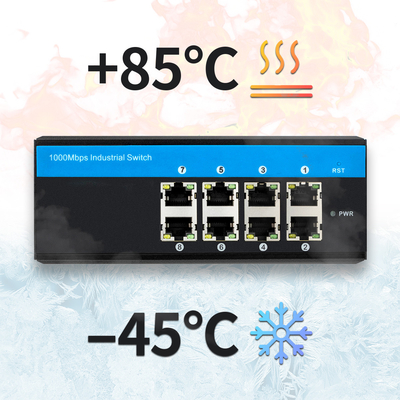

Working temperature: -40°C～75°C

Storage temperature:-40°～85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4
Safety

CE Mark, commercial, E-mark

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

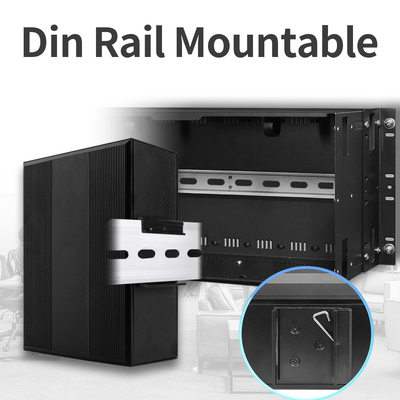

Mounting method: Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing



FAQ



1, What chip is it based?

Olycom: Realtek



2, Can I customize it?

Olycom: Yes. We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)



3, Can I connect it with 10/100M devices?

Olycom: Yes. All ports are 10/100/1000M auto-sensing



Dimension of 8 port unmanaged switch



IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input 1



Packing box of industrial ethernet switch



  1. The standard packing usually contains a main device, a warranty card and a user manual.
  2. Packing box dimension for 1pc: 25.3*20.8*8cm
  3. 20pcs in a packing box of 55.5*40*41cm dimension

IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input 2



Shipping information of hardened gigabit switch



We deliver goods by Express like DHL, UPS or FedEx, it takes around 2~4 working days to deliver an order.



IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input 3



FAQ of E-Mark certified 8 port switch



1 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



2 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



3  Q: Do you accept sample order?

A: Yes. Sample order to check our services and quality.



IM-WS080GE 8 Port E-Mark Ethernet Switch Gigabit Unmanaged Din Mounted 24V Input 4
