Name: E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-WS080GE V1
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 8 Port Gigabit E-mark Ethernet Switch

Speed: Full Gigabit

Feature: Unmanaged, Non-POE

Applciation: Traffic Control And Transportation

Voltage Input: DC12V~DC52V

Weight: 750g

Highlight:

DC9V Gigabit Ethernet Unmanaged Switch

Auto MDI Gigabit Ethernet Unmanaged Switch

DC 36V Industrial Network Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001 E-mark

Model Number: IM-WS080GE V1

Document: IM-WS080GE.pdf

Payment & Shipping Terms

Packaging Details: 1pc in a box, 0.9kg gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 2500pcs/month

Gallery

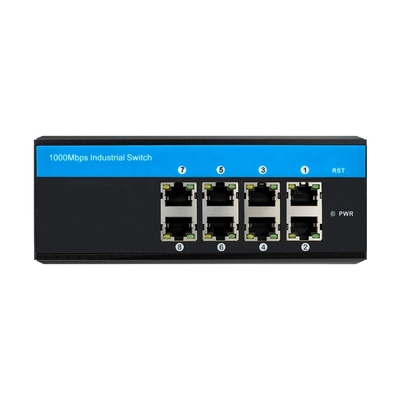

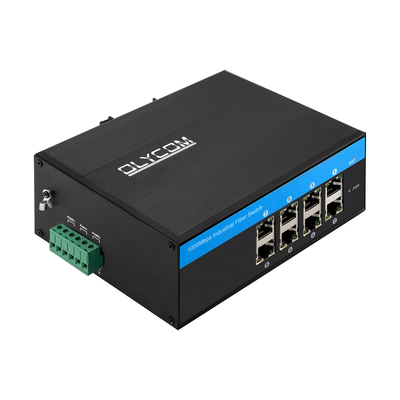

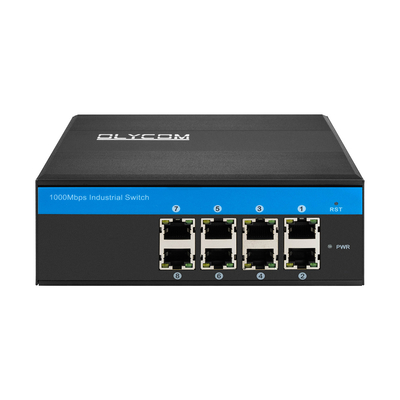

E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail

Product Description

E-mark 8-port Unmanaged Din Network Switch

Key Features of E-mark Ethernet Switch

8x 10/100/1000Mbps Auto-sensing RJ45 ports
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature: -40°C～75°C

Specification of Industrial Ethernet Switch

Product Name	10/100/1000Mbps Industrial Ethernet Switch(8TP)
Model No.	IM-WS080GE
Port	8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX)
Switching Features	Transmission mode: storage and forward System bandwidth: 16Gbps (non-traffic jam) Forwarding rate: 23.8Mmps MAC: 4K Packet buffer size: 1.75Mb
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, Network PWR: Power Copper orange: Speed indicator On:Working speed is 1000Mbps Off:Disconnected or working speed is 10/100Mbps Copper green: Link/Act indicator On:transmission is normal Blinking: in transmission Off:transmission is NOT normal
Power Supply	Input voltage: DC12-52V No-load power: 5W Reverse connection: support
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 15811560mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty	3 years, lifetime technical support

Application of E-Mark Network Switch

E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail 0

Dimensions of E-mark Industrial Network Switch

E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail 1

FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes. We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes. All ports are 10/100/1000M auto-sensing

Ordering Information

IM-WS080GE	Industrial Ethernet Switch 8*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input Ideal in vehicle network or industrial automation system
IM-WP088GE	Industrial PoE Switch 8*100/1000M, Unmanaged, PoE af/at for port 1~8, 240W budget DC48V~DC52V dual input Ideal in CCTV security system
IM-WP088BGE	Industrial PoE Switch 5*100/1000M, Unmanaged, PoE af/at for port 1~8, 240W budget DC12V~DC48V dual input With internal power booster Ideal in vehicle network or solar power system
IM-WS080GW	Industrial Managed Switch 8*100M/1000M, L2+ Managed(QoS, VLAN etc.), Non-PoE DC12V~DC52V dual input Ideal in industrial automation system

Company Profile

We manufacture and market fiber optic connectivity devices.
We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
ISO9001 Quality System
We got necessary certificates to support our products.
Full-Spectrum environment and electrical testing of all product design
Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.

E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail 2

E-Mark Industrial Network Switch 8 Port Gigabit Ethernet Unmanaged Rugged Din Rail 3
