Introduction to 24 port POE switch
OM022624-PSE-FE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply.
Key Features of Fast Ethernet Fiber Switch
Specification of 10/100M POE switch
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | Optional 300W or 450W | ||
|
Network Connector |
Network Port | PoE Ethernet Port | 1~24Port : 10/ 100Mbps |
| Ethernet port | Uplink Port : 10/ 100/1000Mbps | ||
| Fiber Port | Uplink Port : 2*1000Mbps SFP | ||
| Transmission Distance |
1~24Port : 100Mbps: 0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| SFP: depend on the SFP transceiver (20km-120km) | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard |
IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab |
|
| Switching Capacity | 12.8Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 9.5232Mpps | ||
| MAC Table | 2K | ||
| Packet Forwarding rate |
10Mbps:14880pps/port 100Mbps: 148800pps/port 1000Mbps: 1488000pps/port |
||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | End-Span(1/2+;3/6-) | ||
| PoE Power | af=15.4W,at=30W for each port | ||
| RJ45 port | Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode |
|
| LED Indicator | LED Indicator |
LINK/ACT.100Mbps; PoE Status Indicator; Power indicator;Extender |
|
| Environmental | Working temperature | 0C~55C | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20C~70C | ||
| Mechanical | Dimension (L ×W × H) | 440mm*285mm*55mm | |
| Color | Black | ||
| Weight | 4.2kg | ||
Shipping&Packing
We deliver goods by Express like DHL, UPS or FedEx.
It takes around 2~4 working days to deliver an order by DHL, UPS or FedEx.

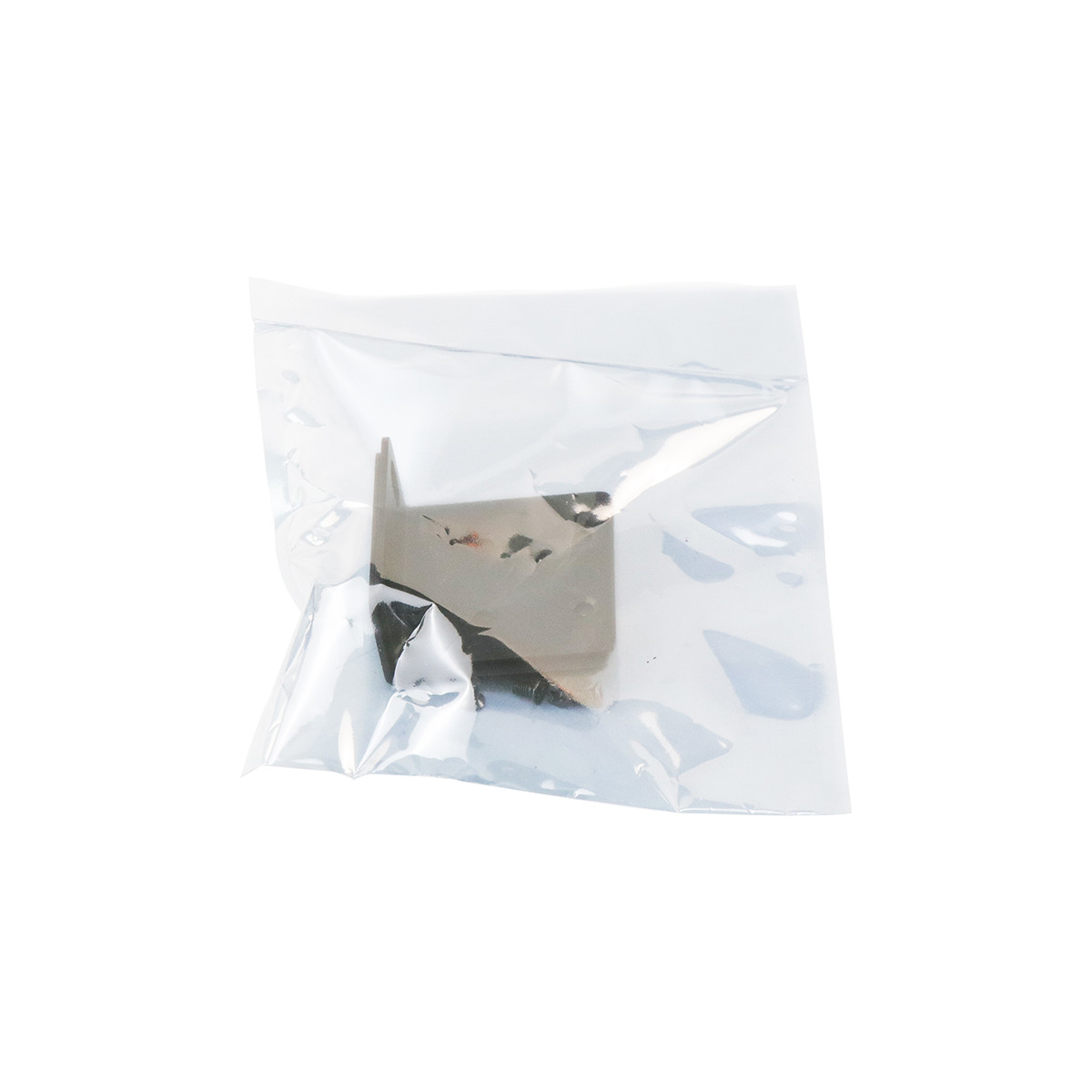

The standard packing usually contains a main device, a power cable, a warranty card and a user manual.
Packing box photo
