Specification of multi-gigabit switch
| Product Name |
10/100/1000Mbps Managed Industrial POE Fiber Switch(2F+6TP) |
| Port |
2 x 1000Mbps SFP port, 1G/2.5G both supportive
SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500 meters
6x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Switching features |
Transmission mode: Storage and forward
System bandwidth: 22Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, System, Network, PoE, Fiber, Alarm
PWR: Power, red
SYS: System, red
Network Link/Activity: Green LED
Network Data rate : Orange LED (ON for 1G)
PoE: Green Active
Fiber Link: Green
LED Alarm: Red Flashing
|
| Power supply |
POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 15.4W/30W/60W/90W (port 1~6)
Total budget: 540W
PoE output voltage: 48V
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 165 x 112 x 45.5mm
Mounting method: Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Management Software
This Vlan managed Ethernet switch adopts popular Vitesse chipset and got below managment features
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
- Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
Ring application of outdoor PoE switch

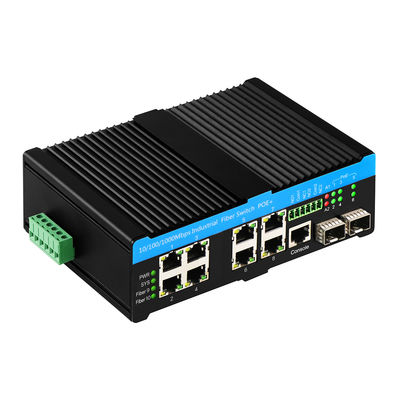

Actual Photos of sfp PoE switch
FAQ
Q: With 2 alarm ports, it is used to monitor any 2 ports working status
It is OK to monitor any 2 ports(fiber or Ethernet) via management.
management allows you to adjust the port combination.
Eg: one alarm setup is Ethernet 5 port and the other one is fiber 1 port.
Please note that, in this case if Ethernet 6 port is down, alarm port gives no response.
Q: 2*Combo ports(port 7&8)
Simply put, combo ports are 2 sets of fiber/Ethernet ports that you could only use 1 set at the same time.
Let’s say you are connecting Ethernet 7 port to a router in your office, then FX 1 is automatically disabled.
Ethernet 7&FX 1
Ethernet 8&FX 2
When you use one port in each set(2 sets total), then the other port is automatically disabled.
And as you may notice, 8 ports(fiber&Ethernet) at most are working at the same time.
This flexibly allows you to do the combination in actual application.
It could be used as
- 0 fiber + 8*Ethernet
- 1 fiber + 7* Ethernet
- 2 fiber + 6* Ethernet
Q: What is the PoE transmission distance?
100-meter. If you need farther distances, please purchase PoE extenders from us.
Do you do SKD/CKD?
Yes, we have dealt with this many times.
As a factory, we have enough energy and resources to handle this.
