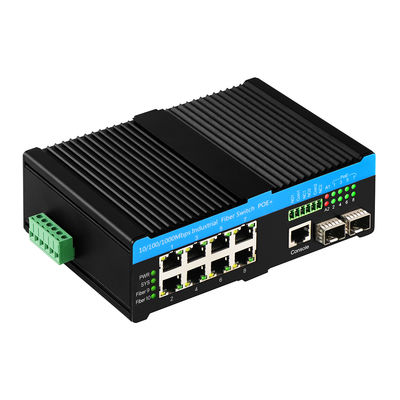

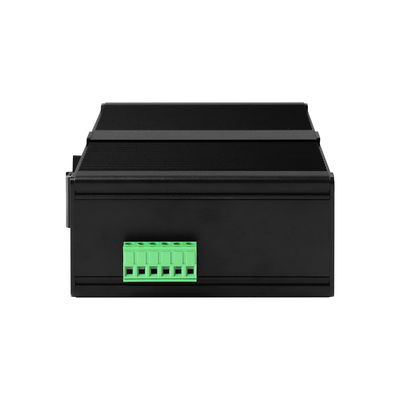

Olycom 8 Port PoE++ Network Gigabit Managed Switch
Key Features of 90-Watt PoE Switch
- 8 x 10/100/1000Mbps auto-sensing RJ45 ports, support Auto MDI/MDIX
- 2 x 100/1000/2500Mbps SFP fiber ports, 1 x CONSOLE port for managementIEEE 802.3af/at/bt (15.4W/30W/60W/90W) power on to 1 ~ 8 RJ45 ports, 720W budget
- Support POE managed, enable/disable the POE ports, set the POE power-on delay and POE output power
- Real-time display of voltage, current, power and PD level
- Support relay alarm output and alarm status light display(2 way-from dry contact)
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
Specification of poe switch hardened
| Product Name |
10/100/1000Mbps Managed Industrial POE Fiber Switch(2F+8TP) |
| Port |
2 x 1000Mpbs SFP port, 1G/2.5G both supportive
SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km;
MM: 1310nm, 2Km; 850nm, 500 meters
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Switching features |
Transmission mode: Storage and forward
System bandwidth: 26Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 57V)
Single PoE power supply output power: 90W (port 1~8)
Total budget: 720W
PoE output voltage: 48V
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 165 x 112 x 45.5mm
Mounting method: Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Management
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support Qos, transport classification Qos, Cos, bandwidth control(input/output direction), storm suppression ,differentiated services
- Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
Application of 90W BT PoE Switch
FAQ
- Max 720W POE budget, each Ethernet port supports POE af/at/bt
It is OK to adjust the POE output via management.
Eg: In one testing, you could make Ethernet port 1~8 POE bt 90W.
In another, port 1~4 POE bt 90W and port 5~8 POE at 30W or without POE.
There are usually 4 tiers of POE outputs in actual application.
15.4W/30W/60W/90W, all supported and adjustable via management.
Green when POE is working.
Off when POE is disabled.
- With 2 alarm ports, it is used to monitor any 2 ports working status
It is OK to monitor any 2 ports(fiber or Ethernet) via management.
Same as above example, management allows you to adjust the port combination.
Eg: one alarm setup is Ethernet 5 port and the other one is fiber 1 port.
Please note that, in this case if Ethernet 6 port is down, alarm port gives no response.
Another way of setup is click all ports(fiber/Ethernet), see below interface
then any port is down, the alarm port turns red.
This could be configured via STP or ERPS.
Based on 2-SFP ring(the most basic format)
6~7 switches are OK in one loop if it goes STP ring.
Principally countless ones if it is by ERPS.
It can continuously supply POE++ power to PD devices for 8 UTP ports(excluding combo ports).
This requires a min. 15A power supply if it is full-load(48V*15A=720W).
But in actual application, we do not suggest connecting too many power-hungry devices to a single switch, this will affect the stability.
