Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC

1pc
MOQ
Negotiable
Price
Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 6 Port Gigabit Unmanaged Fiber Switch
OEM: Support
Dimension: 114*93*35mm
Weight: 0.35kg
Voltage Input: DC12V/DC24V/DC48V
Rate: 10/100/1000Mbps
Highlight:

Unmanaged 24V Rugged Ethernet Switch

,

OEM Rugged Ethernet Switch

,

Rugged Industrial Network Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE ISO9001 RoHS FCC
Model Number: IM-FS240GE
Document: OLYCOM Industrial Networkin...25.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a box, 0.45kg gross weight
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3500pcs/month
Product Description

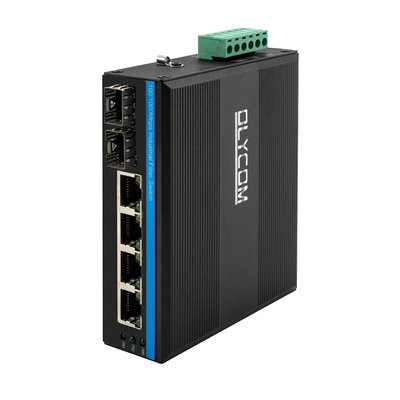

6-Port gigabit ruggedized 24V Ethernet Switch



  • Port: 2 Fiber to 4 UTP
  • Speed: 4 x 10/100/1000Mbps auto-sensing RJ45 ports, support Auto MDI/MDIX
  • Optical: 2 x 100/1000Mbps SFP fiber port, it is fine to choose 1*9 fixed module
  • Voltage input: DC24V
  • Certification: comply with FCC and CE standards

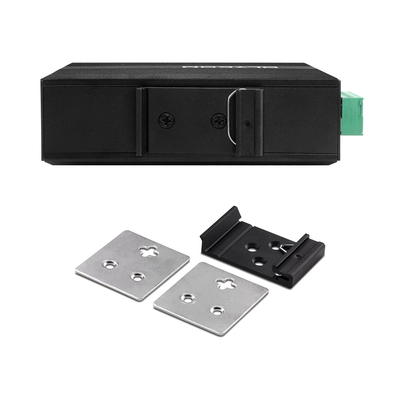

  • Mounting method: din rail, wall or desktop use
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment



Technical Information of sfp switch 4 port



Product Name 10/100/1000Mbps Industrial Fiber Switch (2F+4TP)
Port

2 x 100/1000Mpbs SFP ports

SM: 1310nm/1550nm, 20Km

1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500m

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth: 12Gbps (non-traffic jam)

Packet Forwarding Rate: 8.928Mpps

MAC: 4K

Queue Buffer: 1.75M
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs Power, network, fiber
Power supply

Input voltage: DC12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40°～ 75°C

Storage temperature: -40°～ 85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method: Din-rail mounting

Weight: 0.35kg
Warranty Replacement within 1 year; 3 years repairing



Dimension of hardened fiber switch



Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC 0

Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC 1



OEM



  • OEM and ODM service are optional.
  • OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.
  • It is OK to put your logo&model on the device or product label.



FAQ



1, is the fiber only Gigabit based?

No, it is 100/1000M auto-sensing. It also works with a 100M fiber transceiver.

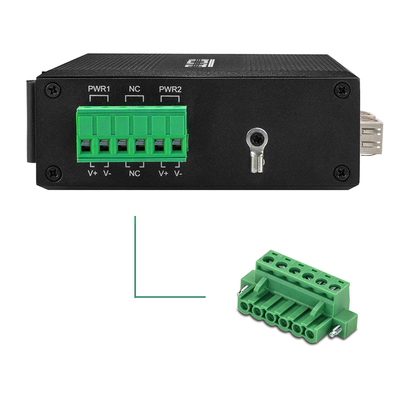

2, is it supporting redundant power input?

Yes, PWR 1 and PWR 2 are about dual input.



3, do you support customization?

Yes, we are an OEM factory, please come to us to discuss the needs.



Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC 2



Company Profile



  • We manufacture and market fiber optic connectivity devices.
  • We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
  • ISO9001 Quality System
  • We got necessary certificates to support our products.
  • Full-Spectrum environment and electrical testing of all product design



Industrial 6-Port Unmanaged Ethernet Switch 100M/1000M Auto-Sensing SFP Fiber DC24V DC 3
