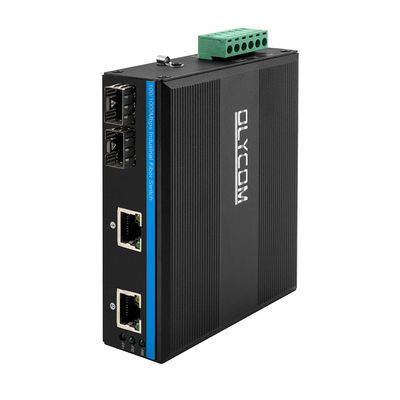

4-Port Gigabit Unmanaged Fiber Ethernet Switch 100 1000M Auto-Adaptive DIN Rail

2 x 100/1000Mpbs SFP ports

SM:1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM:1310nm,2Km; 850nm, 500-meter

2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Transmission mode: storage and forward

System bandwidth:8Gbps (non-traffic jam)

Packet Forwarding Rate:5.952Mpps

MAC:4K

Queue Buffer:1.75M

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km

Input voltage: DC12-52V

No-load power:5W

Reverse connection: support

Working temperature:-40°～75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic :EN 50121-4

CE Mark, commercial

CE/LVD EN60950

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

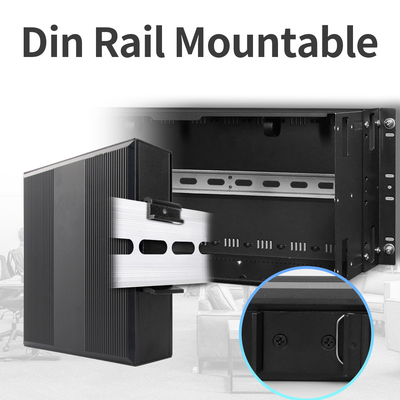

Mounting method: Din-rail mounting

Weight: 0.35kg
