16-Port Industrial Managed Fiber Switch 1G/2.5G SFP Uplinks ERPS STP MSTP RSTP Supported

1pc
MOQ
Negotiable
Price
16-Port Industrial Managed Fiber Switch 1G/2.5G SFP Uplinks ERPS STP MSTP RSTP Supported
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 8 Port Industrial Gigabit Managed Switch
Size: 158*115*60mm
Weight: 0.75kg Net Weight
Mounting: Din Rail/Wall/Desktop
Speed: 1G/2.5G
Management: Lite Layer 3
Highlight:

CAT4 Managed Fiber Switch

,

STP Managed Fiber Switch

,

EPR Industrial Managed Ethernet Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE ISO9001 RoHS FCC
Model Number: IM-FS880GW
Document: Managed Switch User Manual.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a box, 0.9kg gross weight
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description
16-Port 1G/2.5G Managed Fiber Optic Switch

Key Features of 16 port managed switch

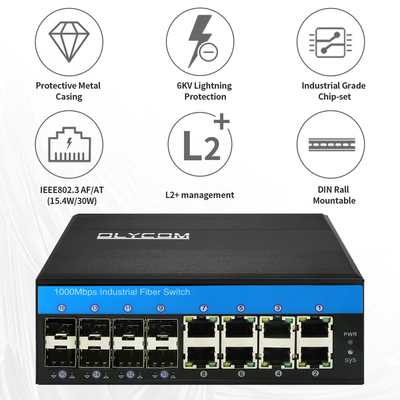

  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
  • 8 x 100M/1G/2.5G SFP fiber port

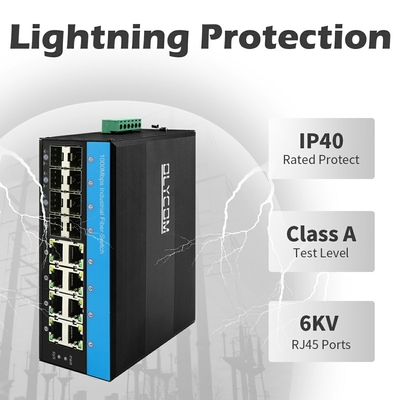

  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism

Specification of Gigabit managed switch

Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (8F+8TP)
Port

2x 100M/1G/2.5G SFP ports

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500m

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z

IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP

TU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad

IEEE802.3x, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 58Gbps(non-traffic jam)

DRAM size: 128M

Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

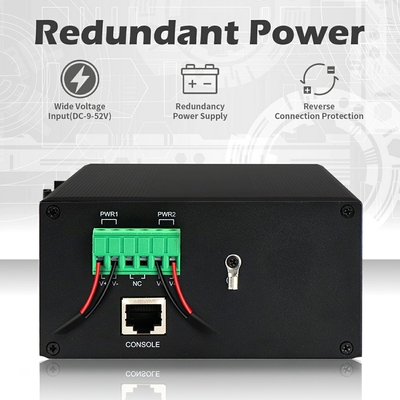

Input voltage: DC12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 115 x 60mm;

Mounting method: Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing



Management Features



16-Port Industrial Managed Fiber Switch 1G/2.5G SFP Uplinks ERPS STP MSTP RSTP Supported 0

  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN, IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching Support IGMP agent report, MLD snooping Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Application of managed fiber switch



16-Port Industrial Managed Fiber Switch 1G/2.5G SFP Uplinks ERPS STP MSTP RSTP Supported 1



FAQ



1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: What is warranty time?

A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.



4. Q: Do you have L2 or L3 switches?

A: Yes, most of our manageable switches are L2 based, we also have some layer 3 managed switches.



5. Q: Does your switch support 10G speed?

A: For some models, the fiber speed is 1G/2.5G/10G based.

We need to confirm the specifications you need and let you know.



6. Q: Do your switches support any ring protocols?

A: Yes, our switches support STP/RSTP/MSTP and ERPS for ring configuration.



16-Port Industrial Managed Fiber Switch 1G/2.5G SFP Uplinks ERPS STP MSTP RSTP Supported 2
