UTP port is auto-sensing with Auto MDI/MDI-X and supports 802.3af 802.3at POE
Specification of Rugged Ethernet Switch
| Product Name | 10/100/1000Mbps Industrial POE Ethernet Switch(5TP) |
| Port | 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth: 10Gbps(non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply |
POE power supply input voltage: 48V(max 52V), Single PoE power supply output power: 15.4W(port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature: -40°～ 85°C Storage temperature: -40°～ 85°C Working humidity: 10%～90%,non-condensing Storage humidity: 10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: EN 61000-4-2(ESD) Level 3,EN 61000-4-3(RS) Level 3, EN 61000-4-4(EFT) Level 3,EN 61000-4-5(Surge) Level 3, EN 61000-4-6(CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 114*93*35mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Application of 5 port POE switch
Dimension of Industrial network switch
Our Advantages
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5 Q: What is warranty time?
A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.

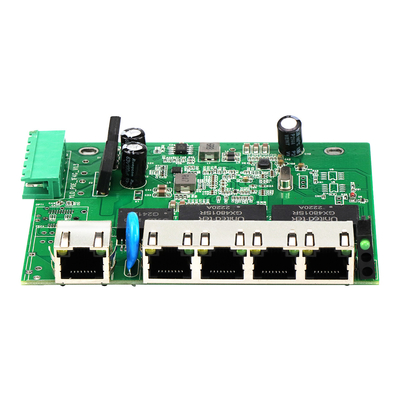

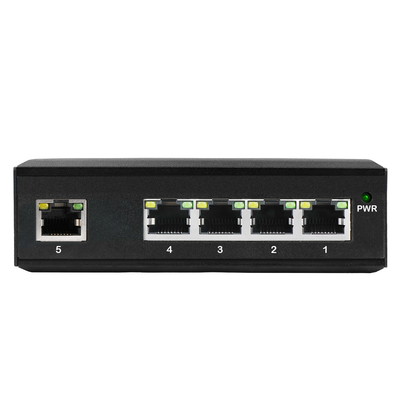

Actual Photos of din gigabit switch
