Specification of Rugged Ethernet Switch
| Product Name |

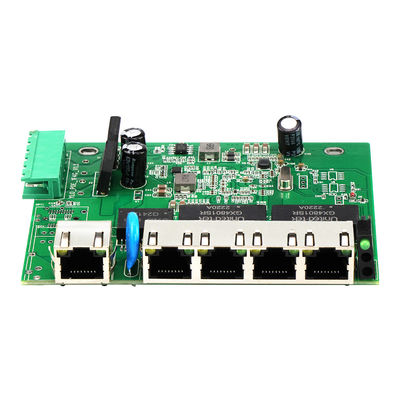

10/100/1000Mbps Industrial POE Ethernet Switch(5TP) |
| Port |
5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward
System bandwidth: 10Gbps(non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network |
| Power supply |
POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W
PoE output voltage: 48V
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 114*93*35mm
Mounting method: Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Application of 5 port POE switch
Dimension of Industrial network switch
