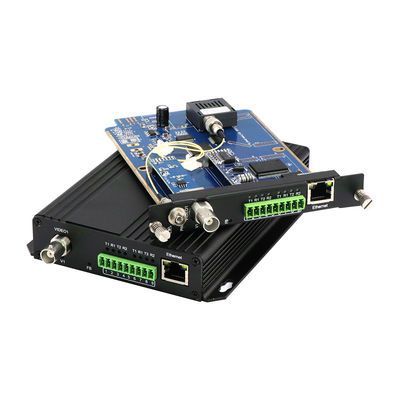

Multi-functional Video Data Ethernet Fiber Media Converter
Introduction of video media converter
- Optical video transmitter and receiver are designed to extend the coaxial limit of 500 meters and get CCTV signals connected to 80km max on optical fiber cable.
- Also referred to as fiber converters, media converters, optical video converters, Optical video converters are a pair of CCTV transmission devices that transmit and receive high fidelity CCTV signals of video, audio, data, telephone, contact closure, Ethernet, etc. with advanced optical transmission technology which enables lossless transmission with minimum disturbance.
- Olycom OM600 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet). With the application of Wavelength Division Multiplexing (WDM) technology, all the signals are transmitted and received over a single optical fiber cable.
Features of analog video fiber converter
- Without EMI, RFI and ground loop
- Low optical link loss – max 30dB
- Bi-di transmission on 1 fiber with WDM
- High quantification level of 8 BIT
- Robust metal casings
- Available in standalone and 19”3U rack systems
- Hot plug-and-play with switch power supply
Specification of CCTV video converter
| Optical |
| Wavelength |
1310nm/1550nm |
| Output Power |
-8~3dBm |
| Optic Fiber |
Single mode (9/125um) 20Km to 80Km
Multimode (50/125um) 1Km, ( 62.5/125um) 500m
|
| Receiving Sensitivity |
-30dBm |
| Interface |
FC/ST/SC |
| Video |
| Bandwidth |
8MHZ |
| Compatible Systems |
NTSC/PAL/SECAM |
| Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain |
< ±1% |
| Differential Phase |
< ±1 |
| S/N ratio |
>60dB(weighting)(8 bit) |
| Interface |
BNC |
| Data |
| Data Protocol |
RS232, RS422, RS485, Manchester, BIPHASE data |
| Bandwidth |
0~300kbps |
| Error rate |
10-9 |
| Interface |
Phoenix terminal |
| Ethernet |
| Work Mode |
Full duplex / half duplex, autosensing |
| Network Speed |
10/100Mbps, autosensing |
| Interface |
RJ45 |
| Chassis and Cards |
| Chassis Slots Quantity |
18 slots |
| Compatibility(with cards) |
1~4ch cards(18pcs); 8ch cards(9pcs) |
| Flexibility |
Supports mixed installation of different configurations |
| Cards |
In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm)
configurations which require larger size can’t be used with this system
|
| Electrical. Environmental. Mechanical |
| Operating Voltage |
Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC, card: powered by chassis |
| Operating Temperature |
-35℃～+75℃ |
| Storage Temperature |
-45℃～+85℃ |
| Humidity |
0~95% non-condensing |
| Dimension And Weight |
Standalone and card: depends on different configurations, Chassis: 19”3U |
Application of optical video converter
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Electronic power oil field, TV station program broadcasting
