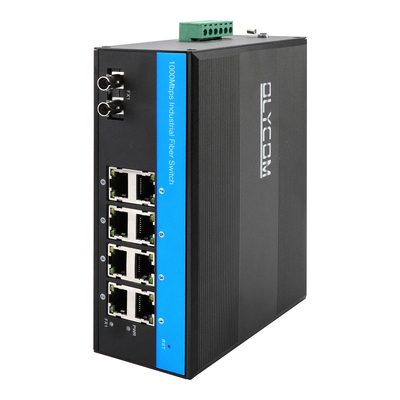

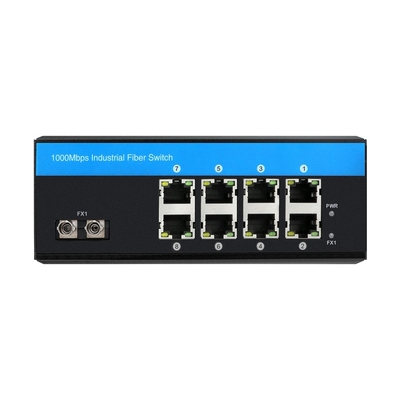

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V

1pc
MOQ
negotiable
Price
8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Gigabit Ethernet Switch 8 Port
Dimension: 158*115*60mm
Weight: 0.75kg
Warranty: 3 Years
Rate: 10/100/1000M
Distance: ST Connector, 30Km
Highlight:

Singlemode Unmanaged Ethernet Switch

,

Dc24v Unmanaged Ethernet Switch

,

30km Industrial Network Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-FS180GE-ST
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.9kg/pc
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

Olycom Industrial Unmanaged Ethernet Switch with ST Connector



Introduction to Industrial Network Switch



IMN-FS180GE series is the 10/100/1000Mbps industrial unmanaged Ethernet switch with the below features

  1. support wide voltage dual power input, DC12V~DC52V
  2. operating temperature -40 ℃ to + 75 ℃
  3. meet IP40 protection degree and EMC industrial grade requirements
  4. pass through dangerous environmental certification and comply with FCC and CE standards



Key Features of Rugged Ethernet Switch



  • 6KV Ethernet surge protection

  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

  • ST fiber uplink, duplex 30KM distance

  • 8 x 10/100/1000Mbps auto-sensing RJ45 downlink ports



Specification of Industrial unmanaged switch



Product Name 10/100/1000Mbps Industrial Fiber Switch(1Fiber+8TP)
Model No. IMN-FS180GE-ST
Port

1pc singlemode ST fiber uplink, 30km

8pcs 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth: 18Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

Input voltage: DC 12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40°～75°C

Storage temperature: -40°～ 85°C

Working humidity: 10%～90%,non-condensing

Storage humidity: 10%～95%,non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

E-mark(please contact us if certification copy is required)

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing



Dimension of 9 port Ethernet fiber switch

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V 0



Company Profile



We manufacture and market fiber optic connectivity devices.

We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.



  • We are a 20-year-old manufacturer with production lines and basically provide
  • 2 4 6 8 10 12 16 port din-rail gigabit industrial L2 L3 managed switch
  • Normal POE fiber optic Ethernet media converter
  • 14 slots 16 slots media converter chassis rack
  • AHD TVI CVI Analog video to fiber converter
  • Customized data video Ethernet phone audio contact closure over fiber optic extender converter SFP copper fiber transceiver
  • Serial to fiber optic converter

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V 1

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V 2
