1G / 2.5G Industrial Managed 8 Sfp Fiber Optic Switch With 4 Ethernet Ports IP40
1pcs
MOQ
Negotiable
Price
1G / 2.5G Industrial Managed 8 Sfp Fiber Optic Switch With 4 Ethernet Ports IP40
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-FS840GW
High Light:

Fiber Optic Switch DC9V

,

IP40 Grade Fiber Optic Switch

,

2.5G Industrial Managed Ethernet Switch

Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.9kg
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Specifications
Product Name: 12 Port Rugged Ethernet Fiber Switch
Material: Metal
Weight: 0.75kg Net Weight
Dimension: 158*115*60mm
Voltage: DC9~DC36V
Speed: 10/100/1000Mbps/2.5G
Product Description

Olycom 10/100/1000Mbps Managed Industrial Fiber Switch IM-FS840GW



Overview of gigabit managed switch



  • IM-FS840GW series is the 10/100/1000 Mbps industrial fiber switch
  • operating temperature -40 ℃to + 85 ℃
  • support wide voltage dual power input
  • support web management
  • meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail installation
  • pass through dangerous environmental certification and comply with FCC and CE standards
  • The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Specification of Industrial Network Switch



Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (8F+4TP)
Model No. IM-FS840GW
Port

8 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X,

IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az

VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:48Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network
Power supply Input voltage:DC 9-52V; No-load power:5W; Reverse connection: support
Environment

Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:

10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4

(EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN

61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:

IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 115 x 60mm;

Mounting method:Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing



Key Features of Rugged Ethernet switch



  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports 4 x 1000Mbps SFP fiber port
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c



Manament software Features



  1. Support cable diagnosis and can locate the fault point
  2. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  4. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  5. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  6. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  7. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching Support IGMP agent report, MLD snooping
  8. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  9. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  11. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  12. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Packing List



Before you installing the switch, please check that the package contains the following:

  • A 12 port Managed Rugged Gigabit Ethernet Switch
  • A warranty card
  • A user Manual
  • A console cable

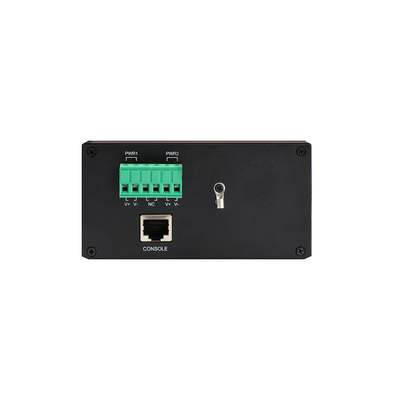

1G / 2.5G Industrial Managed 8 Sfp Fiber Optic Switch With 4 Ethernet Ports IP40 0

Dimension of 12-port Industrial Ethernet Managed Switch

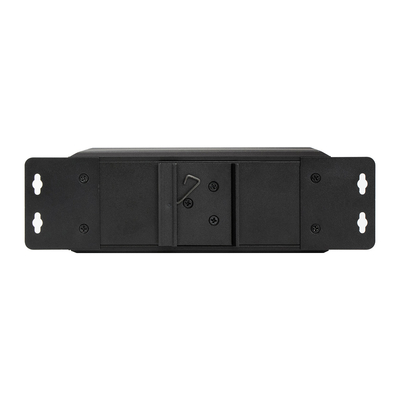

1G / 2.5G Industrial Managed 8 Sfp Fiber Optic Switch With 4 Ethernet Ports IP40 1



FAQ



1 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



2 Q: What is warranty time?

A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.



3 Q: Do you accept sample order?

A: Yes. Sample order to check our services and quality.



4 Q:Can I have any discounts?

A: Discounts will be given to repeat orders, regular clients and discount products.
