10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR

10G SFP+ Multimode Transceiver For Cisco, Ubiquiti And Other Open Switches

Product Introduction

• OLYCOM OSPLXG05D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
• The OSPLXG05D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams.
• The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
• The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
• The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features

• Supports 9.95 to 11.3Gb/s bit rates
• Hot-Pluggable
• Duplex LC connector
• 850nm VCSEL transmitter, PIN photo-detector
• MMF links up to 300m
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
• Power Supply :+3.3V
• Power consumption<1W
• RoHS compliant

Application

• 10GBASE-SR/SW Ethernet
• SONET OC-192 / SDH
• 10G Fibre Channel

Optical Parameters

FAQ

Q: How long is the lead time?
A: Usually 3-5 days, but need to check when you process orders.

Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about customized product, we also provide.

Q: Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.

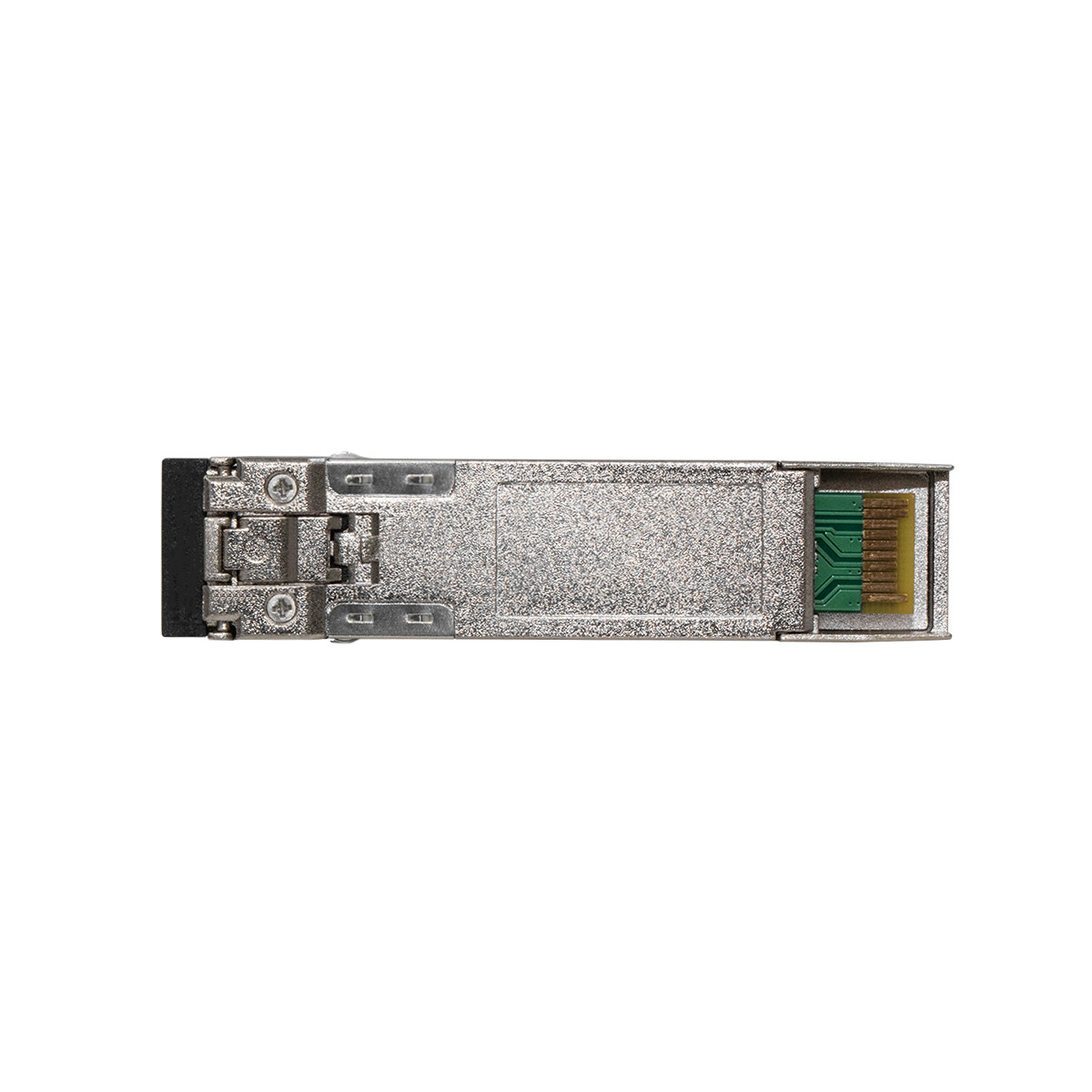

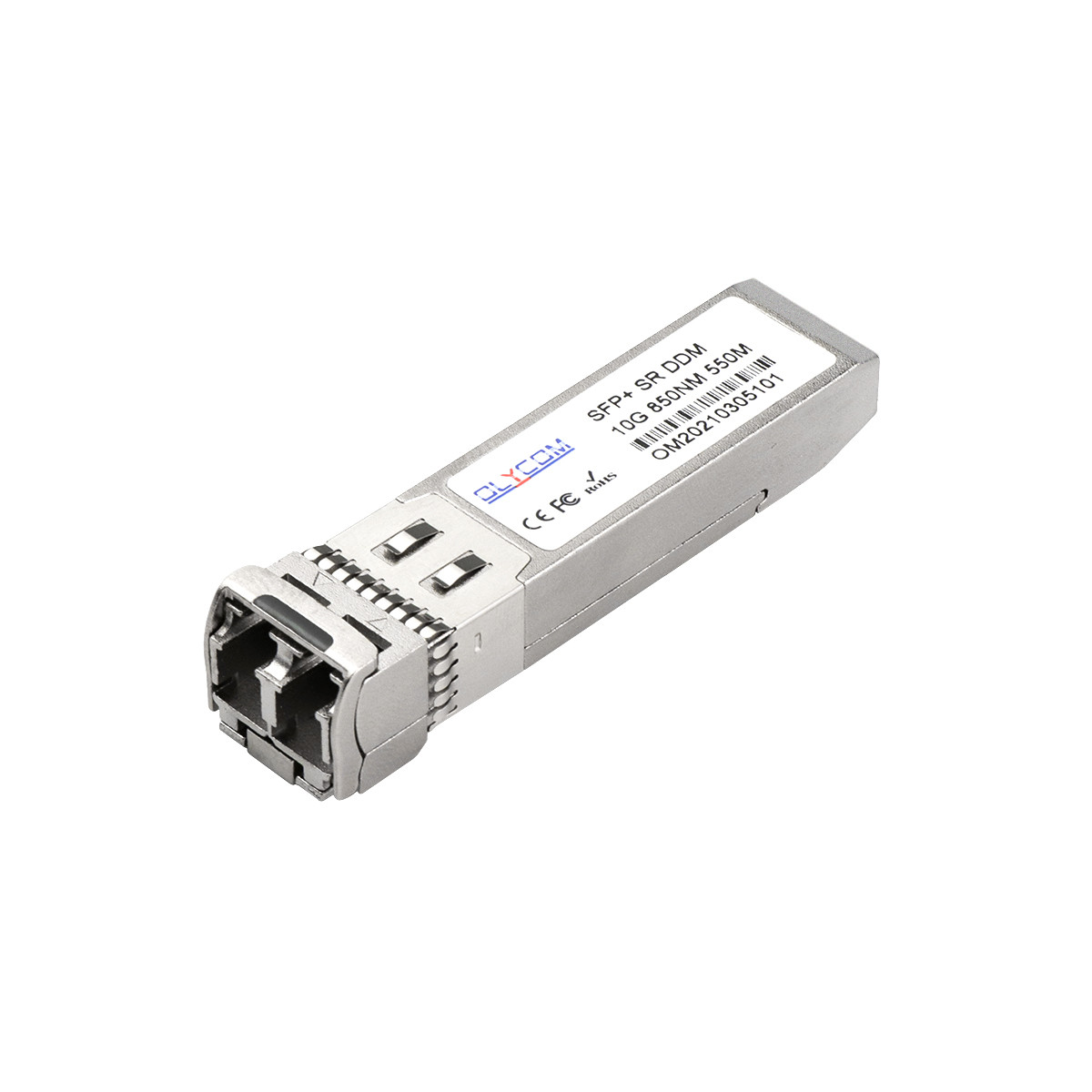

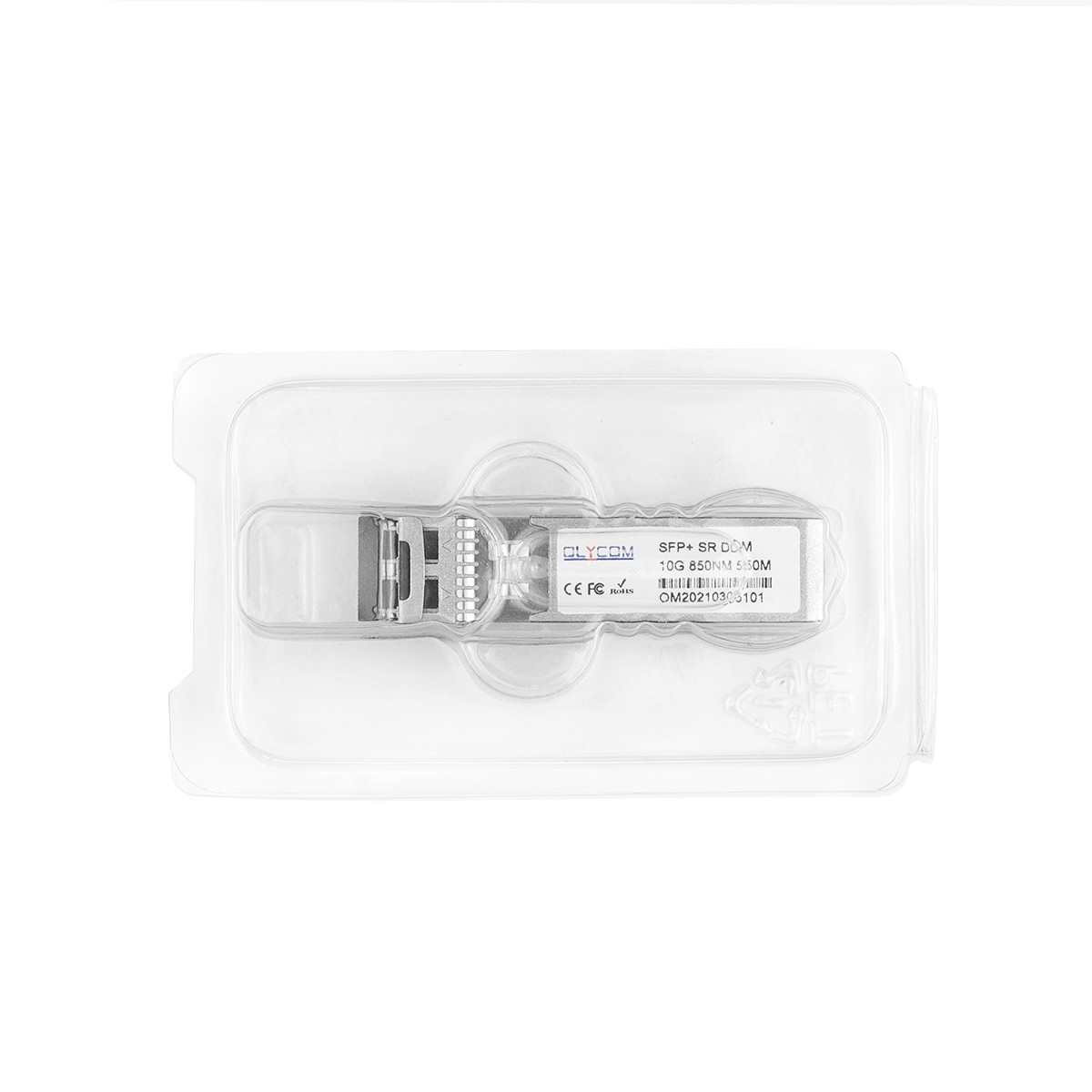

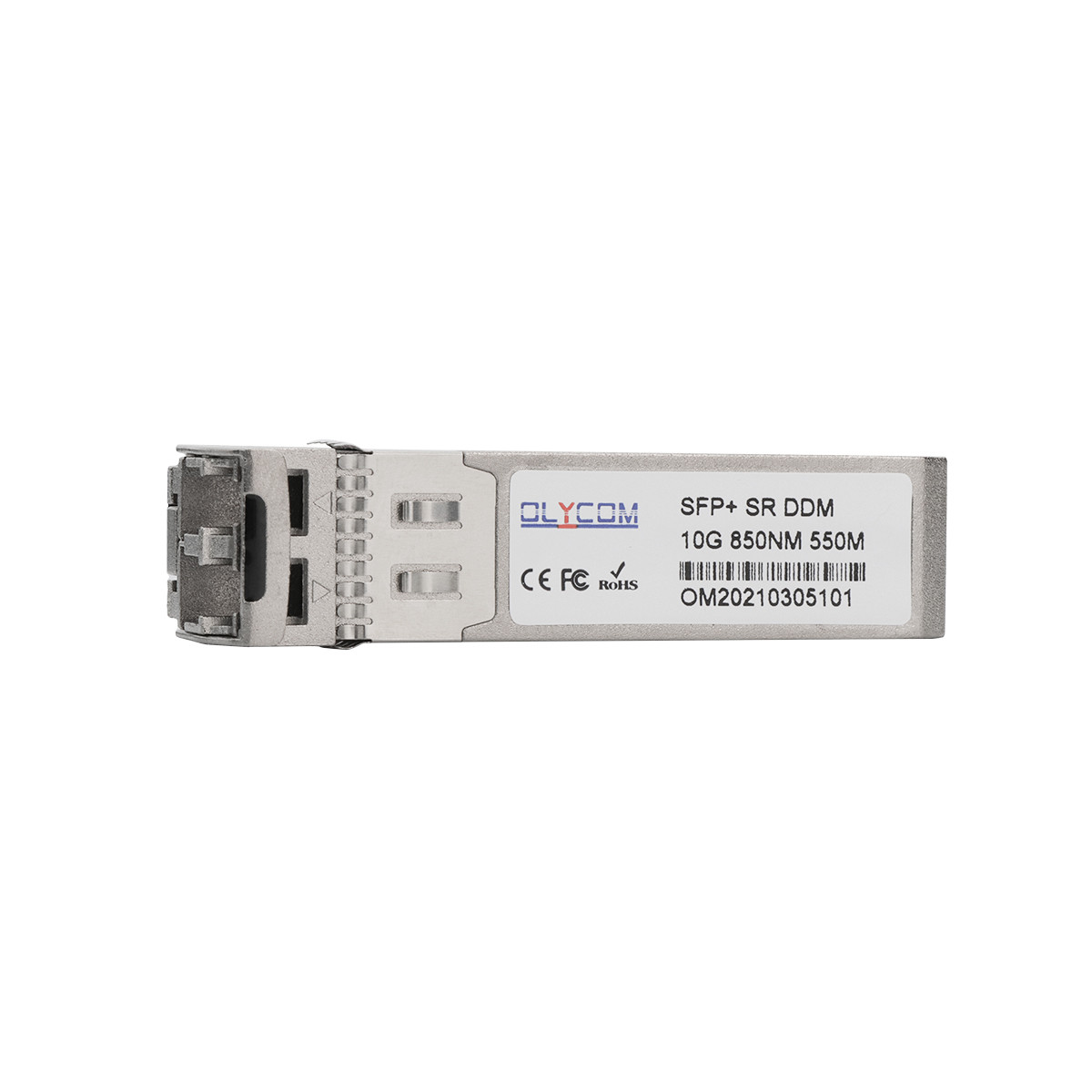

Product Photos
