Olycom Industrial 5 Port Gigabit PoE Fiber Switches
Basic Information about CCTV PoE Switch
Port
1x100/1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
PoE

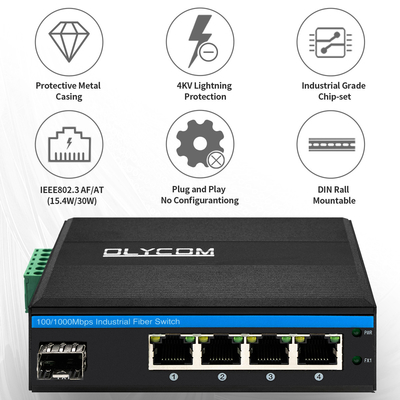

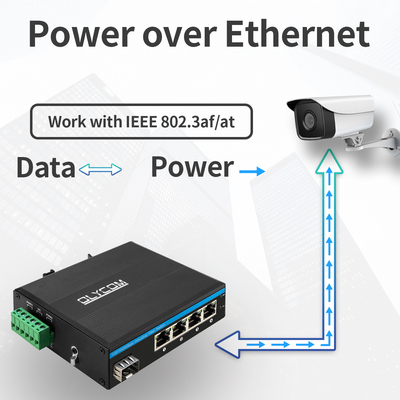

IEEE 802.3af 15.4W(PoE), IEEE 802.3at 30W(PoE+), auto-sensing PD standard and supply compatible power
Total budget: 120W, single PoE power supply output power: 30W (port 1~4)
PoE output voltage: DC48V, Active PoE
PoE power supply input voltage: 48V
PoE Distance: 100 meters, a PoE extender is required for longer PoE transmission
PoE Wiring: Mode A, 1/2(+), 3/6(-)
Hardware
6KV Ethernet surge protection, adapt to a harsh outdoor environment

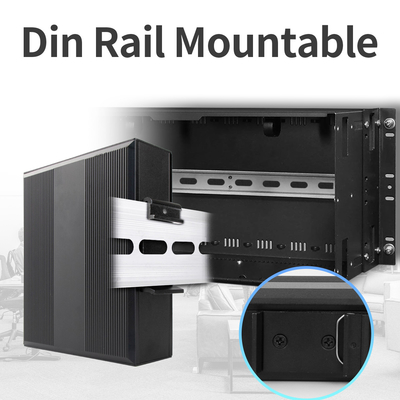

DIN rail or Wall installation
Comply with FCC and CE standards
Operating environment temperature: -40°C～75°C
Protection Level: IP40 Enclosure
It is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of Gigabyte Network Switch
| Product Name |
10/100/1000Mbps Industrial PoE Fiber Switch(1F+4TP) |
| Model No. |
IM-FP144GE |
| Port |
1x100/1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 10Gbps (non-traffic jam)
Forwarding rate: 14.88Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power Consumption |
Full loading without PoE≤5W |
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Package And Delivery
Selling Units: Single item
Single Package Size:30*22*10cm
Single Gross Weight:0.65kg
Package Type: Shipping dimension for 1pc 30*22*10cm
One unit device and one user manual are inside one box, sealed and well protected.
40pcs /carton, the carton dimension is 67*33*47cm
