Home /Products/Industrial Ethernet Media Converter/DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W

DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W

1pc
MOQ
Negotiable
Price
DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Name: Industrial PoE Media Converter
Ethernet Port: 1*10/100/1000M RJ45 Port
Fiber Port: 1*100/1000M SFP Port
OEM/Customization: Available
Function: Support PoE AT/AF
Mounted Type: Din Rail Mounting
Highlight:

FCC Industrial Media Converter

,

DC48V Industrial Media Converter

,

Industrial Ethernet Media Converter 15.4W
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-PC111GE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000 pieces per month
Product Description

Gigabit PoE Industrial Fiber Media Converter



Specification of PoE Media Converter



Product Name 10/100/1000Mbps Industrial PoE Fiber Switch(1F+1TP)
Model No. IM-PC111GE
Port

1x100/1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 4Gbps (non-traffic jam)

Forwarding rate: 2.976Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On:PoE is working

Off:PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On:transmission speed is 1000Mbps

Blinking: in transmission

Off:Disconnected or working speed is 10/100Mbps
Power Supply

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1)
Total budget: 30W

PoE output voltage: 48V

Reverse connection: support
PoE Wiring 1/2 (V+), 3/6 (V-)
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

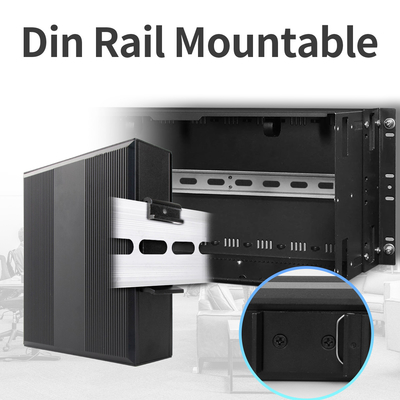

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years, lifetime technical support



Key Features of Unmanaged Media Converter

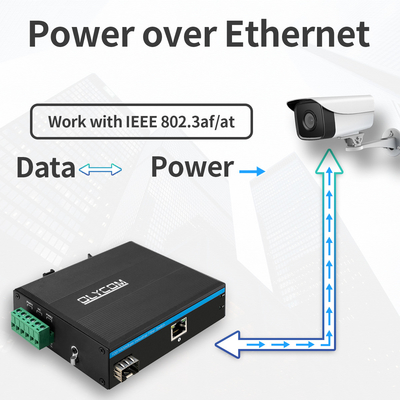

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af /at power on to 1 RJ45 port
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • Max power to15.4W under af standard, 30W under at standard to each PoE port
  • Detect the PoE models of electrical equipments.
  • A store-and-forward switching mechanism



Packing and After-sales Service



  • 1* 2 Port Gigabit Fiber POE Switch(WITHOUT power adapter and SFP Transceiver),
  • 1* Product Manual,
  • 1* Warranty Card with 3 years



FAQ



Q: Is this the standard POE?

A: Yes, we support IEEE 802.3af/at power on to 1 RJ45 ports



Q: What is the warranty time?

A: One year for HD video optical converter, normal switch, fiber media converter, network booster. Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.



Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.



Q: How do you guarantee the quality?

A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment.



Application of Industrial Media Converter



DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W 0



Photo of Fiber Optic Ethernet Converter



DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W 1

DC48V POE Industrial Media Converter 100/1000M Auto-Sensing 2 Port PSE 15.4W 30W 2
