Industrial Managed PoE Switch Gigabit SFP 120W Budget Active PoE Rugged Case
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Managed Industrial Gigabit Ethernet POE Switch
Transmission Rate: 10/100/1000Mbps
Safety Class: IP40
Function: LACP, POE, QoS, SNMP, VLAN Support...
Mounting Method: Din-rail Mounting
Input Voltage: 48V (max 52V)
Highlight:

IP40 Industrial Gigabit Ethernet Switch

,

4 Rj45 Industrial Gigabit Ethernet Switch

,

SNMP Industrial Managed POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: IM-FP244GW
Payment & Shipping Terms
Packaging Details: 1pc in box, 0.9Kg gross weight per box
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs per month
Product Description

4 Port PoE Gigabit Industrial Managed Switch

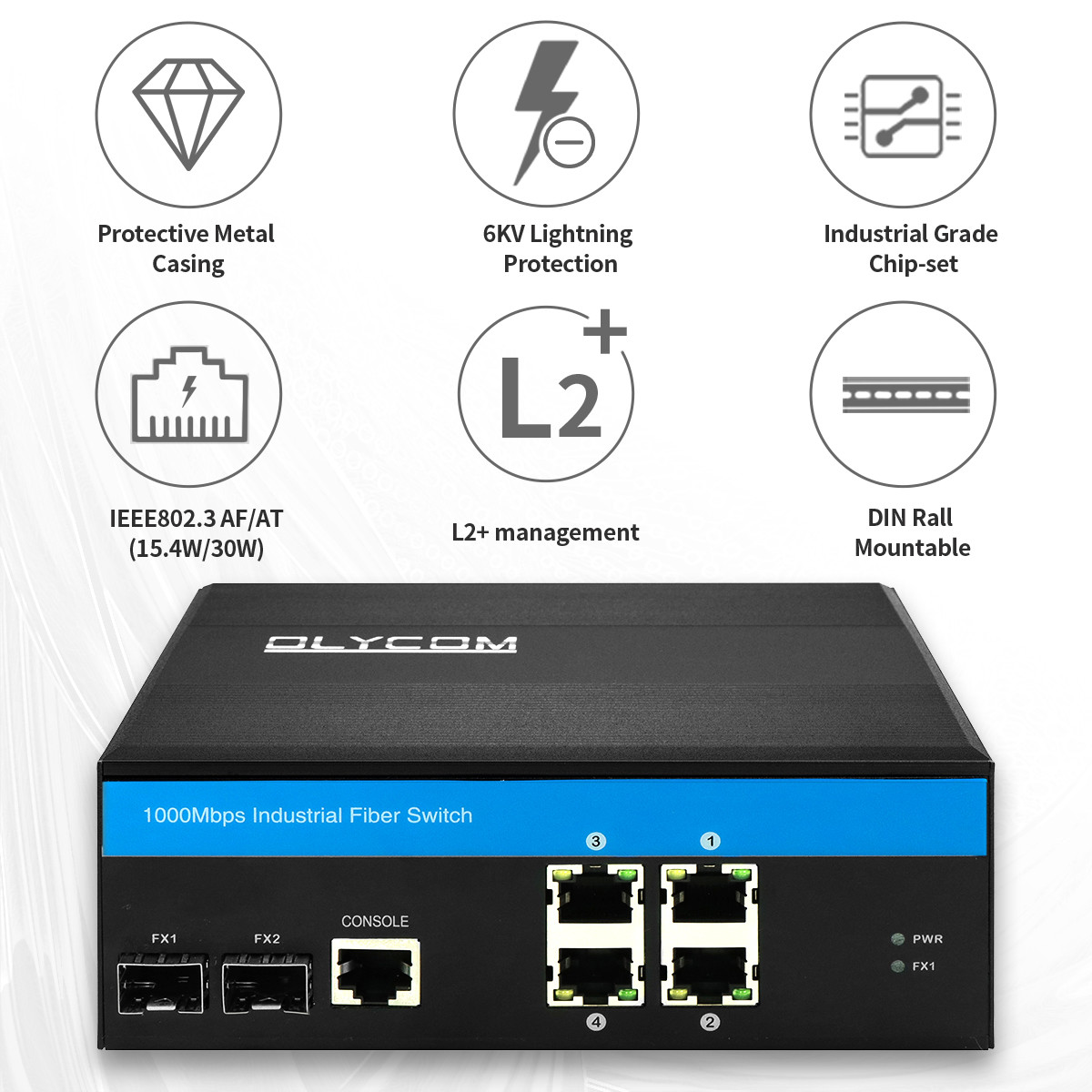

Key Features of Industrial Ethernet Switch

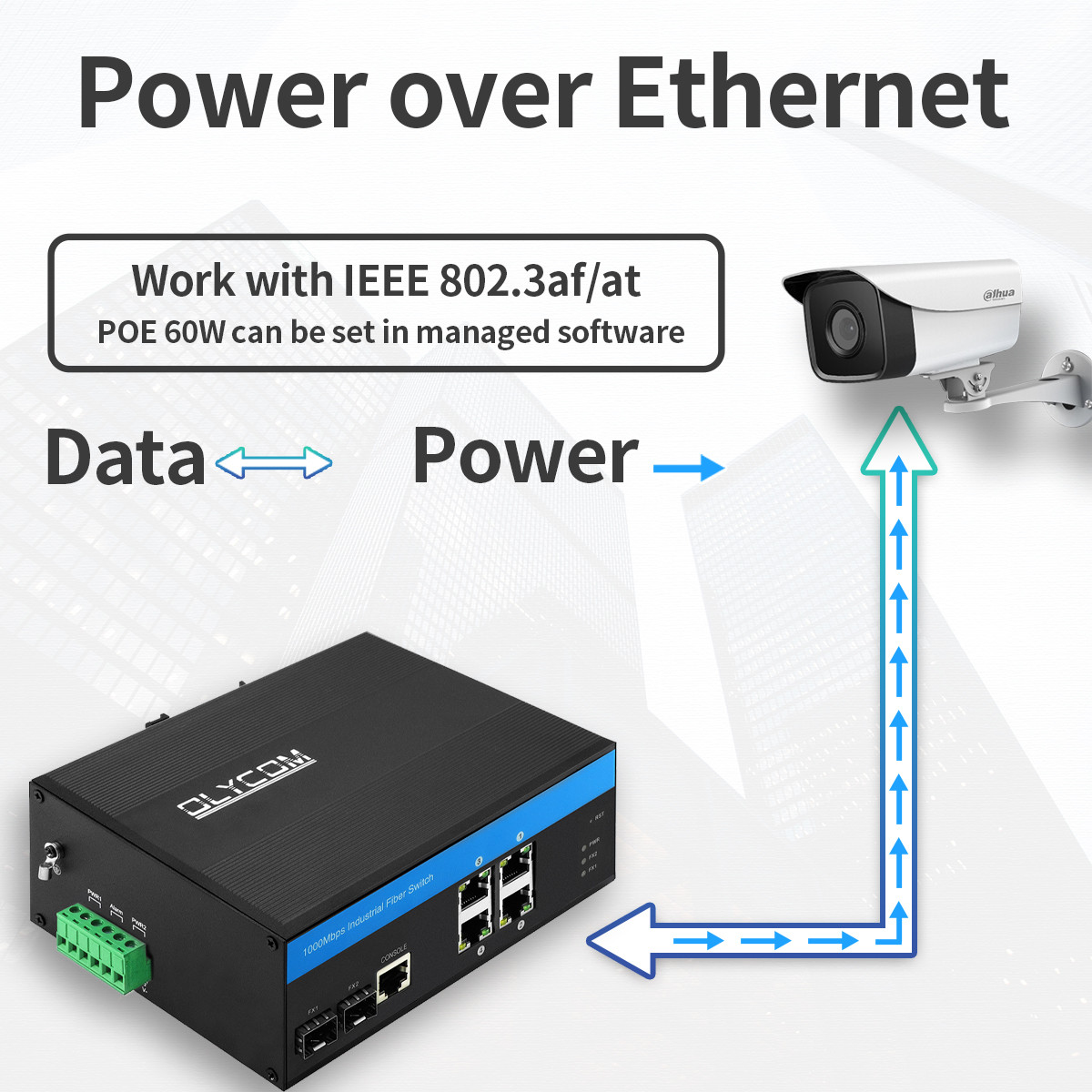

  • Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 100/1000/2500Mbps SFP fiber port
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail or Wall installations
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • Operating environment temperature: -40°C~75°C



Specification of Managed PoE Switch



Product Name 10/100/1000Mbps Managed Industrial PoE Fiber Switch(2F+4TP)
Model No. IM-FP244GW
Port

2*100/1000/2500Mpbs SFP ports

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

4*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Protocol

IEEE 802.3

IEEE802.3U

IEEE802.3ab

IEEE802.3z

IEEE802.1d STP

IEEE802.1w RSTP

IEEE802.1s MSTP

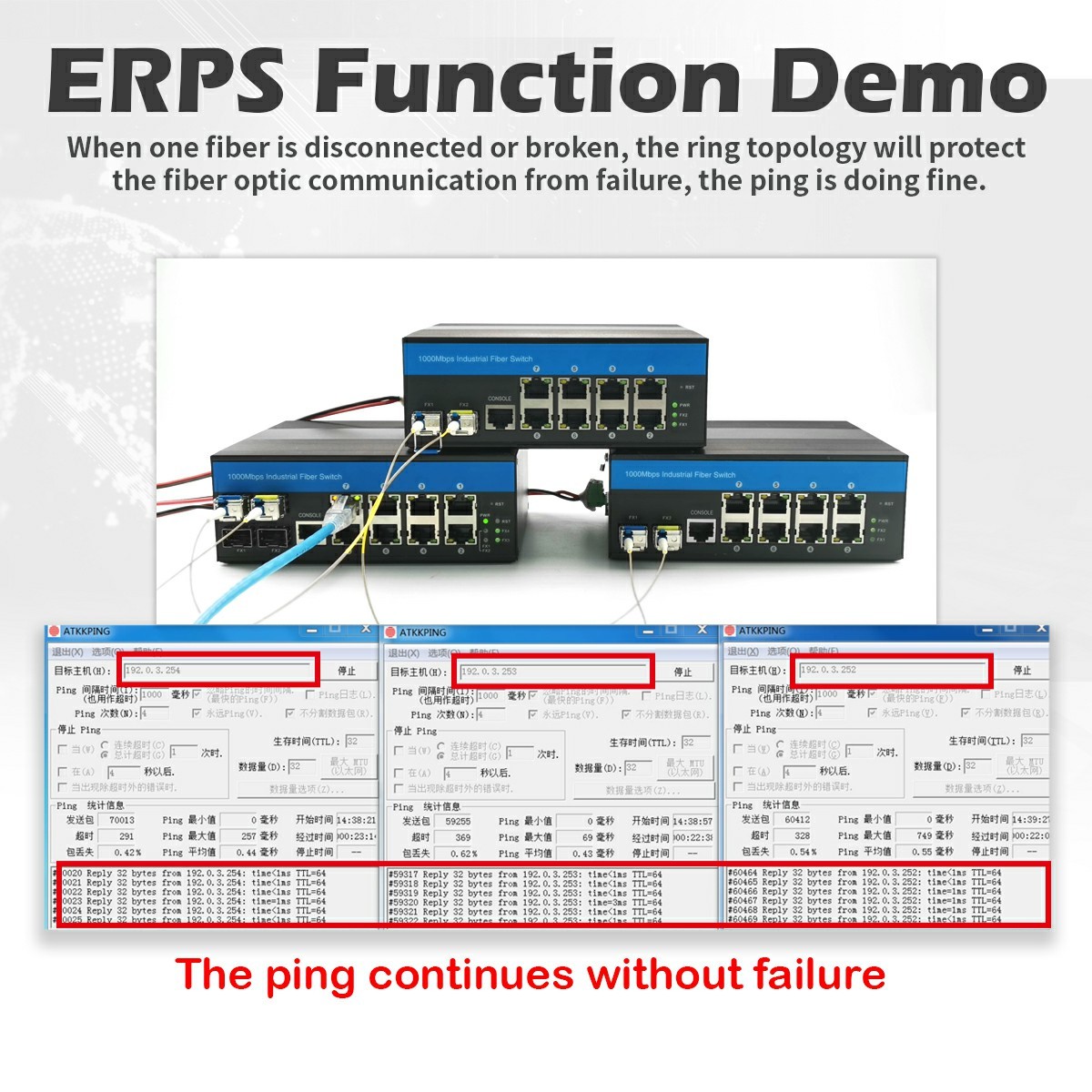

ITU-T G.8023 EPR/Y.1344

IEEE802.1Q

IEEE802.1X

IEEE802.3ad

IEEE802.3x

IEEE802.1ad

IEEE802.1p

IEEE802.1ab

IEEE802.3az

IEEE802.3af

IEEE802.3at

Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 16Gbps(non-traffic jam)

DRAM size: 128M

Flash size: 16M
Packet buffer size: 4Mb

VLAND ID: 4096

MAC Address Table Size: 8K

Jumbo Frame: 9.6KB

Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

LEDs

Power, network, fiber

PWR: Power



Orange: Link/ACT

Green: 1000M Network Speed(off when it is 100Mb/s)



Fiber: FX1/FX2

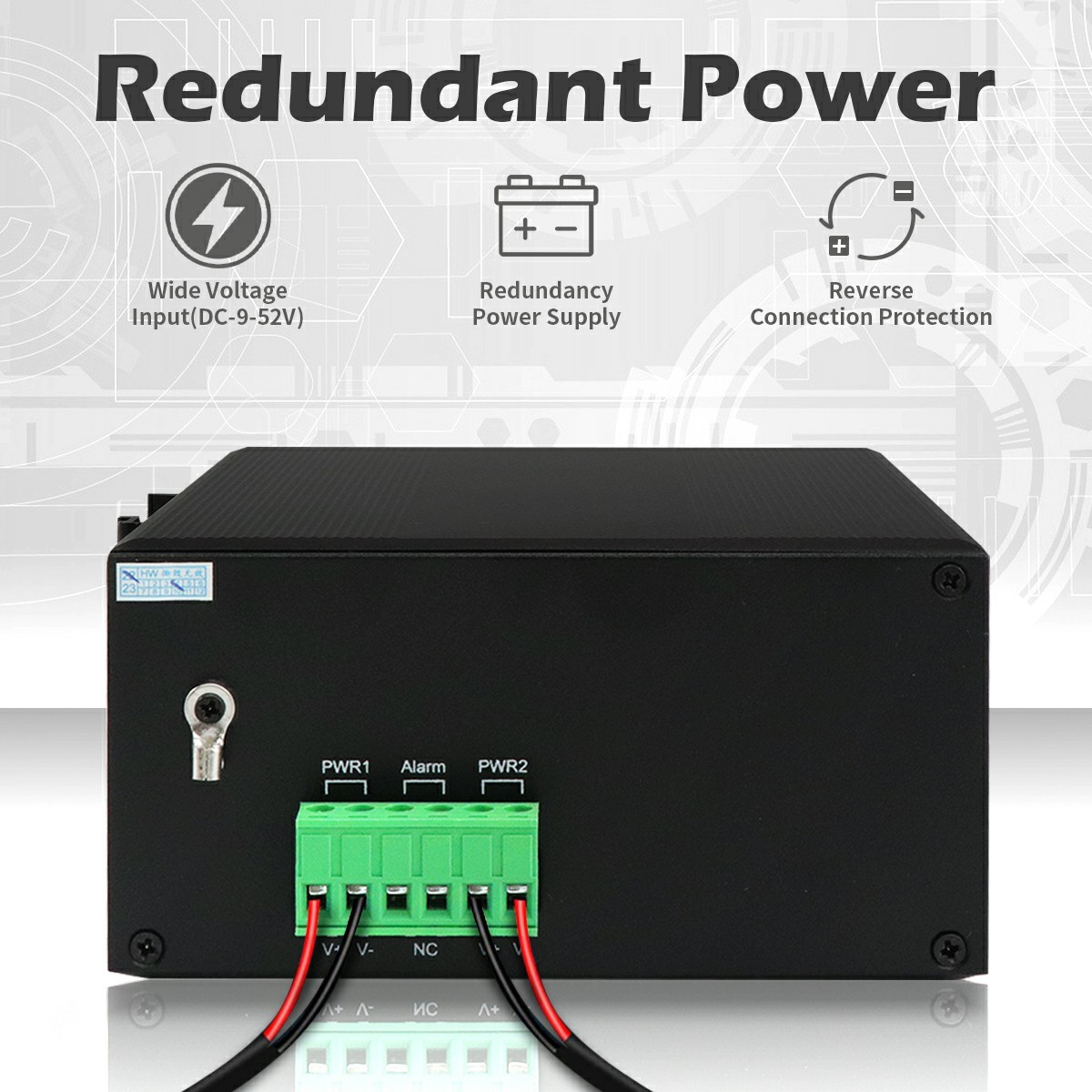

Power Supply

Input voltage: 48V(max 52V)

PoE output voltage: 48V

Single PoE output power: 30W(port 1~4)

Max budget: 120W

Reverse connection: support

PoE Wiring PoE af/at: 1/2(V+), 3/6(V-)
Environment

Working temperature: -40°C~75°C

Storage temperature: -40°C~85°C

Working humidity: 10%~90%, non-condensing

Storage humidity: 10%~95%, non-condensing

Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014

Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 158*115*60mm

Mounting method: Din-rail/Wall mounting

Weight: 0.75Kg/0.9Kg(Net/Gross)

Warranty 3 years, lifetime technical support



Industrial Managed PoE Switch Gigabit SFP 120W Budget Active PoE Rugged Case 0



Application



Industrial Managed PoE Switch Gigabit SFP 120W Budget Active PoE Rugged Case 1

Industrial Managed PoE Switch Gigabit SFP 120W Budget Active PoE Rugged Case 2



Package



1. One product, one console cable, one user manual, and one warranty card are inside one box.

2. Twenty pieces of boxes are in one carton.



Industrial Managed PoE Switch Gigabit SFP 120W Budget Active PoE Rugged Case 3



FAQ



Q1. Can we get a sample?

Yes, but we need to charge for samples.


Q2. Can you offer a better price? Any discount?
Yes, price is not a problem, more quantity more attractive price.



Q3. Do you have MOQ?
No, OLYCOM provides good OEM/OEM service to our customers.



Q4. OEM, ODM Service is available?
Yes, OLYCOM provides good OEM/ODM service to our customers.



Q5. Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.



Quality Control



  • All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
  • Every production process has a special person to test to ensure quality
  • Every product must be tested before shipping to our customers. The quality is attached to great importance during the whole production process.
  • All products have passed CE, FCC, ROHS, and other certifications
