Industrial PoE Media Converter 10/100M Fast Ethernet 15.4W/30W SFP Fiber For IP Cameras

1pc
MOQ
Negotiable
Price
Industrial PoE Media Converter 10/100M Fast Ethernet 15.4W/30W SFP Fiber For IP Cameras
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Industrial PoE Fiber Ethernet Media Converter
Ethernet Port: 1* 10/100Mbps RJ45 Port
Fiber Port: 1* 100M SFP Port
Feature: Unmanaged, PoE Af/at
Customization: Yes
Chipset: Realtek
Highlight:

IP40 Fiber Ethernet Media Converter

,

Ip Camera Fiber Ethernet Media Converter

,

RoHS Industrial Ethernet Media Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-PC111FE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, Paypal
Supply Ability: 2000 units per month
Product Description

Industrial PoE Fiber Ethernet Media Converter



Introduction to 10/100Mbps Media Converter



IM-PC111FE series is the 10/100 Mbps industrial POE fiber media converter with below features

  • comply with IEEE802.3af/at

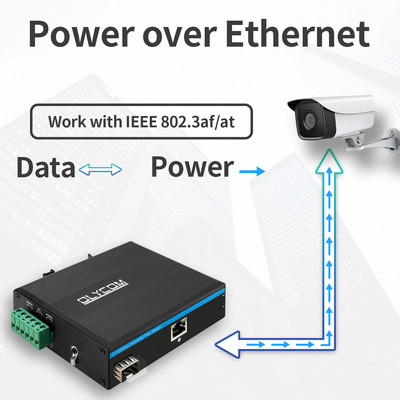

  • power on POE IP cameras through the Ethernet cable
  • simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃
  • meet IP40 protection degree and EMC industrial grade requirements

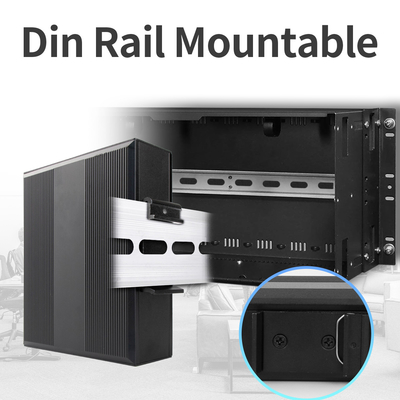

  • DIN rail installation
  • pass through dangerous environmental certification and comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Specification of Industrial Media Converter



Product Name 10/100Mbps Industrial POE Fiber Media Converter (1F+1TP)
Model No. IM-PC111FE
Port

1 x 100Mpbs fiber port

SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km

1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth: 0.4Gbps (non-traffic jam)

DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

Fiber port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W/30W

Environment

Working temperature:-40°~ 75°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety

CE Mark, commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 114x 93 x 35mm

Mounting method: Din-rail mounting

Warranty 3 years



Key Features of Fiber Media Converter



  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af /at power on to 1 RJ45 port
  3. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  7. Max power to15.4W under af standard, 30W under at standard to each PoE port
  8. Detect the PoE models of electrical equipments.
  9. A store-and-forward switching mechanism



Industrial PoE Media Converter 10/100M Fast Ethernet 15.4W/30W SFP Fiber For IP Cameras 0



FAQ



Q: What's your MOQ?

A: 1 piece



Q: What is the warranty time?

A: Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.



Q: How long is the lead time?

A: Usually 3-5 days, but need to check when you process orders.



Q: Are you a manufacturer or trading company?

A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipment products. We insist on R&D, with over 20 -years of professional experience in the area.



Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.



Application



Industrial PoE Media Converter 10/100M Fast Ethernet 15.4W/30W SFP Fiber For IP Cameras 1

Industrial PoE Media Converter 10/100M Fast Ethernet 15.4W/30W SFP Fiber For IP Cameras 2
