Industrial POE Fiber Ethernet Media Converter 1 Fiber To 1 UTP 10/100Mbps For POE Ip Camera
Introduction of Industrial POE Fiber Ethernet Media Converter
IM-PC111FE series is the 10/100 Mbps industrial POE fiber media converter, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Industrial POE Fiber Ethernet Media Converter
| Product Name | 10/100Mbps Industrial POE Fiber Media Converter (1F+1TP) |
| Model No. | IM-PC111FE |
| Port |
1 x 100Mpbs fiber port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) Fiber port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | 3 years |
Key Features of Industrial POE Fiber Ethernet Media Converter
FAQ of Industrial POE Fiber Ethernet Media Converter
Q: What's your MOQ?
A: 1 piece
Q: What is the warranty time?
A: Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.
Q: How long is the lead time?
A: Usually 3-5 days, but need to check when you process orders.
Q: Are you a manufacturer or trading company?
A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipment products. We insist on R&D, with over 20 -years of professional experience in the area.
Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.
Application of Industrial POE Fiber Ethernet Media Converter

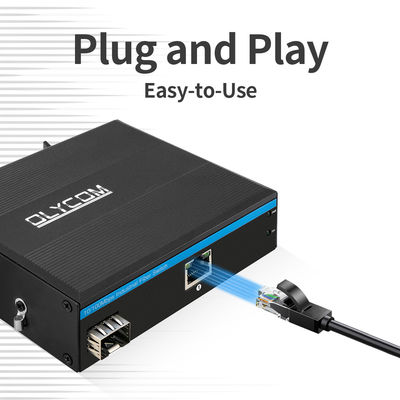

Photo of Industrial POE Fiber Ethernet Media Converter
