2.5G Ring Fiber Industrial PoE Managed Switch
Specification of 2.5G Managed Switch
| Product Name |
10/100/1000Mbps Managed Industrial PoE Fiber Switch(1F+6TP) |
| Model No. |
IM-FP166GW |
| Port1 |
1*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
6*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Protocol |
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 17Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1
|

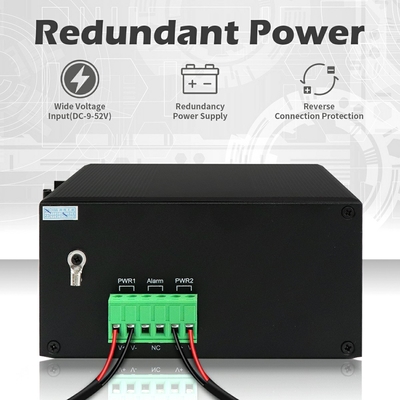

| Power Supply |
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~6)
Max budget: 180W
Reverse connection: support
|
| PoE Wiring |
PoE af/at: 1/2(V+), 3/6(V-) |
Web GUI Information
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Please contact us for web manual or CLI manual

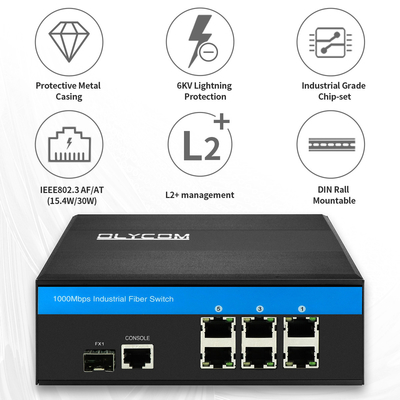

Key Features of Managed Network Switch
- Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
- 6 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 100/1000/2500Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- DIN rail or Wall installation
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
Application
Package And Delivery
Selling Units: Single item
Single Package Size: 30*22*10cm
Single Gross Weight: 0.85kg
Package Type: Shipping dimension for 1pc 30*22*10cm
One unit device and one user manual are inside one box, sealed and well protected.
20pcs /carton, the carton dimension is 55.5*40*43cm
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
