10 Port Industrial L2 Managed Switch PoE Gigabit Ethernet 15.4W 30W IP40 Rated CE

Olycom Layer 2 Manageable PoE Fiber Network Switch

Key Features of Managed Ethernet Switch

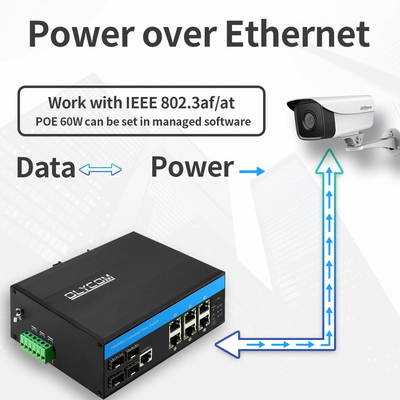

1. Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
3. 6 x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 4 x 100/1000/2500Mbps SFP fiber port
5. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Meet IP40 protection degree and EMC industrial grade requirements
7. DIN rail or Wall installation
8. Power range up to 100 meters
9. Comply with FCC and CE standards
10. Operating environment temperature: -40°C～75°C

Technical Data of 2.5G Fiber Switch

Software Features of L2 Managed Switch

1. Support cable diagnosis and can locate the fault point
2. Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption

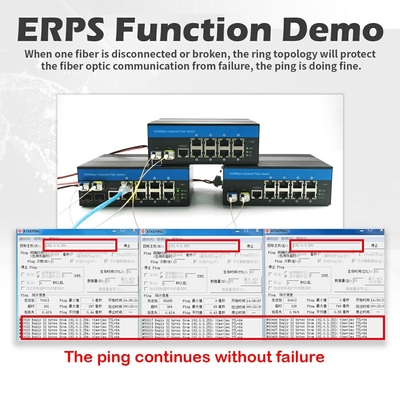

3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
4. Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
5. Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
6. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
7. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
8. Support IGMP agent report, MLD snooping
9. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
10. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
11. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
12. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
13. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
14. Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL

Application

Package And Delivery

Selling Units: Single item

Single Package Size: 29*21.5*6cm

Single Gross Weight: 0.9kg

Package Type: Shipping dimension for 1pc 29*21.5*6cm

One unit device and one user manual are inside one box, sealed and well protected.

20pcs /carton, the carton dimension is 55.5*40*43cm

Our Advantages

1. Fast dispatch, it usually takes 2~4 working days to get the order ready.
2. Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
3. We cater to many minor requirements to fulfill your needs.

FAQ of Gigabit PoE Switch

Q: Do you accept sample orders?
A: Yes. Sample order to check our services and quality.

Q: Tell me something about your packing.
A: It is neutral packing. If you have your own packing box, we support it.

Q: What is the warranty time?
A: It is usually valid for one year, and 3 years for industrial products. Technical support will be offered free.

Q: Does this managed switch include the power supply?

A: No, no power adapter is included.

Q: Is it a managed switch?

A: Yes, this is an L2 managed POE switch for industrial networks.
