Name: 8 Port Industrial Managed PoE Switch Full Gigabit 120W Budget Hardened Network CE
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FP444GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: ERPS, QoS, VLAN, MAC Etc.

Product Name: 8 Port PoE Managed Fiber Switch

Fiber: 4*100M/1G/2.5G SFP

Network: 4*10/100/1000M

PoE: 120W, Active PoE

PoE Standard: 15.4W/30W

Highlight:

4 SFP Industrial Managed POE Switch

IP40 Protection Managed Fiber Switch

4 Rj45 Industrial Managed POE Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, ROHS

Model Number: IM-FP444GW

Document: Managed Switch User Manual.pdf

Payment & Shipping Terms

Packaging Details: 1pc in box, 0.9Kg gross weight

Delivery Time: 3-5 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs per month

Gallery

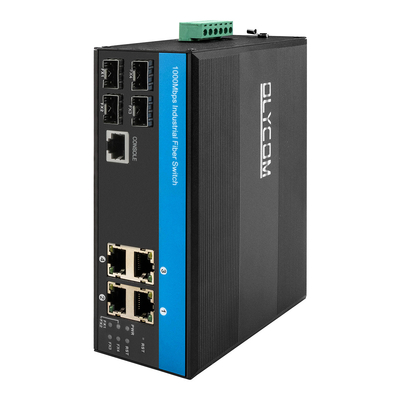

8 Port Industrial Managed PoE Switch Full Gigabit 120W Budget Hardened Network CE

Product Description

8 Port 2.5G Fiber Optic Managed PoE Switch

Basic Information of Rugged Ethernet Switch

Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
4 x 100/1000/2500Mbps SFP fiber port
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Meet IP40 protection degree and EMC industrial grade requirements
DIN rail or Wall installation
Power range up to 100 meters
Comply with FCC and CE standards
Operating environment temperature: -40°C～75°C

Software Features

Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL

Please contact us for web manual or CLI manual

PoE Part of Industrial Network Switch

The Ethernet port supports the standard IEEE802.3af power supply. (Please specify the AT standard)

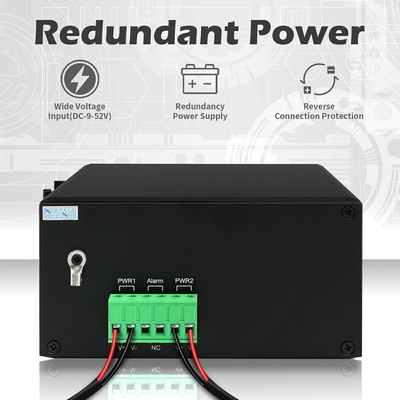

Support dual power input power supply voltage: 48~52VDC, power output power is determined by POE load.
Wiring method: The default wiring mode is 12, 36 (you can choose custom 45+, 78- wiring mode)
You can select one of the electrical ports to support 60W power supply output (special instructions are required when ordering)
Make sure that the powered devices connected to the switch's POE port are compliant with the IEEE802.3af/at standard.

Mechanical Information of Fiber Network Switch

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

8 Port Industrial Managed PoE Switch Full Gigabit 120W Budget Hardened Network CE 1

Specification of PoE Managed Switch

Product Name	10/100/1000Mbps Managed Industrial PoE Fiber Switch(4F+4TP)
Model No.	IM-FP444GW
Port	4100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 410/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol	IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at
Switching Features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 26Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network, fiber PWR: Power Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s) Fiber: FX1/FX2/FX3/FX4
Power Supply	Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~4) Max budget: 120W Reverse connection: support
PoE Wiring	PoE af/at: 1/2(V+), 3/6(V-)
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 15811560mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty	3 years, lifetime technical support

Lead Time of Fiber Optic Switch

Quantity(Pieces)	1-100	>100
Times(Days)	7	Negotiable

Packing List of 2.5G Fiber Switch

User Manual *1 pc
Console Cable *1 pc
8 Port Industrial Managed POE Fiber Switch *1 pc
Warranty Card *1 pc

8 Port Industrial Managed PoE Switch Full Gigabit 120W Budget Hardened Network CE 2

Application of Ring Managed Network Switch

8 Port Industrial Managed PoE Switch Full Gigabit 120W Budget Hardened Network CE 3
