Olycom 8-Port Web Managed 2.5G PoE/PoE+ Fiber Switch
Introduction to 8 Port PoE Switch
Port
6 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 100/1000/2500Mbps SFP fiber port
PoE

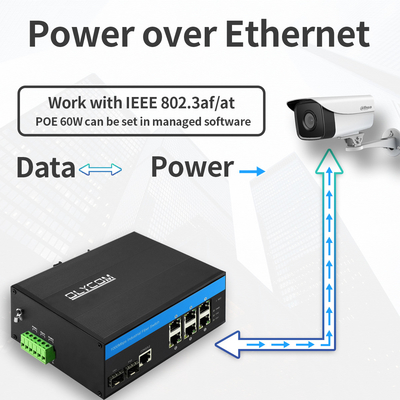

IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable
PoE at/PoE af compliant, auto-sensing output, max 180W
DC48V active output
Power range up to 100 meters
Hardware

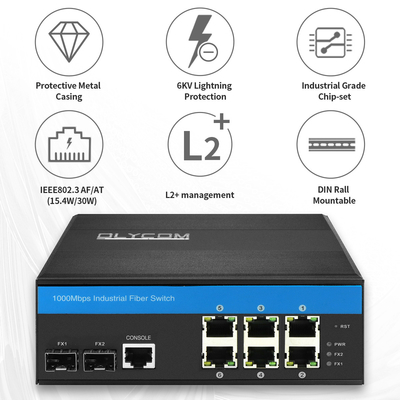

6KV Ethernet surge protection, adapt to a harsh outdoor environment
Meet IP40 protection degree and EMC industrial grade requirements
DIN rail or Wall installations
Comply with FCC and CE standards
Operating environment temperature: -40°C～75°C
Software
Support Customization
With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of Industrial Fiber Switch
| Product Name |
10/100/1000Mbps Managed Industrial PoE Fiber Switch(2F+6TP) |
| Model No. |
IM-FP266GW |
| Port |
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
6*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Protocol |
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 22Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|

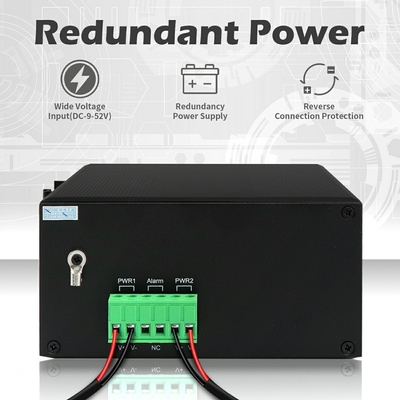

| Power Supply |
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~8)
Max budget: 240W
Reverse connection: support
|
| PoE Wiring |
PoE af/at: 1/2(V+), 3/6(V-) |
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption

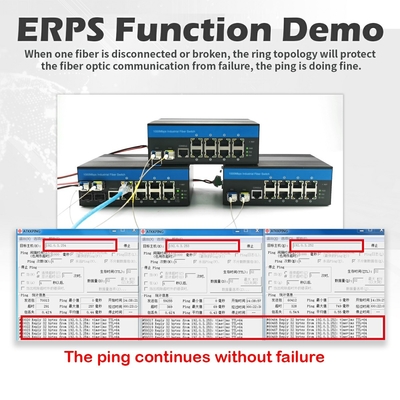

Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Please contact us for web manual or CLI manual
Packing Information
1pc switch
1pc user manual
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
| Industrial Fiber Transceiver |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Adapter |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
| IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～70℃ |
| IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～70℃ |
Shipping box information
Product size: 15.8*11.5*6cm
Inner box size: 25.3*20.8*8cm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 55.5*40*41cm
Packing quantity: 20Pcs
Packing weight: 20Kg
Application of Smart Managed Network Switch
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
