Web-Managed Gigabit Industrial Outdoor Poe Switch For Ip Video Surveillance
Introduction of Industrial Fiber Switch

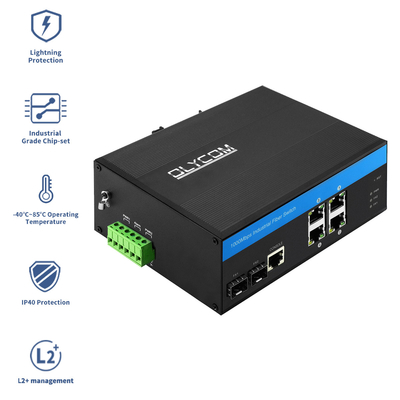

IM-FP244GW series is the 10/100/1000 Mbps SFP Web-Managed Poe Switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial Fiber Switch
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 1000Mbps SFP fiber port
Specification of Industrial Fiber Switch
| Product Name | Sfp Web-Managed Gigabit Industrial Outdoor Poe Switch (2F+4TP) |
| Model No. | IM-FP244GW |
| Port |
2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network,fiber |

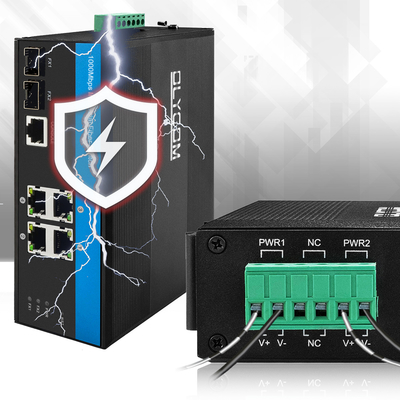

| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |

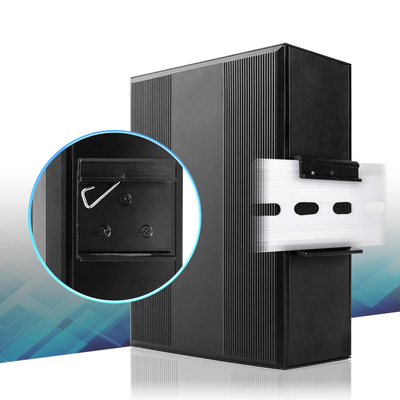

Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | 3 years |
Application Of Industrial Fiber Switch
Package Of Industrial Fiber Switch
1. One product, one console cable, one user manual, and one warranty card are inside one box.
2. Twenty pieces of boxes are in one carton.
FAQ Of Industrial Fiber Switch
Q1.Can we get a sample?
Yes, but we need to charge for samples.
Q2.Can you offer a better price? Any discount?
Yes, price is not a problem, more quantity more attractive price.
Q3.Do you have MOQ?
No, OLYCOM provides good OEM/OEM service to our customers.
Q4.OEM, ODM Service is available?
Yes, OLYCOM provides good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-5 works days, bulk order, 7-30 work days after getting deposit.
Q7.What is your warranty period?
Industrial Product: The warranty period is 3 years
This warranty does not cover damage caused by man-made damage, improper care, negligence, normal wear tear, and force majeure such as natural disasters, earthquakes, fires, etc.
