8 Port 240W Din-rail Unmanaged POE Switch
Introduction
IM-WS088GE series is the 10/100/1000Mbps Din PoE Ethernet switch featuring below
operating temperature -40℃ to +75℃
support wide voltage dual power input
FCC and CE-compliant
IP40 protection degree and EMC tested

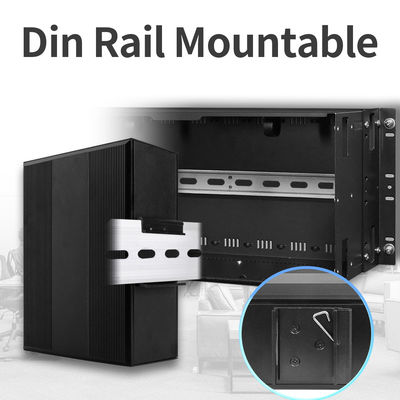

DIN rail installation
The reliable industrial-grade design could ensure continuous and stable operation of the automation system.
Key Features
Specification
| Product Name | 10/100/1000Mbps Industrial Ethernet POE Switch(6TP) |
| Model No. | IM-WS088GE |
| Port | 8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:16Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply |
POE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~8) PoE output voltage: 48V |
| Environment |
Working temperature: -40～75°C Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail/Wall mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Application

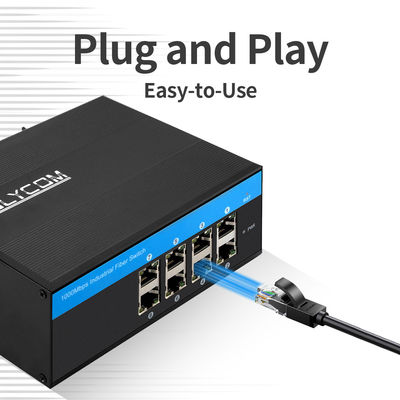

More Product Pictures
Packing List
The standard packing box size is 25.3*20.8*8cm containing a piece 8 port din rail POE switch, a piece user manual and a piece warranty card.
Power supply is not included, need to purchased individually.
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
