8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated

1Pcs
MOQ
Negotiable
Price
8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Industrial PoE Switch 8 Port
Dimension: 158*115*60mm
Weight: 0.75Kg Net Weight
Voltage: DC48V~DC52V
Rate: 10/100/1000Mbps
Logo: OEM Or Neutral
Highlight:

240W Unmanaged Media Converter

,

8 Port Unmanaged Media Converter

,

POE Gigabit Industrial Media Converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-WP088GE
Document: OLYCOM Industrial Networkin...25.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.9KG/pcs
Delivery Time: 4~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 500Pcs per week
Product Description

8 Port 240W Din-rail Unmanaged PoE Switch



Introduction to 8 Port PoE Switch



IM-WS088GE series is the 10/100/1000Mbps Din PoE Ethernet switch featuring below

  • operating temperature -40℃ to +75℃

  • support wide voltage dual power input

  • FCC and CE-compliant

  • IP40 protection degree and EMC tested

  • DIN rail installation

The reliable industrial-grade design could ensure continuous and stable operation of the automation system.



Key Features of Unmanaged Gigabit Switch

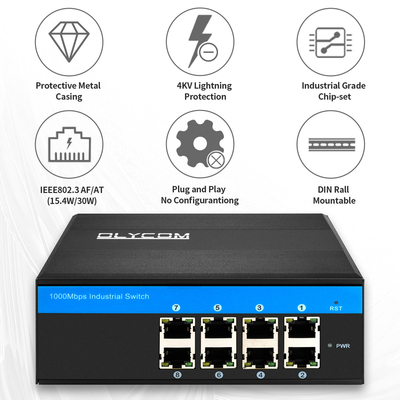

  1. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  2. A store-and-forward switching mechanism
  3. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  4. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  5. 6KV Ethernet surge protection, adapts to a harsh outdoor environment
  6. Support Auto MDI/MDIX



Specification of Industrial Network Switch



Product Name 10/100/1000Mbps Industrial Ethernet POE Switch(6TP)
Model No. IM-WS088GE
Port 8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth:16Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W

PoE output voltage: 48V
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

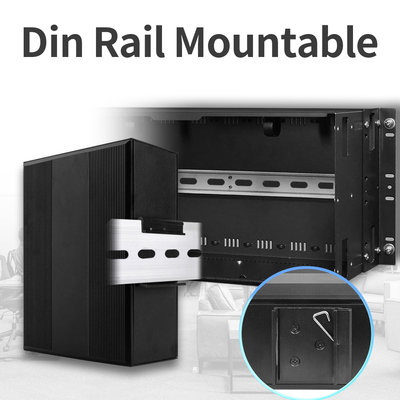

Mounting method: Din-rail/Wall mounting
Warranty Replacement within 1 year; 3 years repairing



Application of CCTV PoE Switch



8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated 0

8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated 1

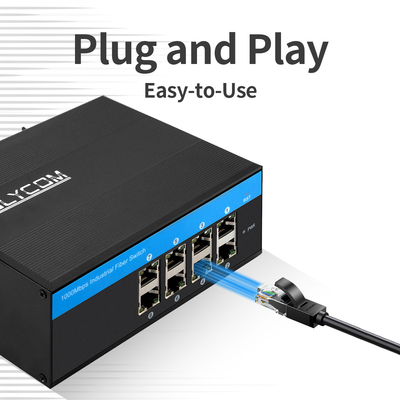

More Product Pictures



8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated 2



Packing List



The standard packing box size is 25.3*20.8*8cm containing a piece 8 port din rail POE switch, a piece user manual and a piece warranty card.

Power supply is not included, need to purchased individually.



8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated 3



FAQ



1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



8 Port PoE Ethernet Switch Industrial Unmanaged Network 120W/240W DC48V IP40 Rated 4
