Gigabit Ethernet Industrial Unmanaged POE Switch
Introduction
IM-WS066GE series is the 10/100/1000Mbps industrial Ethernet switch featuring below
-
operating temperature -40℃ to + 75 ℃
-
support wide voltage dual power input
-
IP40 protection degree and EMC tested
-

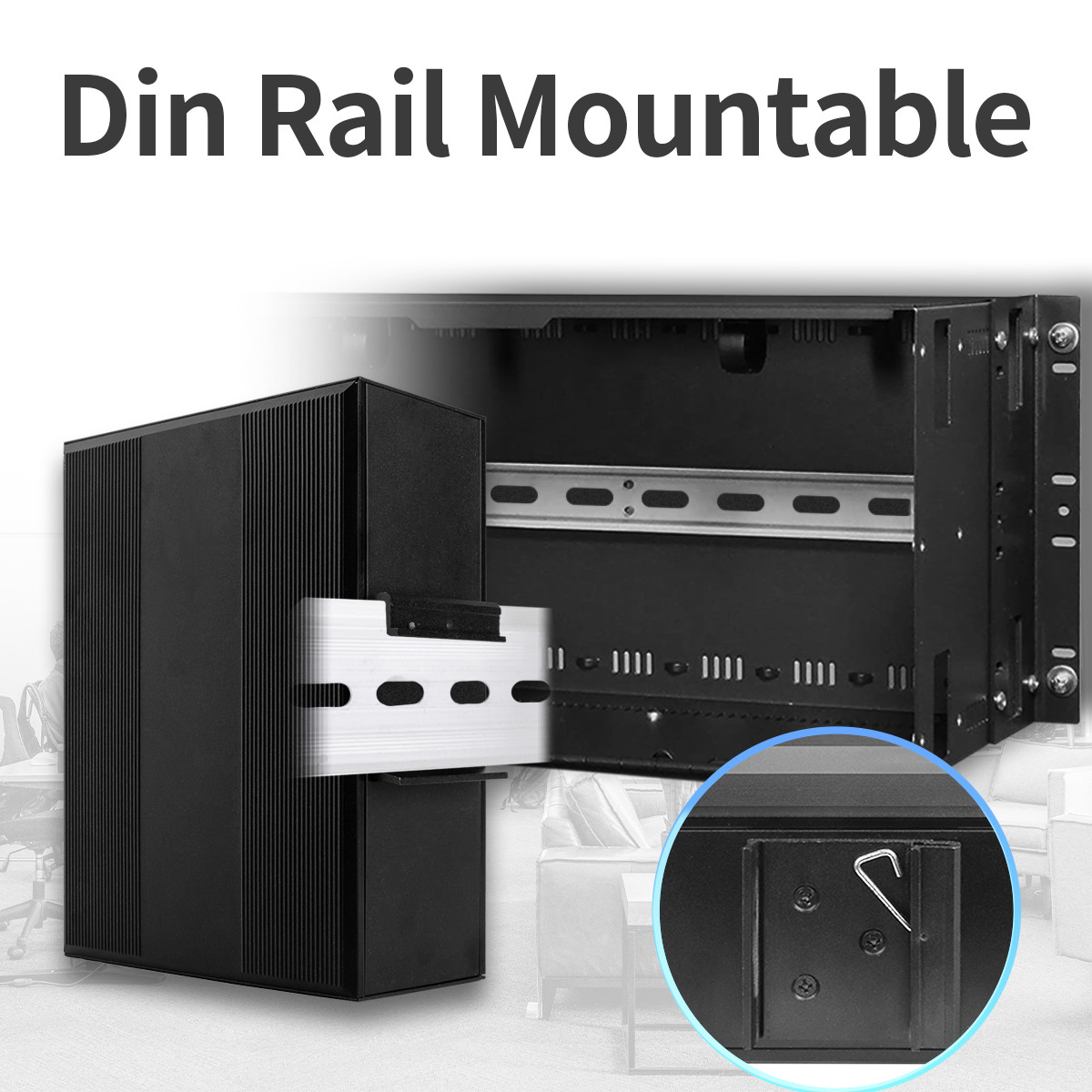

DIN rail installation
-
FCC and CE compliant
The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features

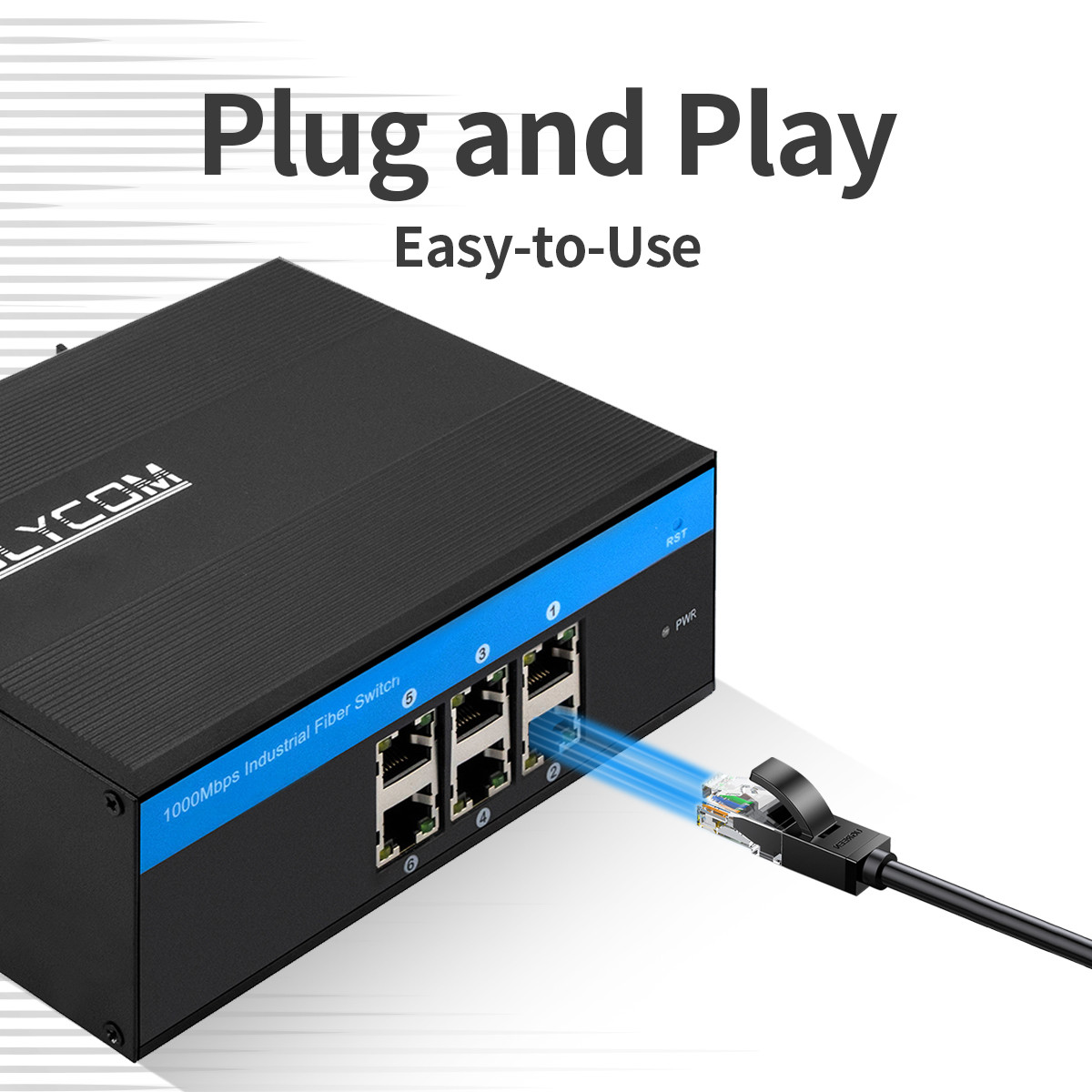

- 6 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
Specification
| Product Name |
10/100/1000Mbps Industrial POE Ethernet Switch(6TP) |
| Model No. |
IM-WS066GE |
| Port |
6 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward
System bandwidth:12Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network |
| Power supply |

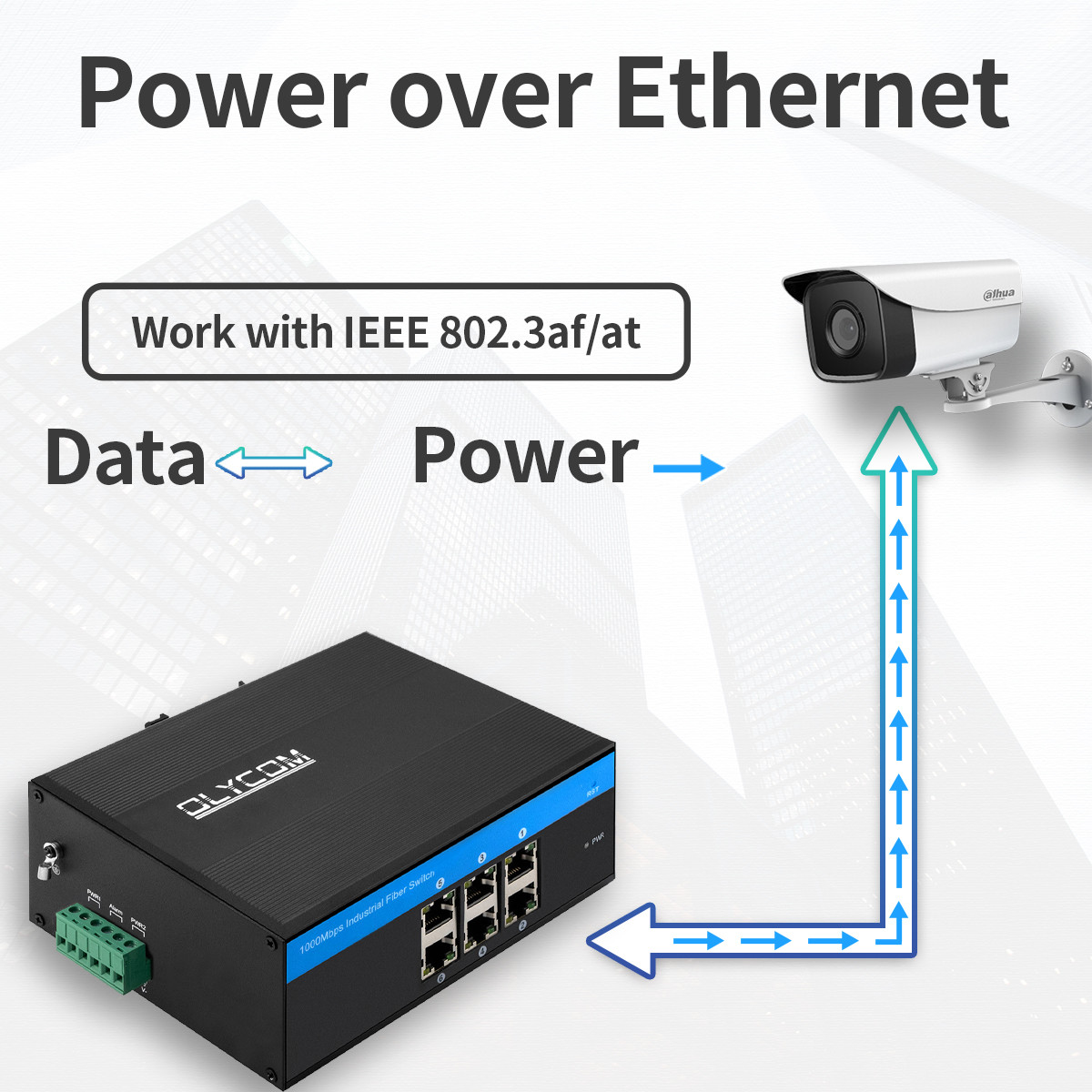

POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~6)
Total budget: 180W
PoE output voltage: 48V
No-load power: 5W
Reverse connection: support
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm
Mounting method: Din-rail/Wall mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Application
FAQ
- What if I have OEM requirements
A: We support it, please contact us and share your idea. When all is done, we will send your order by FedEx/TNT/DHL.
- What is your competitive advantage
Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS/TNT.
Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces
- Please tell me something about your company
A: We are a 20-year-old manufacturer with production lines, thus it is easy to control leadtime and customize.
