Home /Products/Industrial Unmanaged POE Switch/Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE

Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE

1pc
MOQ
Negotiable
Price
Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 4 Port Industrial PoE Gigabit Switch
Fiber: 2*100M/1G SFP Slots
Ethernet: 4*10/100/1000Mbps RJ45/PoE
PoE Budget: 60W/120W
PoE Distance: 100-meter
Chip: Realtek
Highlight:

Hardened Industrial POE Switch

,

2 SFP Port Industrial POE Switch

,

IP40 Gigabit POE Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP244GE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: T/T, PayPal
Supply Ability: 2000 pieces per month
Product Description

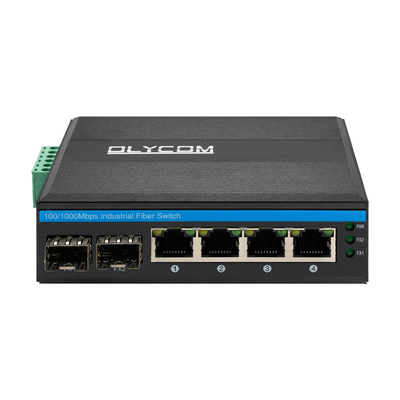

Olycom 4 Port Gigabit Industrial Fiber PoE Switch



Key Features of Fiber Optic Switch



  • Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
  • 2x100/1000Mbps Auto-sensing SFP fiber ports
  • 4x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 4 ports
  • Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment

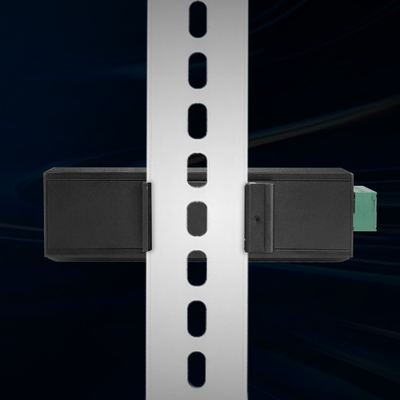

  • DIN rail or Wall installation
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • Operating environment temperature: -40°C～75°C



Technical Data of Industrial Network Switch



Product Name 10/100/1000Mbps Industrial PoE Fiber Switch(2F+4TP)
Model No. IM-FP244GE
Port

2x100/1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 12Gbps (non-traffic jam)

Forwarding rate: 17.856Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1, FX2

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps
Power Consumption Full loading without PoE≤5W
Power Supply

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V

Reverse connection: support
PoE Wiring 1/2 (V+), 3/6 (V-)



Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014



Packing and After-sales Service of Industrial PoE Switch



1* 4 Port Gigabit Fiber POE Switch(WITHOUT power adapter and SFP Transceiver)

1* Product Manual

1* Warranty Card with 3 years warranty



Shipping box information

Product size: 11.4*9.3*3.5cm

Inner box size: 23*16.5*5.8cm

Product weight: 0.35Kg

Packing weight: 0.45Kg



Master box size: 67*33*47cm

Packing quantity: 40Pcs

Packing weight: 20Kg



Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE 0



Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE 1



Industrial Optical Module
OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX(1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V2.5A AC220V to DC48V2.5A, -40℃～70℃
IM-DAC220/DC48V5A AC220V to DC48V5A, -40℃～70℃
IM-DAC220/DC48V10A AC220V to DC48V10A, -40℃～70℃



FAQ of Industrial PoE Switch



Q: Is this the standard POE?

A: Yes, we support IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports



Q: What is the warranty time?

A: One year for HD video optical converter, normal switch, fiber media converter, network booster. Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.



Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.



Q: How do you guarantee the quality?

A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment



Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE 2
Hardened 4 Port PoE Switch Industrial Gigabit Network With 2 SFP Port Fanless Metal Case CE 3
