Name: 20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FS120GE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 20KM Industrial Gigabit Fiber Switch

Fiber: 1*100M/1G SFP Slot

Copper: 1*10/100/1000M Auto-sensing Speed

Feature: Non-PoE, Unmanaged

Customization: Support

Chip: Realtek

Highlight:

RJ45 Gigabit Fiber Switch

LC Connector Gigabit Fiber Switch

20KM Industrial Network Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, FCC, RoHS

Model Number: IM-FS120GE

Document: OLYCOM Industrial Networkin...24.pdf

Payment & Shipping Terms

Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.

Delivery Time: 3-5 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000 pieces per month

Gallery

20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40

Product Description

DIN Rail SFP Fiber Gigabit Ethernet Switch Unmanaged

Key Features of Gigabit Fiber Switch

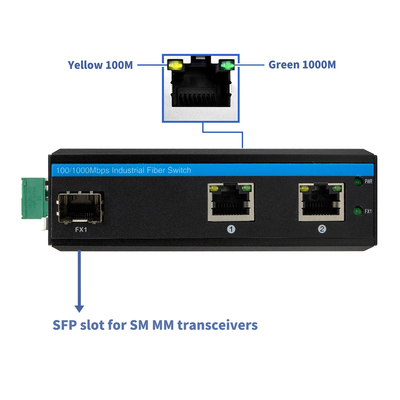

2 x 10/100/1000Mbps Auto-sensing RJ45 ports
1x 155Mbps/1.25G SFP LC Port
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Backpressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism

Specification of Network Switch Unmanaged

Product Name	10/100/1000Mbps Industrial Fiber Switch(1F+2TP)
Model No.	IM-FS120GE
Port	1x100/1000M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX)
Switching Features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 6Gbps (non-traffic jam) Forwarding rate: 8.928Mmps MAC: 4K Packet buffer size: 1.75Mb
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, Fiber, Network, PoE PWR: Power Fiber: FX1 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected) Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps
Power Consumption	Full loading≤5W
Power Supply	Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V Reverse connection: support
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 1149335mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty	3 years, lifetime technical support

20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40 0

Packing Information

1pc switch
1pc user manual

Remark

Accessories(optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us

Shipping box information

Product size: 11.4*9.3*3.5cm

Inner box size: 23*16.5*5.8cm

Product weight: 0.35Kg

Packing weight: 0.45Kg

Master box size: 67*33*47cm

Packing quantity: 40Pcs

Packing weight: 20Kg

20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40 1

Industrial Optical Module
OSPL1E06D-85	100BASE-FX(850nm)
OSPL1E06D	100BASE-FX
OSPL1E20D	100BASE-LX
OSPL1E40D	100BASE-EX
OSBL1E20D-35	100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53	100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D	1000BASE-SX
OSPL1G06D	1000BASE-SX(1310nm)
OSPL1G20D	1000BASE-LX
OSPL1G40D	1000BASE-EX
OSBL1G20D-35	1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53	1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC12V1.67A	AC220V to DC12V1.67A, -30℃～70℃
IM-DAC220/DC24V1A	AC220V to DC24V1A, -30℃～70℃
IM-DAC220/DC48V1.6A	AC220V to DC48V1.6A, -30℃～70℃
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, -40℃～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, -40℃～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, -40℃～70℃


20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40 2

20KM 2 Port Industrial Fiber Switch Gigabit Network SFP Fiber Unmanaged CE IP40 3
