Home /Products/Industrial Network Switch/Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input

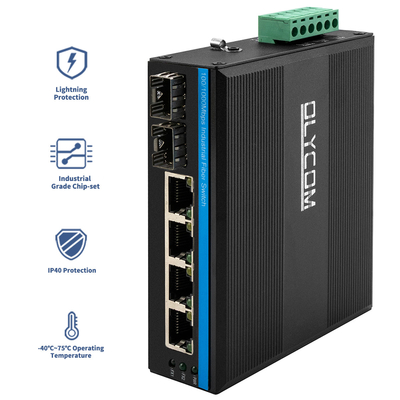

Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input

1Pcs
MOQ
Negotiable
Price
Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gigabit Industrial Switch Unmanaged
Copper Speed: 10M/100M/1000M
Fiber Speed: 100/1000M SFP Slot
Port: 6
Voltage: DC12V 24V
Key Features: 6KV Ethernet Surge Protection
Highlight:

12V Industrial Network Switch

,

SFP Slots Industrial Network Switch

,

Gigabit Din Rail Ethernet Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-FS240GE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.45Kg/carton
Delivery Time: 3~8 working days
Payment Terms: L/C, T/T
Supply Ability: 3000Pcs per month
Product Description

Gigabit Unmanaged Ethernet Din-rail Network Switch



Basic Information of Gigabit Fiber Switch



Model name: IM-FS240GE

Rate: 10/100/1000Mbps

Category: Industrial Fiber Switch Unmanaged



  • -40 ℃ to + 75 ℃

  • Dual power input

  • IP40 safety class

  • DIN rail installation

  • FCC CE EMC compliant

  • Mini size



Key Features of DIN Ethernet Switch



  1. 2 x 100/1000Mbps SFP fiber ports
  2. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  3. Support Auto MDI/MDIX
  4. 6KV Ethernet surge protection
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. A store-and-forward switching mechanism
  7. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input 0



Specification of Industrial Gigabit Switch



Product Name 10/100/1000Mbps Industrial Fiber Switch (2F+4TP)
Model No. IM-FS240GE
Port

2 x 100/1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm, 40~120Km

MM:1310nm, 2Km

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:storage and forward

System bandwidth:12Gbps (non-traffic jam)

Packet Forwarding Rate:8.928Mpps

MAC:4K

Queue Buffer:1.75M
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber

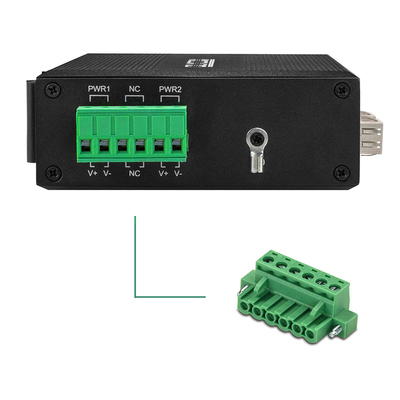

Power supply

Input voltage: DC12-52V

No-load power:5W

Reverse connection:support
Environment

Working temperature:-40°～75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014



Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method :Din-rail mounting

Weight: 0.35kg
Warranty Replacement within 1 year; 3 years repairing



Application of 6-Port Industrial Switch



Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input 1



FAQ



1. I am not sure about some switch functions, what should I do?

Answer: Please let us know and we provide lifetime technical support.



2. What if I have OEM requirements

Answer: It is usually about customized packing box, logo printing, label content...

Please share your idea and we will work on it.



3. How will you handle my requirements?

Answer: We are a manufacturer and it is easy to cater to different requirements, please let us know your needs and we will check.

When all is done, we will send your order by FedEx/TNT/DHL and AWB number for tracking.



More Product Photos



Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input 2

Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input 3

Industrial Network Switch 6 Port 100M/1000M Fiber Unmaaged Din Rail 12V 24V Input 4
