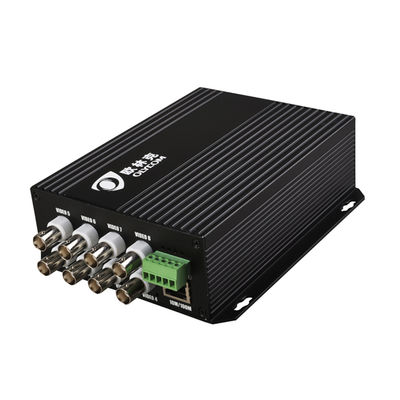

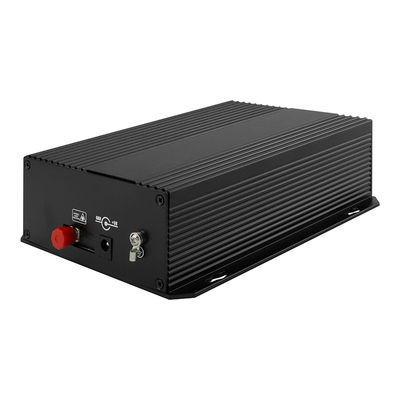

8 Port Analog Video rs232 rs485 data fiber transmitter receiver
Introduction
Optical video media converter is designed to extend the coaxial limit of 500 meters and get CCTV signals for long distance on fiber optic cable.
CCTV signals usually comes in video, audio, data, telephone, contact closure and Ethernet.
This rack mount analog video to fiber converter can also transmit RS232 or RS485 data and 10/100M Ethernet.
- Low optical link loss – max 30dB
- Without EMI, RFI and ground loop
- High quantification level of 8BIT
- Hot plug-and-play with switch power supply
-
Robust metal case
This video data fiber optic to coaxial converter is usually used in medical and environmental CCTV projects.
Specification
| Video |
| Bandwidth |
8MHZ |
| Compatible Systems |
NTSC/PAL/SECAM |
| Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain |
< ±1% |
| Differential Phase |
< ±1 |
| S/N ratio |
>60dB(weighting)(8 bit) |
| Interface |
BNC |
| Data |
| Data Protocol |
RS232, RS422, RS485, Manchester, BIPHASE data |
| Bandwidth |
0~300kbps |
| Error rate |
10-9 |
| Interface |
Phoenix terminal |
| Ethernet |
| Work Mode |
Full duplex / half duplex, auto-sensing |
| Network Speed |
10/100Mbps, autosensing |
| Interface |
RJ45 |
| Optical |
| Wavelength |
1310nm/1550nm |
| Output Power |
-8~3dBm |
| Optic Fiber |
Single mode (9/125um) 20Km to 80Km
Multimode (50/125um) 1Km, ( 62.5/125um) 500m
|
| Receiving Sensitivity |
-30dBm |
| Interface |
FC |
| Chassis and Cards |
| Chassis Slots Quantity |
18 slots |
| Compatibility(with cards) |
8ch cards(9pcs) |
| Flexibility |
Supports mixed installation of different configurations |
| Cards |
8ch PCB size (153x100x25mm)
configurations which require larger size can’t be used with this system
|
| Electrical. Environmental. Mechanical |
| Operating Voltage |
Standalone:220VAC to 5V/12VDC
Rack: dual 220V/-48V AC, card: powered by chassis
|
| Operating Temperature |
-35℃～+75℃ |
| Storage Temperature |
-45℃～+85℃ |
| Humidity |
0~95% non-condensing |
| Dimension And Weight |
Standalone and card: depends on different configurations
Chassis: 19”3U
|
Application
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Safe city monitoring system
Ordering Options
| OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R |
1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure |
| OM610-2D↑↓4A↑↓1E WT/R |
4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet |
| OM610-1V↑1D↑↓3A↑2K↑↓WT/R |
1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure |
| OM610-4V↑2D↓2A↑1E 1P2K↑WT/R |
4ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet + 1ch Telephone + 2ch Contact Closure Tx |
