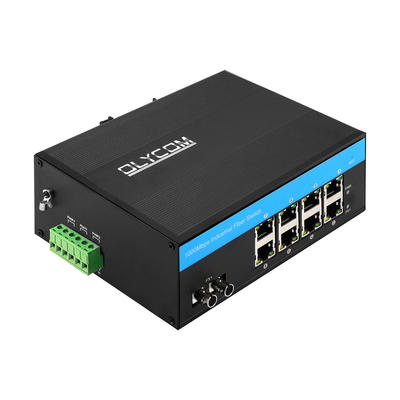

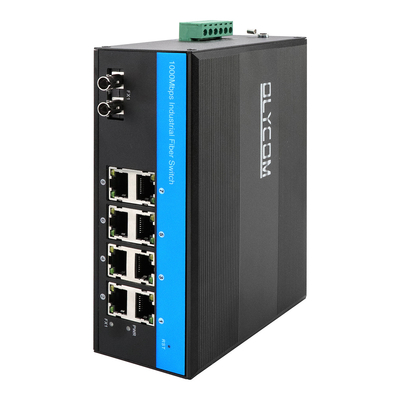

8 Port Industrial Optical Fiber Gigabit Unmanaged Switch
Basic Information of Gigabyte Network Switch
- 1x1000Mbps ST Duplex optical fiber, Singlemode or Multimode
- 8x10/100/1000Mbps Auto-sensing RJ45
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- DIN rail or Wall installation
- Comply with FCC and CE standards
- A store-and-forward switching mechanism
- Operating environment temperature: -40°C～75°C
It is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of 8 Port Fiber Switch
| Product Name |
10/100/1000Mbps Industrial Fiber Switch(1F+8TP) |
| Model No. |
IM-FS180GE |
| Port |
1 x 1000Mpbs ST port
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 18Gbps (non-traffic jam)
Forwarding rate: 13.392Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On:PoE is working
Off:PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On:transmission speed is 1000Mbps
Blinking: in transmission
Off:Disconnected or working speed is 10/100Mbps
|
| Power Consumption |
Full loading without PoE≤5W |
| Power Supply |
Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V
Reverse connection: support
|
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm

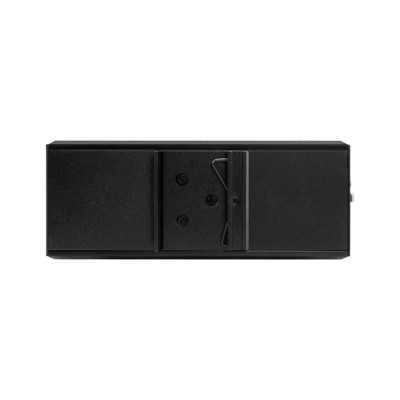

Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Packing List of Hardened Ethernet Switch
User Manual *1 pc
8 Port Industrial Fiber Switch *1 pc
Warranty Card *1 pc
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 15.8*11.5*6cm
Inner box size: 25.3*20.8*8cm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 55.5*40*41cm
Packing quantity: 20Pcs
Packing weight: 20Kg
Power Supply
| IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
| IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
