Outdoor 2.5G Managed Fiber Switch Industrial Gigabit Ethernet 8 Port ERPS Ring Manageable

8 Port Din Rail Outdoor Managed Fiber Switch

Introduction to Managed Gigabit Switch

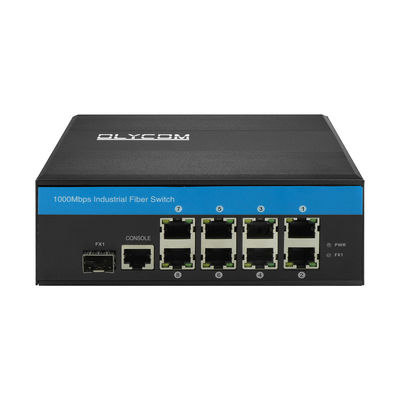

IM-FS180GW Rugged Managed Ethernet Switch is the 10/100/1000 Mbps industrial fiber switch featuring

• 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 100/1000/2500Mbps SFP fiber port
• 6KV Ethernet surge protection, adapt to a harsh outdoor environment
• Meet IP40 protection degree and EMC industrial grade requirements
• DIN rail or Wall installations
• Comply with FCC and CE standards
• Operating environment temperature: -40°C～75°C

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of 2.5G Managed Switch

Web GUI and Features

• Support cable diagnosis and can locate the fault point
• Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
• Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
• Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
• Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
• Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
• Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
• Support IGMP agent report, MLD snooping
• Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
• Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
• Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
• Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
• Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL

Please contact us for web manual or CLI manual

Application

Q&A of Olycom Fiber Switch

1, What chip is it based?

Olycom: Vitesse

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes

For LAN ports, they are 10/100/1000M auto-sensing

For Fiber ports, please configure 100Mbps speed via Web GUI or CLI

4, Do you do SKD/CKD?

A: Yes

As a factory, we have dealt with this many times.
