HD 3G SDI Video Digital Optical Converter With Bidi RS485 10/100M Ethernet 20km DC5V

1 pair
MOQ
Negotiable
Price
HD 3G SDI Video Digital Optical Converter With Bidi RS485 10/100M Ethernet 20km DC5V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: HD-SDI Video Data Ethernet Fiber Converter
Dimension: 179mm*130.5mm*50 Mm
Distance: 20km
Power Supply: DC5V2A
Data: Bidirectional RS485
Ethernet Rate: 10/100Mbps
Highlight:

1ch video digital optical converter

,

rs485 video digital optical converter

,

20km video to fiber optic converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-1D1EHDSDIWT/R
Document: video converter series.pdf
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 1kg(G.W)
Delivery Time: 4~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 300 pairs/month
Product Description

3G SDI video RS485 data 10/100M Ethernet fiber optic converter



Introduction



  1. Video Ethernet data over fiber optic transmitter receiver, also referred to as video media converter, RS485 data Ethernet to fiber converter, digital SDI video optical converter, extends HD-SDI video signals for long distance up to 40km.
  2. This HD-SDI video fiber optic extender automatically recognizes and transmits SDI, HD-SDI signals, with embedded audio and metadata.
  3. Besides, this SDI video Ethernet optical extender is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards, and ideally suited for use in digital signage, broadcast, staging, and HD CCTV applications



Key Features



  • Input equalization and re-clocking on buffered outputs
  • Real-time status LED indicators
  • Robust metal casing
  • Lightning-proof solution
  • Low optical link loss – max 30dB
  • Without EMI, RFI and ground loop
  • Bi-di transmission on 1 fiber with WDM
  • Available in standalone and 3U rack systems



Specification



Optical
Wavelength 1310nm/1550nm
Fiber Type and Distance multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km
Transmitting Power -5dBm to -10dBm
Receiving Sensitivity -26dBm to -30dBm
Return Loss > 14dB
Jitter < 0.2UI
Interface SC
Video
Signal type HD-SDI and SDI video signals
Gain Unity
Resolution 8 or 10 bits, automatic
Data rates 270 Mbps, 1.485 Gbps
Operation standards SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
Auto data rate lock Yes



Video Input - Transmitter
Number/signal type 2 single link SDI or HD-SDI video 1 for Tx, 1 for local preview
Interface 2 female BNC
Impedance 750ohms
Data rates 19 Mbps to 1.485 Gbps
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss ≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz
Input cable equalization Automatic for up to -30 dB of cable loss



Video Output - Receiver
Number/signal type 2 single link SDI or HD-SDI video 1 for Rx, 1 for backup / share
Interface 2 female BNC
Impedance 750ohms
Re-clocking Automatic for 270 Mbps, 1.485 Gbps or bypassed for unrecognized rates
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss <-25 dB @ 100 MHz



Data
Data Protocol RS485, Manchester, BIPHASE data
Bandwidth 0~300kbps
Error rate 10-9
Interface Phoenix terminal



Ethernet
Work Mode Full duplex / half duplex, autosensing
Network Speed 10/100Mbps, autosensing
Interface RJ45



Electrical. Environmental. Mechanical
Operating Voltage

Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC

Card: powered by chassis
Operating Temperature -35℃～+75℃
Storage Temperature -45℃～+85℃
Humidity 0~95% non-condensing
Dimension And Weight

Standalone and card: depends on different configurations

Chassis: 19”3U



Application



  • City traffic monitoring system
  • Military monitoring (frontier defense, national defense)
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Building and campus monitoring system

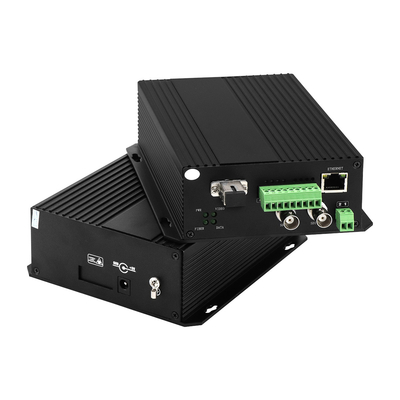

HD 3G SDI Video Digital Optical Converter With Bidi RS485 10/100M Ethernet 20km DC5V 0



Ordering Details



OM610-4P2D↓WT/R 4ch Telephone+ 2ch RS485 data Rx
OM610-4V↑1D↓4E WT/R 4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet
OM610-4V↑1D↓4PWT/R 4ch video Tx + 1ch RS485 data Rx + 4ch Telephone
OM610-4V↑12D↓WT/R 4ch video Tx + 12ch RS485 data Rx
OM610-2D↓8PWT/R 2ch RS485 data Rx + 8ch Telephone
OM610-20D↓WT/R 20ch RS485 data Rx
OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R 1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure
OM610-2D↑↓4A↑↓1E WT/R 4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet
OM610-1V↑1D↑↓3A↑2K↑↓WT/R 1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure



More Product Images

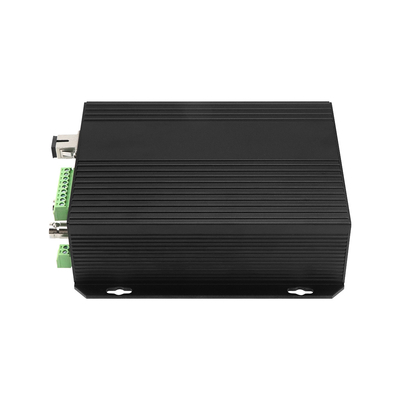

HD 3G SDI Video Digital Optical Converter With Bidi RS485 10/100M Ethernet 20km DC5V 1

HD 3G SDI Video Digital Optical Converter With Bidi RS485 10/100M Ethernet 20km DC5V 2
