SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC

1pc
MOQ
Negotiable
Price
SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Unmanaged Media Converter
Fiber: 1*100M/1G SFP Slot
Ethernet: 1*10/100/1000M
Wavelength: 850nm/1310nm/1550nm
Installation: DIN-rail Or Wall Mounting
Input Power: Dual 12-52VDC
Customization: Yes
Chipset: Realtek
Highlight:

1000m industrial fiber media converter

,

dinrail mounting industrial fiber media converter

,

100m fiber optic media converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-MC110GE/LC
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000 pieces per month
Product Description

DIN Rail 10/100/1000M SFP Fiber Media Converter



Introduction to Unmanaged Media Converter



IM-MC110GE series is the 10/100/1000 Mbps industrial fiber media converter featuring

  • operating temperature -40℃ to + 75℃
  • support wide voltage dual power input
  • meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail installation
  • pass through dangerous environmental certification and comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Specification of Gigabit Ethernet Optic Converter



Product Name 10/100/1000Mbps Industrial Media Converter(1F+1TP)
Model No. IM-MC110GE
Port

1x100/1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 4Gbps (non-traffic jam)

Forwarding rate: 5.952Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps
Power Supply

Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V

Reverse connection: support
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years, lifetime technical support

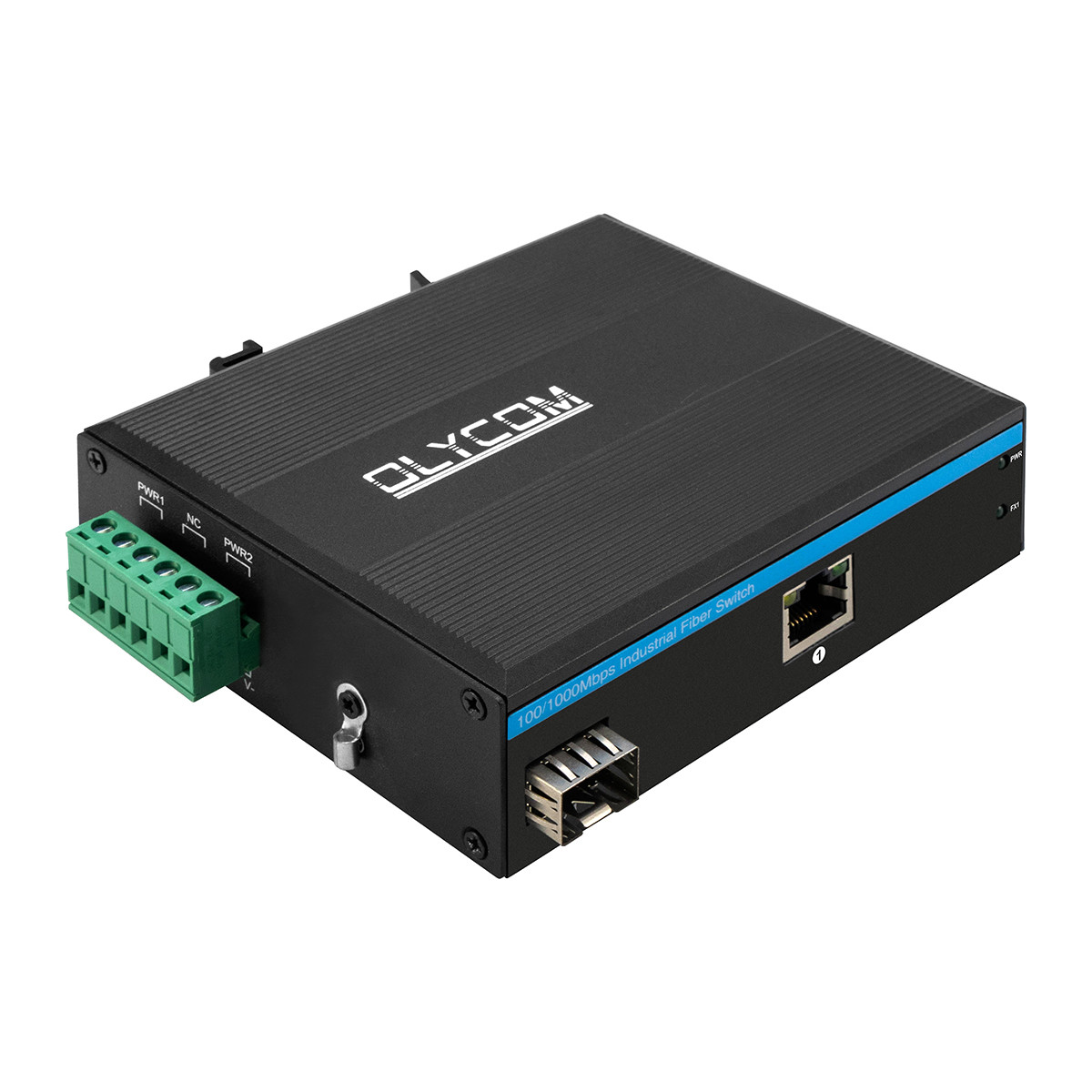

SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC 0



Quality Control



  1. All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
  2. Every production process has a special person to test to ensure quality
  3. Every product must be tested before shipping to our customers.
  4. The quality is attached to great importance during the whole production process.
  5. All products have passed CE, FCC, ROHS, and other certifications



FAQ of Media Converter



Q: How is the after-sales service?

A: 3 Years Manufacturer Warranty (Excluding contrived damage or misusage).

If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace.

The buyer should be responsible for all the charges of returning and second shipping.



Q: Are you a manufacturer or a trading company?

A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipment products.

We insist on R&D, with over 20-years of professional experience in the area.



Application



SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC 1



Photos

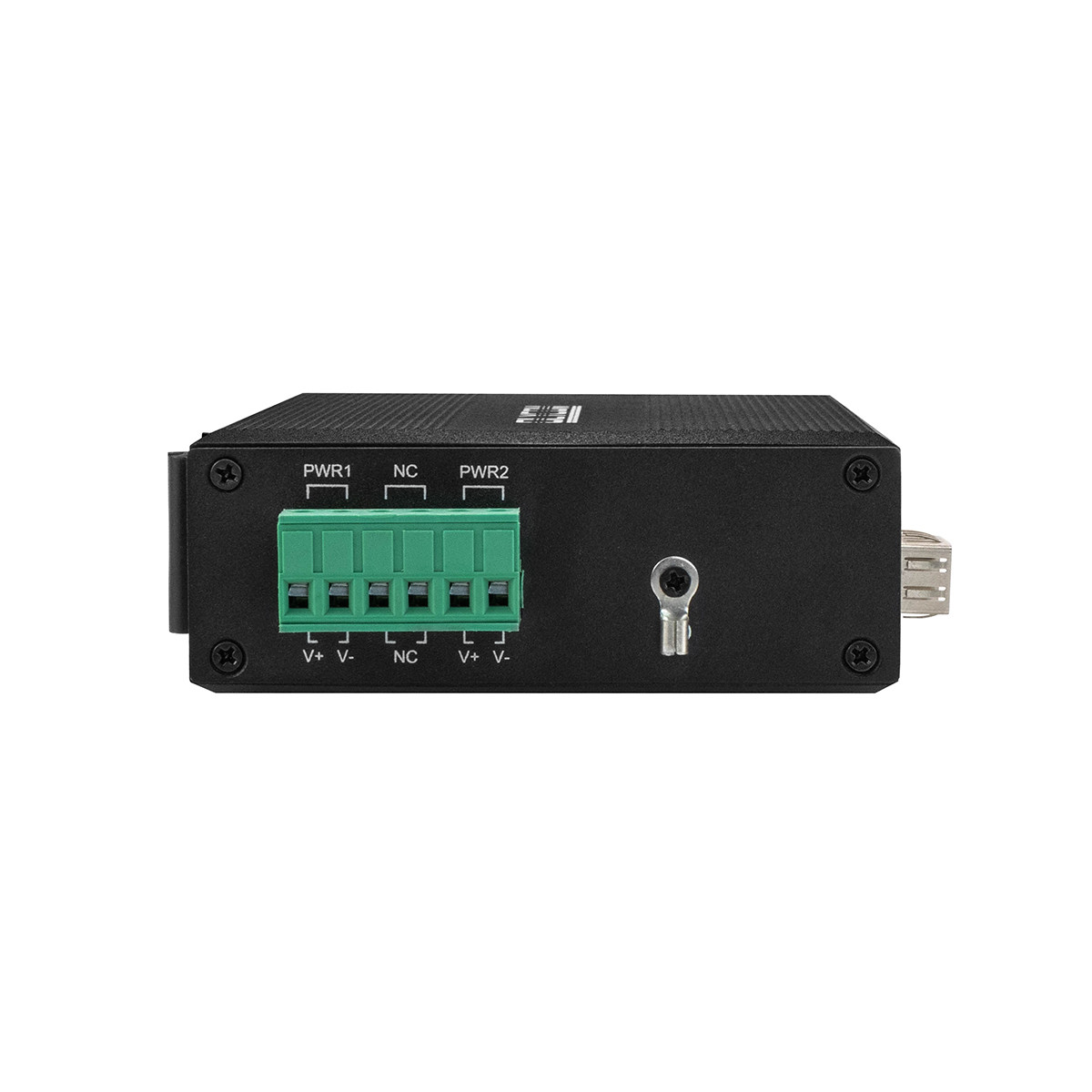

SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC 2

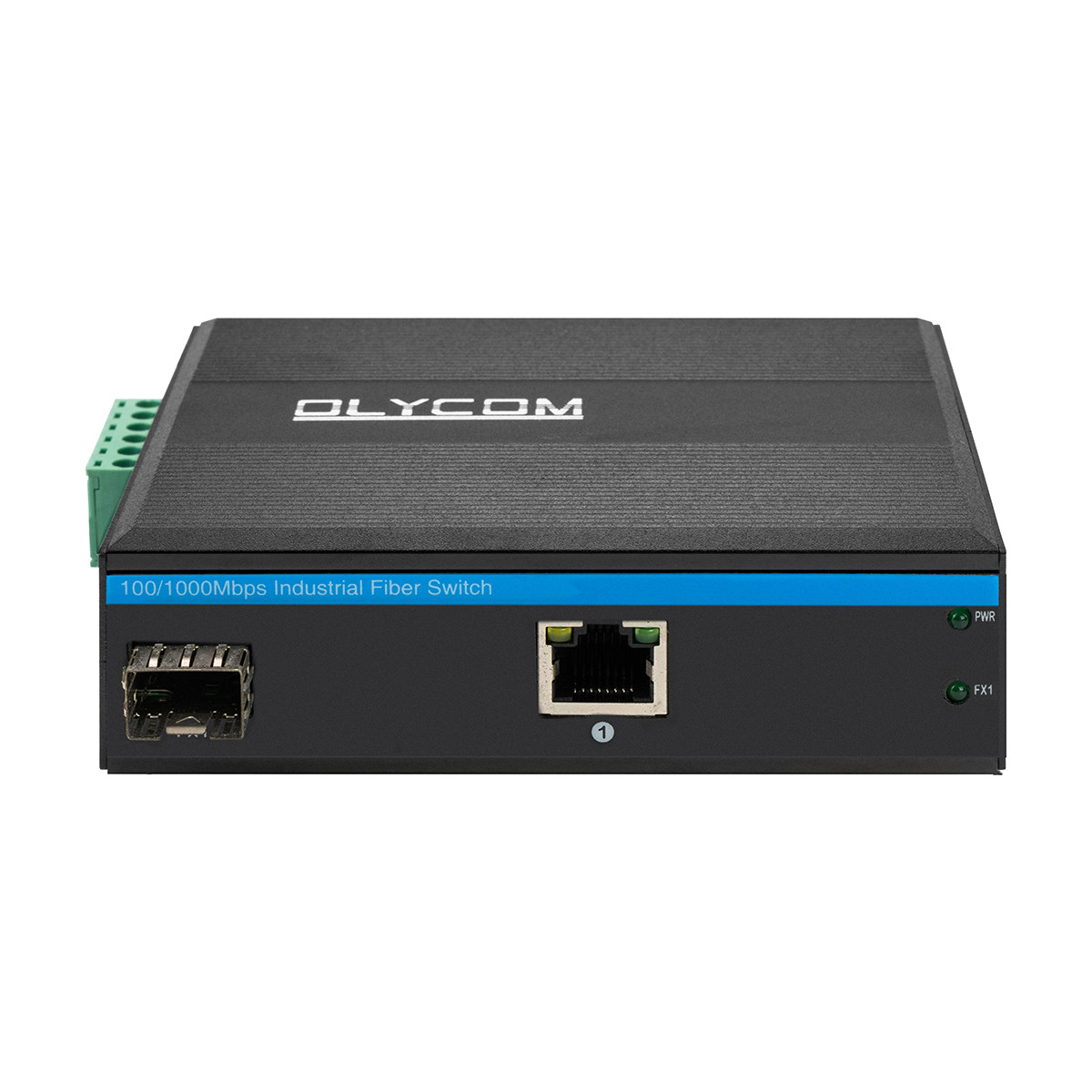

SFP Gigabit Industrial Fiber Media Converter Unmanaged Rugged Network Mini CE FCC 3
