1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter

1 pair
MOQ
Negotiable
Price
1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: SDI Video Media Converter
Speed: 1.485 Gbps
Connector: SC/FC/ST
Wavelength: 1310nm/1550nm
Highlight:

SDI Video To Fiber Optic Converter

,

12V Video To Fiber Optic Converter

,

1080P FHD Video To Fiber Converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-HDSDIWT/R
Document: video converter series.pdf
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 0.7kg(G.W)
Delivery Time: 4~7 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pairs/month
Product Description
HD SDI Video Fiber Optic Converter

Introduction


OLYCOM OM615-HDSDIWT/R sdi to fiber optic converter offers long-range transmission up to 40km, this fiber optic video transmitter automatically recognizes and transmits SDI, HD-SDI signals and is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards.



  1. Extends SDI, HD-SDI signals to very long distances over a single fiber via SFP fiber transceiver
  2. Input equalization and re-clocking on buffered outputs
  3. Hot-Swappable
  4. Redundant output for previewing on a local monitor
  5. Real-time status LED indicators

Specification

Optical
Wavelength 1310nm/1550nm
Fiber Type and Distance

Multimode (50/125um)5Km, (62.5/125um) 2Km

Single mode (9/125um) 20Km / 40Km
Transmitting Power -5dBm to -10dBm
Receiving Sensitivity -26dBm to -30dBm
Return Loss > 14dB
Jitter < 0.2UI
Interface LC
Video
Signal type HD-SDI, SDI digital video signals
Gain Unity
Resolution 8 or 10 bits, automatic
Data rates 270 Mbps, 1.485 Gbps
Operation standards SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
Auto data rate lock Yes



Video Input - Transmitter
Number/signal type 2 single link SDI, HD-SDI digital component video 1 for Tx, 1 for local preview
Interface 2 female BNC
Impedance 750ohms
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss ≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz
Input cable equalization Automatic for up to -30 dB of cable loss
Video Output - Receiver
Number/signal type 2 single link SDI, HD-SDI digital component video 1 for Rx, 1 for backup / share
Interface 2 female BNC
Impedance 750ohms
Re-clocking Automatic for 270 Mbps, 1.485 Gbps or bypassed for unrecognized rates
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss <-25 dB @ 100 MHz



Electrical. Environmental. Mechanical
Voltage DC12V1A
Power Consumption 12W
Operating Temperature -35℃～＋75℃
Storage Temperature -40℃～85℃
Humidity 5～95% non-condensing
Dimension 117 mm L x 80 mm W x 22 mm
Weight 0.35KG per piece
EMI/RFI FCC Part 15 Class A, EU EMC indication
MTBF >100000 hours



Application



This video optical converter transmitter favored in government, military, and medical environments for use in digital signage, broadcast, staging, and HD CCTV applications.



  • ​Television Studio
  • Live Broadcast
  • HD CCTV

1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter 0



Ordering Options



OM615-HDSDIWT/R-LC20 HD-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI video and embedded signals, with HD video SFP, single mode, LC connector, 20Km



OM615-HDSDIWT/R-LC40

 HD-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI video and embedded signals, with HD video SFP, single mode, LC connector, 40Km



Product Photos

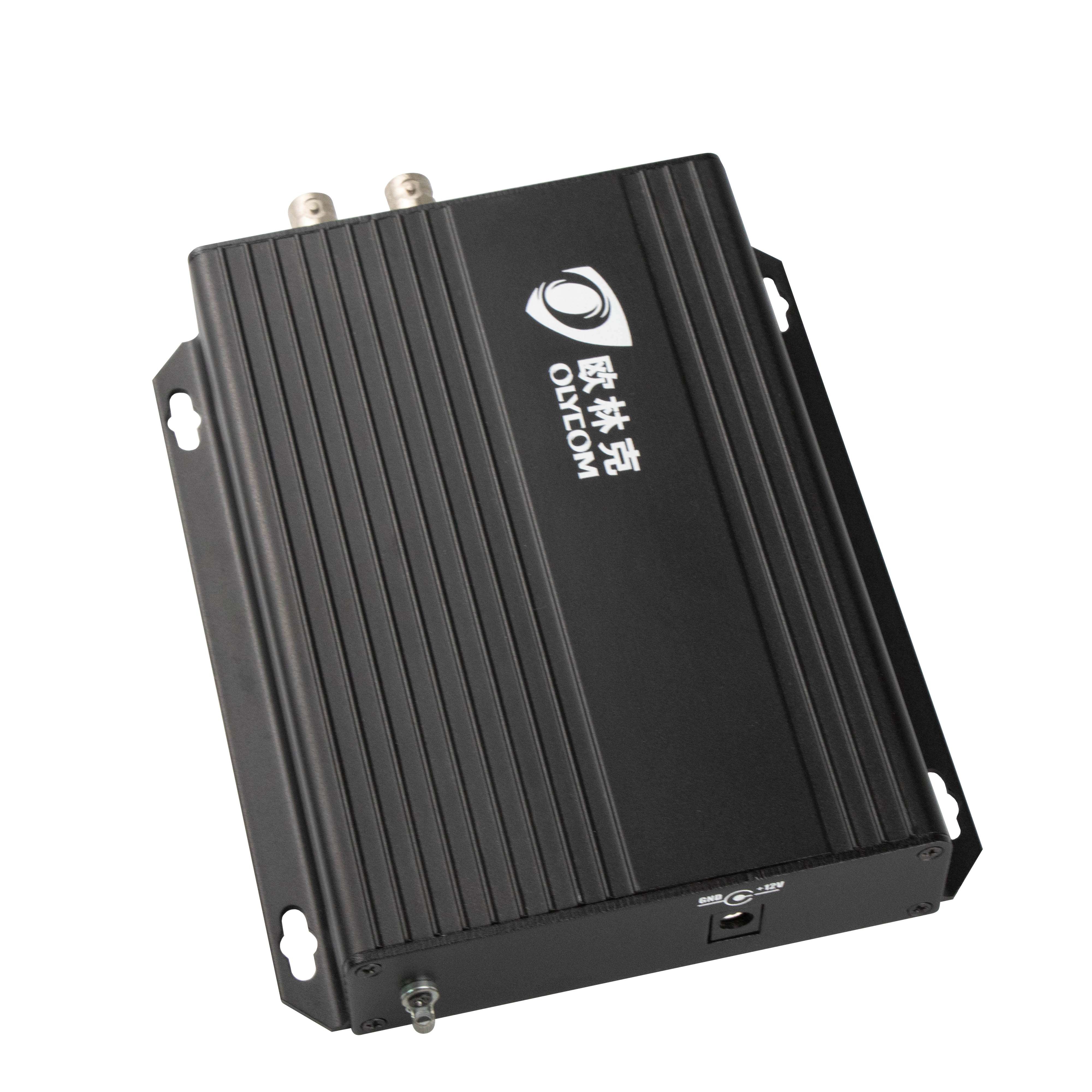

1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter 1

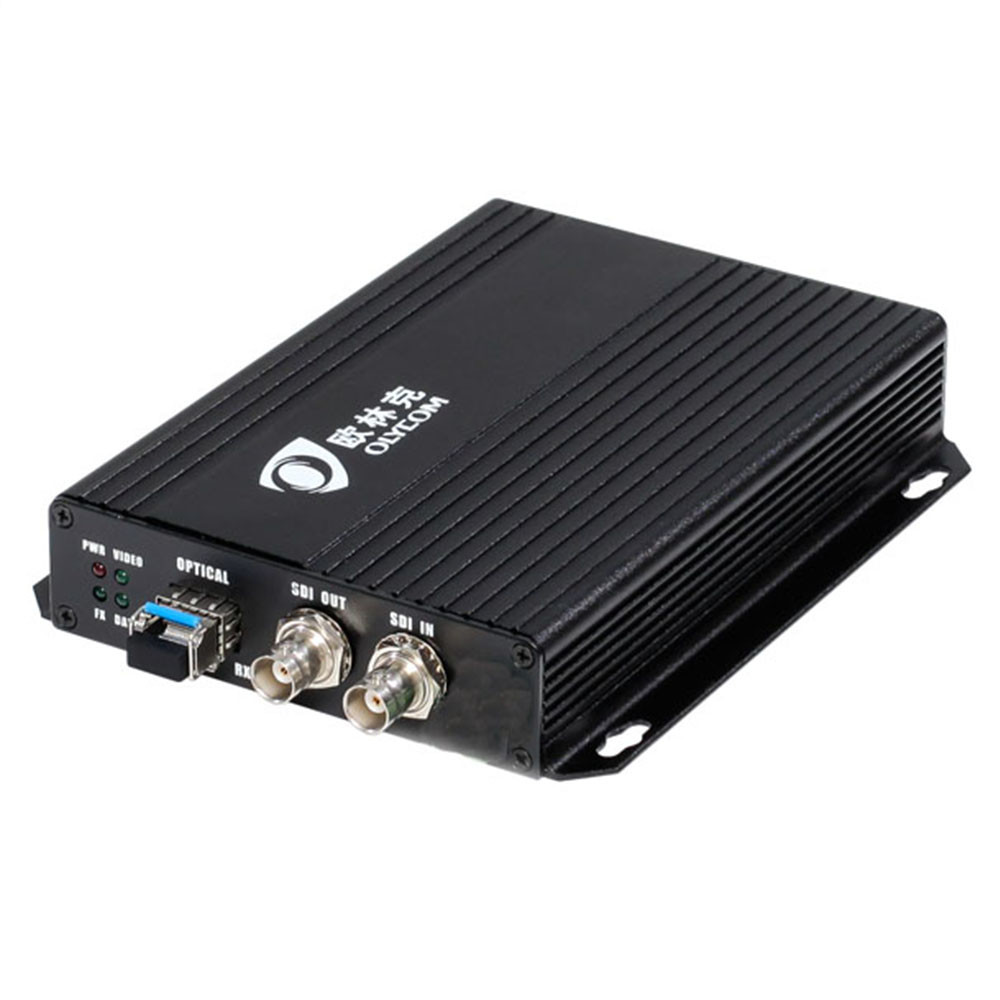

1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter 2

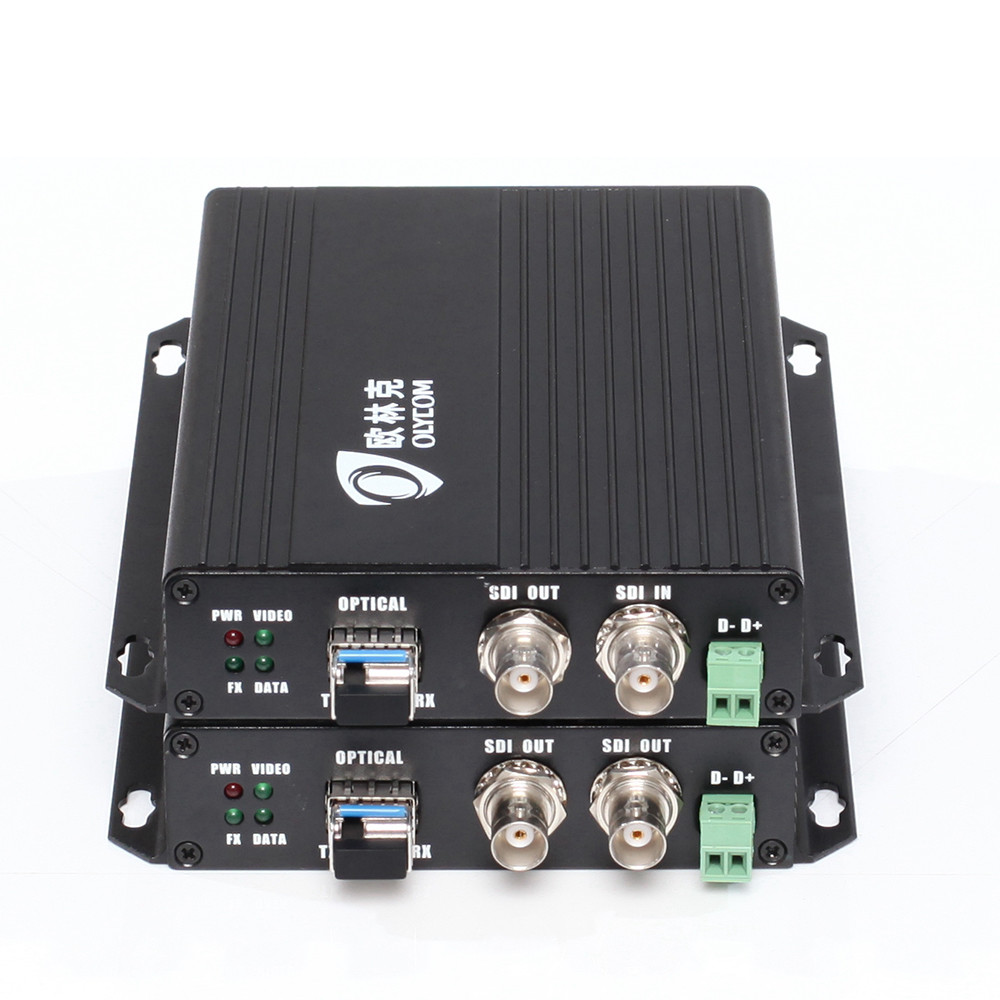

1080P SDI Fiber Extender Singlemode 20km Local Loopout 12V HD Optical Converter 3
