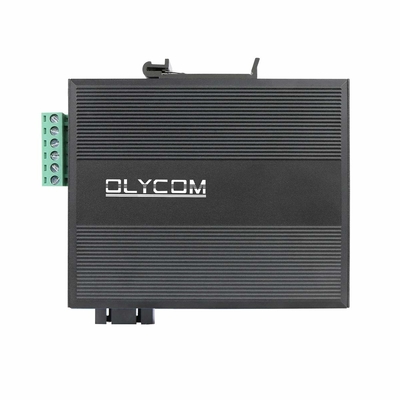

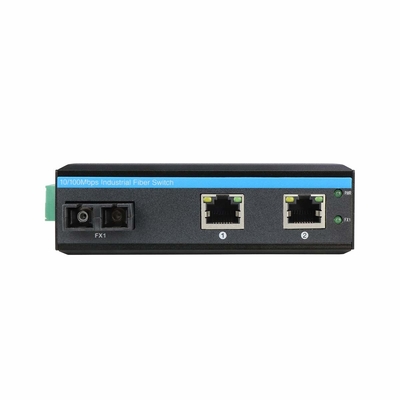

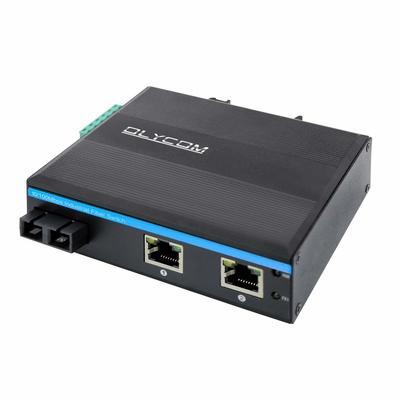

Outdoor Din Rail 3 Port Industrial Gigabit Switch Hub
Key Features of Industrial Fiber Switch
-
2 x 10/100/1000Mbps Auto-sensing RJ45 ports
-
1 x 1000Mbps SC dual fiber port, 20KM, Singlemode
-
6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
-
DIN rail or Wall installation
- Comply with FCC and CE standards
- A store-and-forward switching mechanism
- Operating environment temperature: -40°C～75°C
With above features, it is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of Gigabit Switch Unmanaged
| Product Name |
10/100/1000Mbps Industrial Fiber Switch(1F+2TP) |
| Model No. |
IM-FS120GE |
| Port |
2x1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 6Gbps (non-traffic jam)
Forwarding rate: 8.928Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power Consumption |
Full loading≤5W |
| Power Supply |
Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V
Reverse connection: support
|
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |

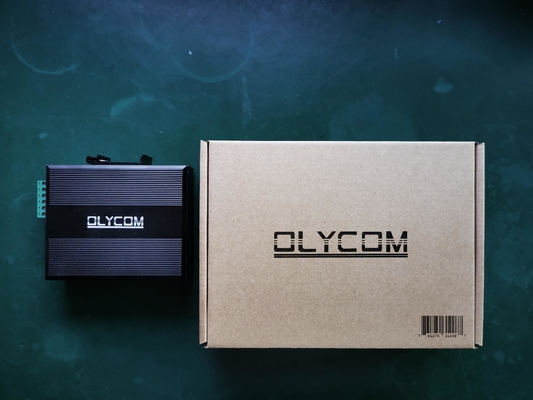

Packing List
- 1pc switch
- 1pc user manual
Remark
Accessories(power supply, patchcord, network cable etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Application of Fiber Optic Switch
FAQ
1, What chip is it based?
Olycom: Realtek
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
4. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
