Industrial PoE Media Converter 15.4W 30W Unmanaged Fast Ethernet DIN Rail CE Mini Size

Din Rail 10/100M Ethernet PoE Fiber Media Converter

Introduction to PoE Media Converter

• IM-PC111FE is the 10/100 Mbps industrial PoE fiber media converter featuring
• comply with IEEE802.3af/at
• power on POE IP cameras through the Ethernet cable
• simple construction
• power range up to 100 meters
• operating temperature -40℃ to + 75℃
• meet IP40 protection degree and EMC industrial grade requirements
• DIN rail installation
• pass through dangerous environmental certification and comply with FCC and CE standards
• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
• IEEE 802.3af/at power on to 1 RJ45 port
• 1 x 10/100Mbps Auto-sensing RJ45 port
• 1 x 100Mbps SFP fiber port
• 6KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• Max power to15.4W under af standard, 30W under at standard to each PoE port
• Detect the PoE models of electrical equipment.
• The switching mechanism support store-and-forward

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of Fiber Optic Ethernet Converter

Application of Unmanaged Media Converter

Packing List

• One PoE Media Converter
• One product manual
• One warranty card

Warranty & Guarantee

• All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
• 3 years Manufacturer Warranty (Excluding contrived damage or misusage). All the products have been passed the functional test and aging test before delivery.
• If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.

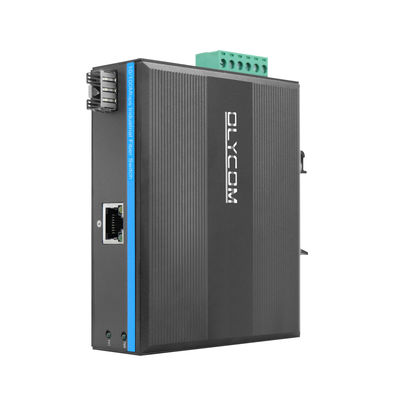

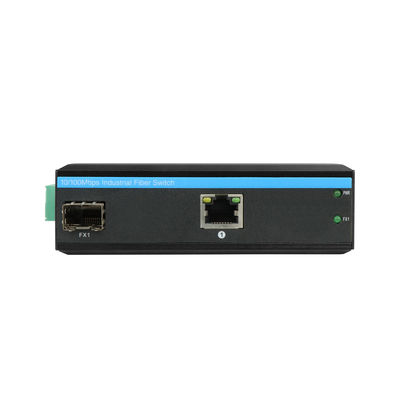

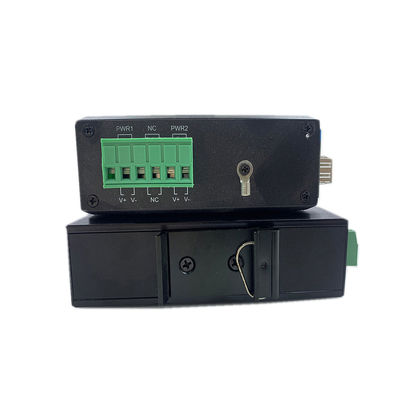

Photos
