10/100M POE Fiber To Ethernet PSE Optic Media Converter
Introduction
Olycom 10/100M POE copper to fiber media converter helps
Network managers can install Powered Devices (PD) anywhere around the LAN or enterprise campus by using multi-mode or single-mode fiber optic cabling
Key Features
Specification
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 50/125um(5km), 62.5/125um MMF (2km), 9/125um SMF (20/40/60/80/100/120km) |
| Conversion Mode Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | 48VDC/1A external power supply |
| Power Consumption | <2.5W |
| PoE Pin Assignment | 1/2 (V+),3/6 (V-) |
| PoE Output | -48V, 0.54A, 25W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operation Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~85℃ |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions and Weight |
135mm(L) x 90mm(W) x 28mm(H) Net weight: 0.3kg Gross weight: 0.5kg |
Ordering Information
| TA240-PSE-FE/M2-SC | PSE/PoE fiber media converter, 10/100Mbps, single port, 220VAC in -48VDC out, 25W, MMF, dual fiber, 1310nm, 2Km, SC |
| TA240-PSE-FE/S20-SC | PSE/PoE fiber media converter, 10/100Mbps, single port, 220VAC in -48VDC out, 25W, SMF, dual fiber, 1310nm, 20Km, SC |
| TA540-PSE-FE/S20-SC | PSE/PoE fiber media converter, 10/100Mbps, single port, 220VAC in -48VDC out, 25W, SMF, single fiber, 1310nm / 1550nm, 20Km, SC |
Above listed are the most frequently ordered items. Please contact us for other configurations.
Applicaition

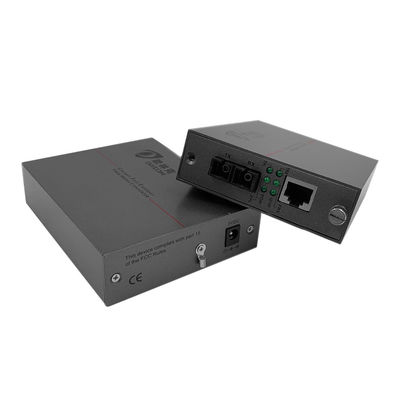

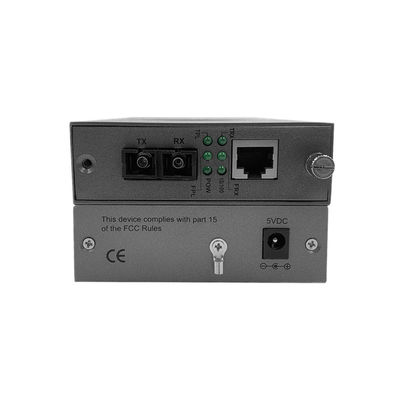

Product Images
FAQ
Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
Do you have any certification?
Yes, our company is ISO9001 certified.
We have CE/FCC/RoHS/E-mark/CCC certificates for our models.
What does the label look like?
There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.
It is available in different languages and contents, so you can add your logo or model name in it.
Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
