16 Slots 19 Inch 2U Chassis For Fiber Optic Media Converter Card Yellow Dual Power
Product Introduction
Features
Technical Parameters
| Slots | 16 slots |
|
Compatibility (with cards) |
OM220 series Megabit/Fast Ethernet media converter cards |
| OM320 series Gigabit Ethernet media converter cards | |
| OM520 series WDM media converter cards | |
| OMX30 series SFP media converter cards | |
| Supports mixed installation | |
|
10/100BASET /10/100/1000BASE-T(cards) |
STP or UTP Category 5/5e/6 cable(Max. 100m) |
|
100BASE-FX /1000 BASE-FX (cards) |
50/125um, 62.5/125um multimode fiber cable (550m) 9-125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion Mode / Delay Time (cards) | Store-and –Forward ＜10us, straight-through＜0.9us |
| Flow control (cards) | Full duplex-flow control, Half duplex –back pressure |
| MTBF(both) | 50,000 hours |
| RJ-45 Port | Auto-MDI/MDIX(cards) |
| Fiber Connector | SC standard, SF/TC optional(cards) |
| Wavelength | 1310nm/1550nm (cards) |
| Dimensions |
1 slot of OM1916 rack (cards) 485mm(L)×320mm(W)×90mm(H) (rack) |
| Weight | G.W: 0.112kg (cards), G.W: 6.400kg (rack) |
| Power Consumption | <2.5W (card and rack) |
| BER | <1/109 (cards) |
| Operating temperature | -10℃～+75℃ (rack) |
| Storage temperature | -45℃～+85℃ |
| Humidity | 5%~90% non-condensing (both) |
| MAC Address Table | 1K(cards) |
| Buffer Size | 1M(cards) |
Application
| Item Number Code | ||
| OM1916 | 19 | 16 |
| 19” 2U | 16 slots | |
| 220V | Dual internal 220V power supply | |
| 48V | Dual internal 48V power supply | |
| 220V/48V | Internal 1 x 220V power supply + 1 x 48V power supply | |
| FE | 10/100Mbps auto sensing | |
| GE | 10/100/1000Mbps auto sensing | |
| OM220 | Megabit/Fast Ethernet media converter cards | |
| OM320 | Gigabit Ethernet media converter cards | |
| OM520 | WDM media converter cards | |
| OMX30 | SFP media converter cards | |
| M,S | M-Multi-mode, S-Single mode | |
| S,U | WDM series, S-1310nm, U-1550nm | |
| FC,ST,SC,LC | Fiber connector type | |
| 2, 20, 40… | Digits next to fiber mode-working distance | |

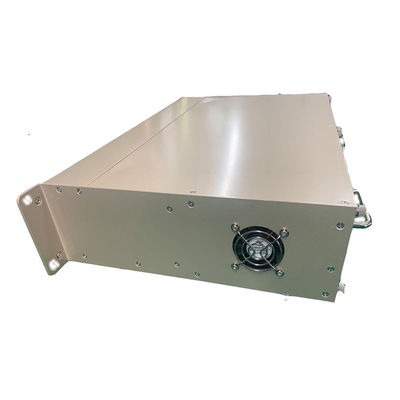

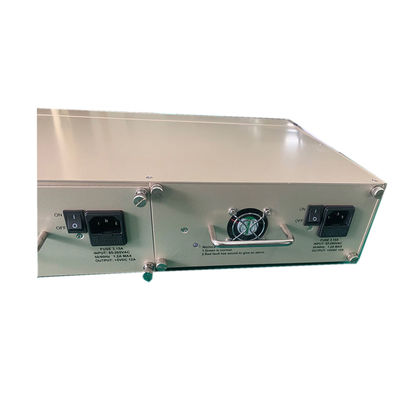

Product Photos
