Home /Products/HDMI DVI Extender/1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE

1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE

1 pair
MOQ
Negotiable
Price
1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: HDMI Video Optical Converter
Fiber Port: SC, ST/FC Optional
Video: Compressed, HDMI 1080P
Warranty: 12 Months
Weight: 0.5kg Per Piece(N.W)
Size: 152.8mm*130mm*28.3mm
Highlight:

12V Input HDMI To Fiber Optic Extender

,

HDMI To Fiber Optic Extender Cascading SC

,

12V Input hdmi fiber extender
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-CH2F-T/R
Document: video converter series.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.63Kg/carton
Delivery Time: 3~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1500 pairs per week
Product Description

HDMI Video To Fiber Optic Extender



Product Overview



  1. OLYCOM HDMI video optical converter compresses and converts 1080P HD video signal to network signals

  2. HDMI to fiber extender could be used in security system, subway / railway advertising, mall advertising and visual media teaching

  3. Support all of the video resolution from 640X480 to 1080P

  4. Cascading, broadcast and other transmission ways are available



Key Features



  • Support reverse control signal from mouse, keyboard and serial port

  • Use MJPEG format, reduce transmission bandwidth, to ensure smooth video playback, good color reproduction and short delay time

  • Support HDMI and other HD video signal interface

  • One to one, one to many, many to one and many to many application mode

  • Standard TCP/IP network protocol, long transmission distance, Strong anti-interference ability



Specification



Video Compress Format

M-JPEG: Compress 1080P@60HZ video signal to 50Mbps

Video Interface

HDMI: Support HDMI1.1/1.2/1.3, HDCP1.1/1.2, Compatible with DVI

Protocol

TCP/IP: Standard TCP/IP network protocol

Transmission Delay

70ms: Direct transmission delay less than 70 ms.

Remote Control

UART,USB: RS232, USB

RJ-45 Port

Auto-MDI/MDIX



F/W

Reset Button

RJ45

Normal network interface, connect with switch or connect transmitter and receiver directly

HDMI/DVI

Transmitter: HD video input port / Receiver: HD video output port

LED

PWR；Video status indicator；Network connection indicator；Fiber indicator



Video Resolution

VES & CEA-861: 640*480, 720*576, 800*600, 1024*600, 1024*768, 1152*864, 1280*600, 1280*720, 1280*768, 1280*800, 1280*960, 1280*1024, 1440*1050, 1440*900, 1600*900, 1660*1200, 1680*1050, 1920*1080

Audio

Digital Audio: 32khz,44.1khz,48khz.

Fiber Port

SC(ST,FC optional)

Consumption

12V1A/2A

Working Temperature

0-70℃

Dimension

152.8mm*130mm*28.3mm



Application



1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE 0



Ordering Information



1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE 1



OM615-CH2FKM-T/R

Compressed HDMI Video Optical Converter, two fiber ports, two USB ports

OM615-CH2F-T/R

Compressed HDMI Video Optical Converter, two fiber ports

OM615-CH2R2F-T/R

Compressed HDMI Video Optical Converter, two RJ45 ports,two fiber ports

OM615-CH1FKM-T/R

Compressed HDMI Video Optical Converter, one fiber ports, two USB ports

OM615-CH1F-T/R

Compressed HDMI Video Optical Converter, one fiber ports



Product Photos

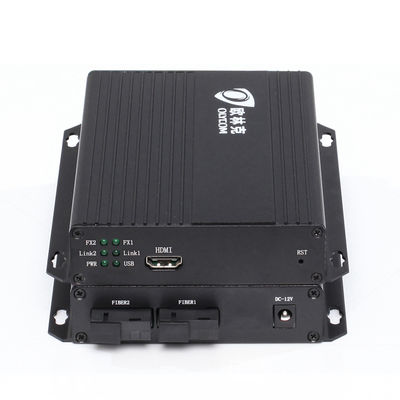

1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE 2

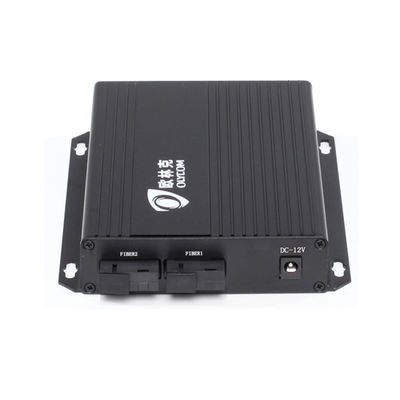

1080P HDMI To Fiber Optic Extender 2 Fiber For Cascading SC ST FC 12V Input CE 3
