Home /Products/HDMI DVI Extender/1080P HDMI Cat6 Extender DC12V CE

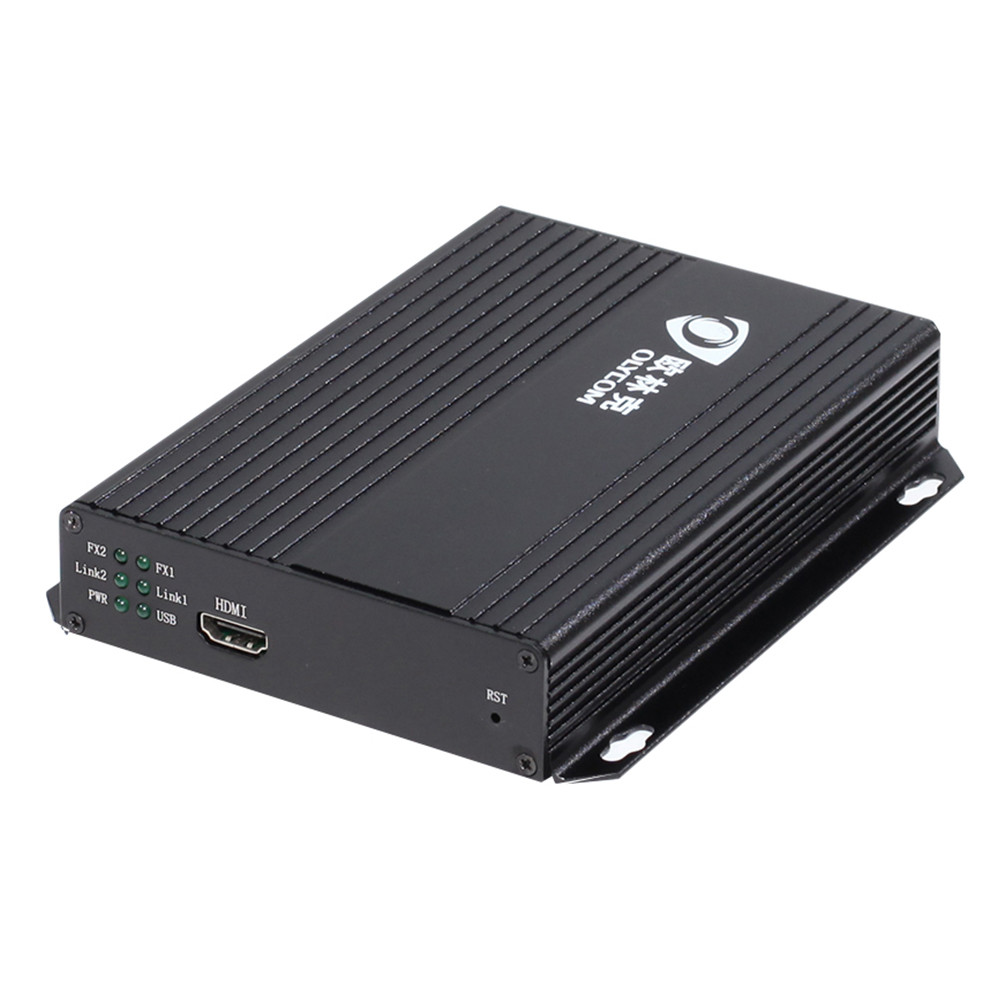

1080P HDMI Cat6 Extender DC12V CE

1 pair
MOQ
Negotiable
Price

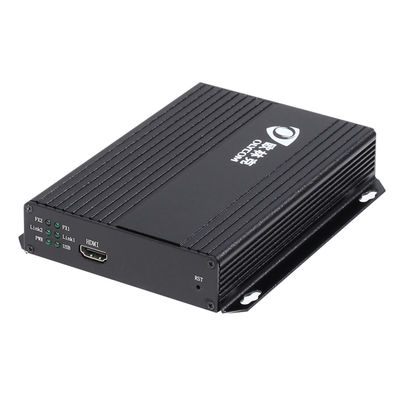

1080P HDMI Cat6 Extender DC12V CE
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Full Hd Video Rj45 Converter
Consumption: 12V1A/2A
Size: 152.8mm*130mm*28.3mm
Working Temp: 0-70℃
Distance: 1 Year
Warranty: 12 Months
Highlight:

12V1A hdmi over ethernet extender

,

HDTV HDPC Hdmi Extender Cat6

,

12V1A Hdmi Extender Cat6
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-CH1RKM-T/R
Document: video converter series.pdf
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 1.2kg(G.W)
Delivery Time: 3~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1200 pairs per week
Product Description

1080P HDMI Over Ethernet Extender

Overview


  1. OLYCOM HDMI extender compresses and converts 1080P HD video signal to network signals

  2. HD video signal could be transmitted long distance by network cable.

  3. HDMI extender could be widely used in security system,digital signage, visual media teaching, digital KVM and other fields.

  4. One to one, one to many, many to one and many to many application mode


Key Features


  • Support HDMI and other HD video signal interface;

  • Support all of the video resolution from 640X480 to 1080P;

  • Cascading, broadcast and other transmission ways are available;

  • Use MJPEG format, reduce transmission bandwidth, to ensure smooth video playback, good color reproduction and short delay time


Specification


Video Compress Format

M-JPEG: Compress 1080P@60HZ video signal to 50Mbps

Video Interface

HDMI: Support HDMI1.1/1.2/1.3, HDCP1.1/1.2, Compatible with DVI

Protocol

TCP/IP: Standard TCP/IP network protocol

Transmission Delay

70ms: Direct transmission delay less than 70 ms.

Remote Control

UART,USB: RS232, USB

RJ-45 Port

Auto-MDI/MDIX

Video Resolution

VES & CEA-861: 640*480, 720*576, 800*600, 1024*600, 1024*768, 1152*864, 1280*600, 1280*720, 1280*768, 1280*800, 1280*960, 1280*1024, 1440*1050, 1440*900, 1600*900, 1660*1200, 1680*1050, 1920*1080

Audio

Digital Audio: 32khz,44.1khz,48khz.

Network Cable

150m: Cat5e and Cat6



Name

Description

DC

12V1A

F/W

Reset Button

RJ45

Normal network interface, connect with switch or connect transmitter and receiver directly

HDMI/DVI

Transmitter: HD video input port / Receiver: HD video output port

LED

PWR；Video status indicator；Network connection indicator；Fiber indicator


Application

1080P HDMI Cat6 Extender DC12V CE 0

1080P HDMI Cat6 Extender DC12V CE 1

Ordering Details


OM615-CH2RKM-T/R

Compressed HDMI Extender, two RJ45 ports, two USB ports

OM615-CH2R-T/R

Compressed HDMI Extender, two RJ45 ports

OM615-CH1RKM-T/R

Compressed HDMI Extender, one RJ45 ports, two USB ports

OM615-CH1R-T/R

Compressed HDMI Extender, one RJ45 port


Product Images

1080P HDMI Cat6 Extender DC12V CE 2

1080P HDMI Cat6 Extender DC12V CE 3
