16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE

1 pair
MOQ
Negotiable
Price
16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: BNC Video Digital Optical Converter
Video: 16ch, Analog Format
Case: 1U Rack Type
Power: AC Input, 220V
Dimension: 485(L)*237(W)*45(H) Mm
Weight: 2.24kg/piece (Net Weight)
Fiber: FC Port, ST/SC Optional
Warranty: 1 Year
Highlight:

80Km Analog Video To Optical Converter

,

FC Port Analog Video To Optical Converter

,

80Km audio video to optical converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM610U-16V↑WT/R
Document: video converter series.pdf
Payment & Shipping Terms

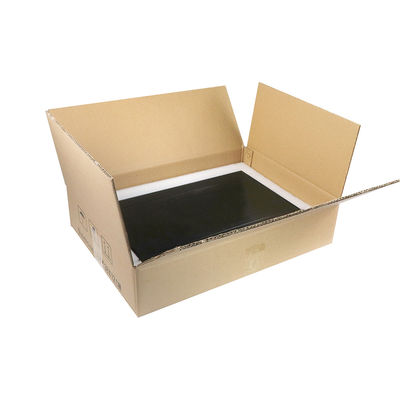

Packaging Details: 1 pair in a carton, 5.58kg(G.W)
Delivery Time: 4~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 500 pairs per month
Product Description

16 Channel Analog Video To Fiber Optic Converter



Introduction



  • OM610U-16V↑WT/Roptical video transmitter and receiver transmit 16ch video signals on optical fiber.
  • On 9/125um Single mode fiber its working distance is 20Km to 80KM
  • On multimode fiber it’s 1Km.



Key Features



  • Bi-di transmission on 1 fiber with WDM
  • High quantification level of 8BIT
  • Hot plug-and-play with switch power supply
  • Available in standalone and cabinet systems
  • Robust metal casings
  • Low optical link loss– max 30dB
  • Lightning-proof solution
  • Without EMI, RFI and ground loop



Specification



Optical
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic fiber

Single mode (9/125um) 20Km

Multimode (50/125um) 1Km, ( 62.5/125um) 500m
Receiving sensitivity -30dBm
Interface FC standard, ST/SC optional



Video
Channel Quantity 16ch, from camera to control center
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain < ±1%
Differential Phase < ±1
S/N Ratio >60dB(weighting)(8 bit)
Interface BNC



Electrical. Environmental. Mechanical
Operating Voltage AC220V
Operating Temperature -20℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 0~95%non-condensing
Dimension 485(L)*237(W)*45(H) mm, 19”1U
Weight 2.24kg/piece (Net Weight), 5.58kg/pair(Gross Weight)



Ordering Details



OM610U-16V↑WT/R-FC20 16ch video Tx, single-mode, single fiber, 20Km, FC connector
OM610U-16V↑MT/R-FC05 16ch video Tx, multi-mode, single fiber, 1Km, FC connector



ItemNumber Code
OM600

OM600-Video Optical Transmitter / Receiver, 610-desk-top standalone, 620-card style

613-miniseries, 615-HD series
V Video
A Audio
D Data
K Alarm (I/O, contact closure)
P Telephone
E Ethernet
M,W M-Multi-mode, W-Single mode
S,U S-1310nm, U-1550nm
T,R T -Transmitter, R-Receiver
FC,ST,SC,LC Fiber connector type
↑,↓, ↑↓ ↑- forward (from TX to RX),↓ - reverse (from RX to TX),↑↓- bidirectional
1,2,3,… Digits ahead of signal-quantity of required channel
05, 20, 40… Digits next to fiber connector-working distance



Application



16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE 0



  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Express way security protection and toll station system
  • Police and safe city monitoring system



Product Images

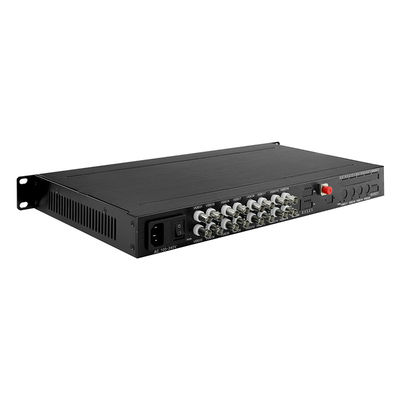

16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE 1

16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE 2

16 Port Analog Video Optical Converter SM/MM FC/ST/SC Ports 1U Rack-Mount CE 3
