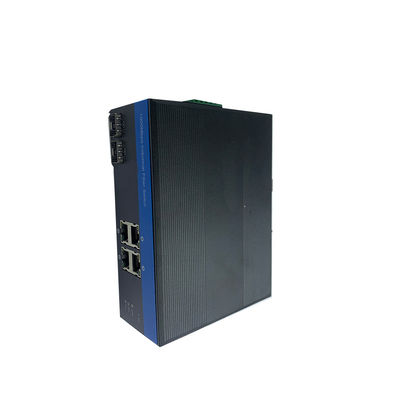

Durable Gigabit Ethernet Switch Poe Powered 4 RJ45 Ports Redundant Power Inputs

1
MOQ
Negotiable
Price
Durable Gigabit Ethernet Switch Poe Powered 4 RJ45 Ports Redundant Power Inputs
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Durable Gigabit Industrial Ethernet POE Switch
Power Pin Assignment: 1/2+;3/6-
Shell: IP40 Protection Grade, Metal Shell
MAC Address Table: 8K
MTBF: 500000 Hours
Installation: Din-Rail Mounting, Wall Mounting
High Light:

Durable Gigabit Ethernet Switch Poe Powered

,

Ethernet Switch Poe Powered 4 RJ45 Ports

,

4 RJ45 Ports power over ethernet switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP244GE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 6000 per month
Product Description

Durable Gigabit Industrial Ethernet POE Switch 4 RJ45 Ports 2 SFP Ports Redundant Power Inputs



Introduction

IM-FP244GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features

  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
  3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  4. 1 x 1000Mbps SFP fiber ports
  5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  6. Support Auto MDI/MDIX
  7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  8. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  9. Max power to15.4W under af standard, 30W under at standard to each PoE port
  10. Detect the PoE models of electrical equipments.
  11. A store-and-forward switching mechanism
  12. Operating temperature:-40 ° ~85 ° c
  13. Storage temperature:-40°~ 85°C

  14. Working humidity:10%~90%,non-condensing

  15. Storage humidity:10%~95%,non-condensing



Industry Standards

  • EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
  • EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
  • Traffic Control: NEMA-TS2
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Rail Traffic: EN 50121-4



Mechanical Information

Shell: Corrugated metal shell
Safety class: IP44
Dimension:158 x 114.8 x 60mm
Mounting method: Din-rail mounting





Specification

Product Name Durable Gigabit Industrial Ethernet POE Switch
Model No. IM-FP244GE
Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety

CE Mark, commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP44

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 5 years repairing



FAQ

Q: Who are we?

A: We are based in Guangdong, China, start from 2003, sell to Western Europe(15.00%),Eastern Europe(15.00%), Southern Europe(10.00%), South America(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%), Northern Europe(5.00%), Mid East(5.00%), Oceania(5.00%), Eastern Asia(5.00%). There are total about 101-200 people in our office.



Q: What can you buy from us?

A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver



Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment; We absolutely never use old and refurbished materials.
